AEMC 6611 – Phase & Motor Rotation Meter

$ 170.00 CAD $ 144.53 CAD Sale

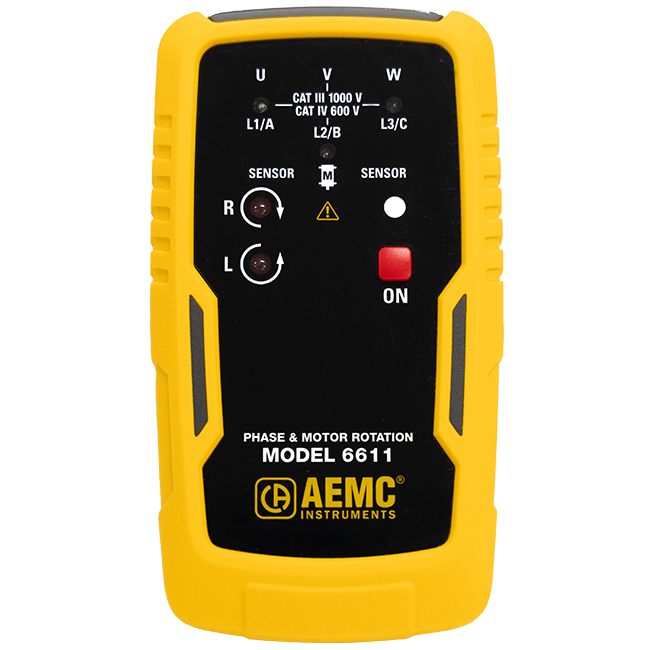

The AEMC 6611 is a compact and rugged instrument designed to identify phase rotation on 3-phase systems and detect live and open/de-energized phases. Ideal for installing rotating machinery or motors, and for checking generator output, this meter ensures proper sequencing for three-phase power systems.

⚙️ Key Features:

  • Phase Rotation Detection: Identifies phase rotation on 3-phase systems.

  • Motor Rotation Measurement: Determines the proper rotation of motors, conveyors, pumps, and other electrical devices interconnected on the power line system before installation.

  • Live Phase Identification: Detects live and open/de-energized phases.

  • Non-Contact Motor Rotation Detection: Determines the direction of rotation of a motor with or without connection.

  • Automatic Testing: Initiates testing as soon as the instrument is connected.

  • Color-Coded Leads and Jacks: Simplifies connection with color-coded leads (red, black, blue) and jacks for common U.S. phase colors.

  • Safety Compliance: Internally protected by a high impedance circuit to limit current to user-safe limits.

  • Compact Design: Lightweight and easy to handle, suitable for field use.

📐 Specifications:

  • Operating Voltage:

    • Phase Rotation: 1 to 400 VAC

    • Phase Indication: 120 to 400 VAC

  • Frequency Range: 2 to 400 Hz

  • Power Supply: One 9V alkaline battery (included)

  • Dimensions: 5.3 x 2.9 x 1.2 inches (135 x 75 x 31 mm)

  • Weight: 4.83 oz (137 g)

  • Safety Ratings:

    • IEC 61010-1, IEC 61557-7

    • 1000V CAT III, 600V CAT IV

  • Ingress Protection: IP40

🎓 Applications:

  • Phase rotation verification in 3-phase systems

  • Motor, conveyor, and pump rotation direction measurement

  • Plant maintenance and troubleshooting

  • Electrical device installation

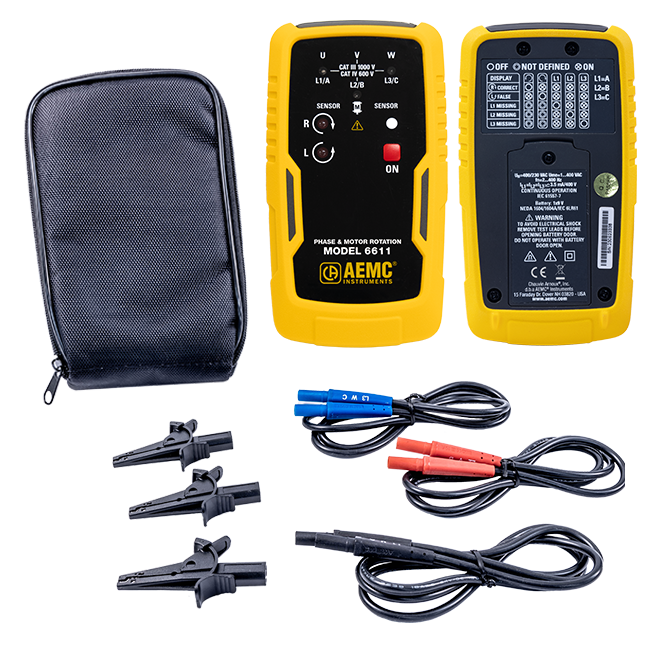

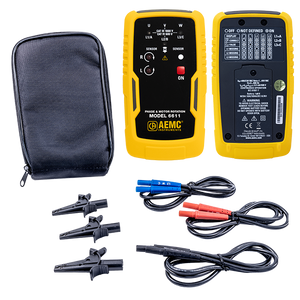

📦 What's Included:

  • Model 6611 Phase & Motor Rotation Meter

  • (3) 4 ft. color-coded test leads (red, black, blue)

  • (3) color-coded alligator clips (black)

  • Soft carrying case

  • User manual
