AEMC PEL 113 Power & Energy Logger Kit

$ 4,250.00 CAD $ 3,623.19 CAD Sale

3-Phase Logger with LCD Display & 3 MiniFlex Sensors

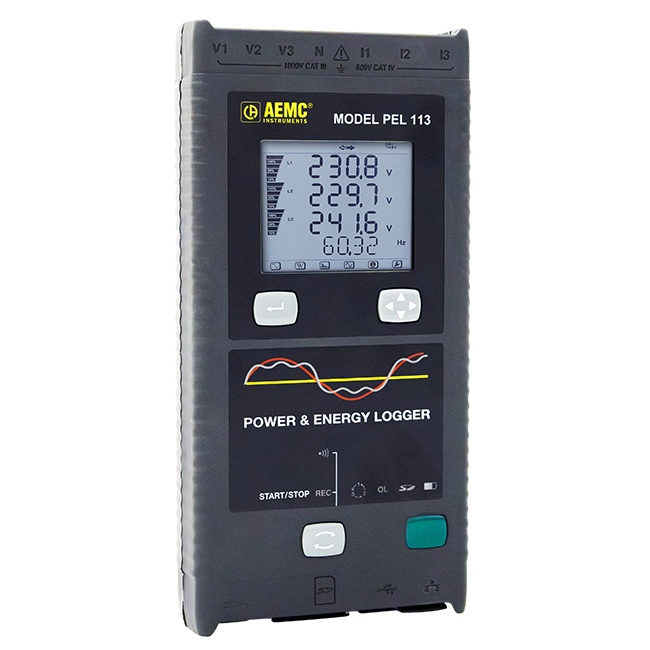

The AEMC PEL 113 is a compact, feature-rich power and energy logger designed for comprehensive monitoring of electrical systems. With a built-in backlit LCD, it gives you on-the-spot access to real-time data—ideal for technicians performing energy audits, load studies, and electrical diagnostics.

This kit (Cat. #2137.54) includes three MA193-10-BK MiniFlex sensors, an assortment of accessories, and DataView® software for advanced analysis.

🔧 Key Features

  • Supports multiple configurations – Single-phase, split-phase, and 3-phase (Y, Δ) systems

  • Built-in LCD screen – View voltage, current, power, and energy readings directly from the device

  • True RMS measurements – Accurately captures complex waveforms and harmonics

  • Auto-recognition of current sensors – Ensures proper configuration without guesswork

  • Log V, A, W, VA, var, PF, THD, kWh, and more

  • High measurement accuracy – ±0.2% R ±0.2V for voltage readings

  • Data storage on SD card (8 GB included) – Supports extended monitoring campaigns

  • Connect via USB, Ethernet, or Wi-Fi – Easily download data or monitor remotely

  • Magnetized back – Quick and secure installation inside load center panels

🧰 What’s Included (Cat. #2137.54)

  • AEMC PEL 113 power & energy logger with LCD display

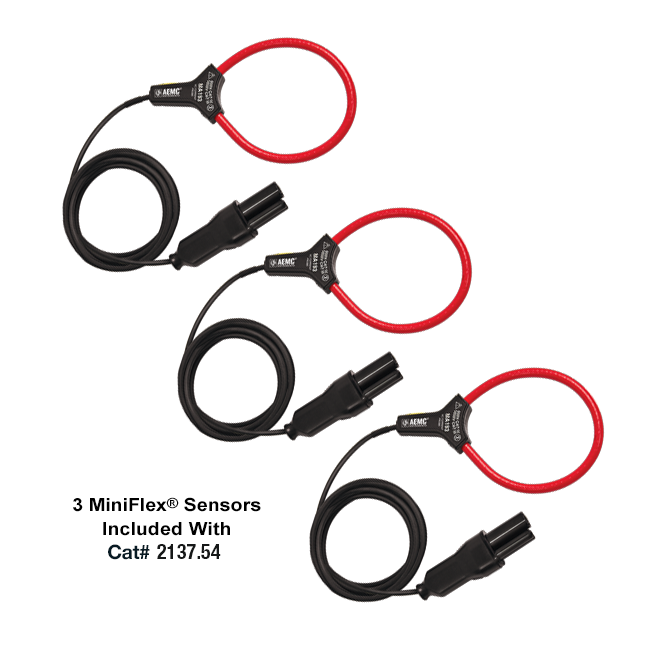

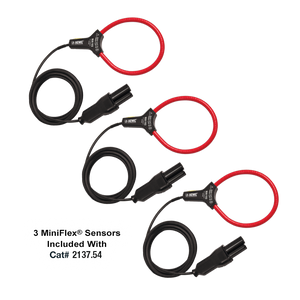

  • (3) MA193-10-BK MiniFlex current sensors

  • Small classic tool bag

  • (4) 10 ft black test leads in a cable reeling box

  • (4) Alligator clips

  • Set of (12) color-coded input ID markers

  • 5 ft USB Type A to Type B cable

  • 5 ft 115 V power cord

  • NiMH AAA 8.4 V battery (pre-installed)

  • 8 GB SD card with USB SD card reader

  • Safety and compliance sheets

  • Printed Quick Start Guide

  • USB drive with DataView® software and full user manual

📌 Use Cases

  • Facility energy audits

  • Load profiling

  • Electrical troubleshooting

  • Utility submetering

  • Motor performance analysis
