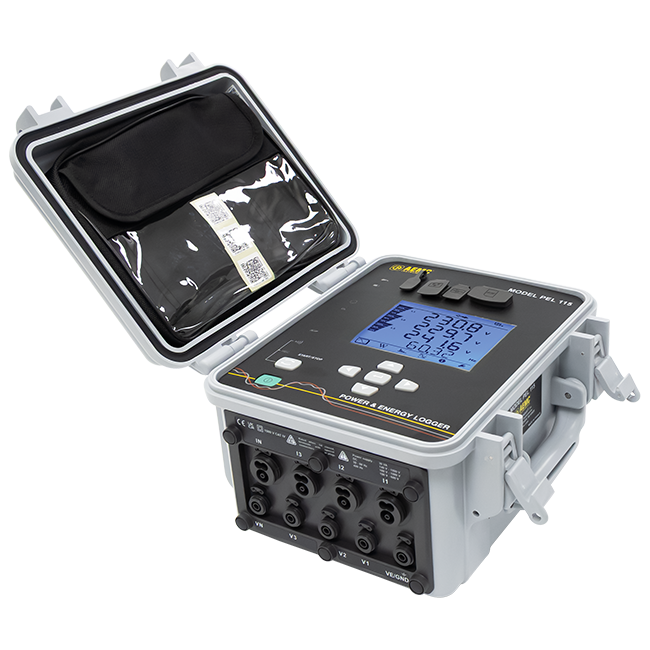

IP67 Logger with LCD Display, Wi-Fi, and 3 MA193-10-BK Sensors
Designed for demanding fieldwork, the AEMC PEL 115 is a rugged, waterproof (IP67) power and energy logger that delivers high-precision monitoring in both indoor and outdoor environments. With a built-in LCD, Wi-Fi connectivity, and three flexible MA193-10-BK current sensors included, this kit is ready for serious energy audits, load studies, and facility diagnostics.
🔧 Key Features
-
True RMS measurements: V, A, W, VA, var, PF, THD, kWh, and more
-
Supports all common configurations: Single-phase, split-phase, and 3-phase (Y, Δ)
-
IP67-rated housing: Built for industrial and outdoor applications
-
Wide voltage range: 10 to 1000 V AC/DC
-
Current range: Up to 6500 A (sensor-dependent; 3000 A with MA193-10-BK)
-
Real-time display: Built-in LCD screen for field diagnostics
-
Auto-recognition of current sensors and phase detection
-
SD card data logging (8 GB included, expandable to 32 GB)
-
Multiple connectivity options: USB, Ethernet, and Wi-Fi (Wi-Fi Direct supported)
-
DataView® software included for real-time analysis and custom reports

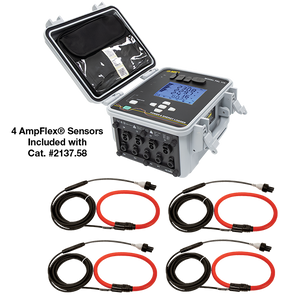

🧰 What’s Included (Cat. #2137.56 – Complete Kit)
-
AEMC PEL 115 logger with LCD display
-
(3) MA193-10-BK MiniFlex current sensors
-
(5) 10 ft test leads with waterproof caps
-
(5) Alligator clips
-
(4) Large and (5) small watertight caps
-
(12) Color-coded input ID markers
-
5 ft USB Type A to Type B cable
-
110/230 V power adapter with US plug
-
NiMH 9.6 V battery (pre-installed)
-
8 GB SD card with USB SD card reader
-
Extra large rubber-bottom carrying bag
-
USB drive with DataView® software and user manual
-
Printed Quick Start Guide
-
Safety and compliance documentation
