DRL series Current Transformers (CT)

$ 36.00 CAD

The ANSI Metering Class transformers are intended for power monitoring applications where high accuracy and minimum  phase angle error are required. They are specially designed to be compliant with relevant ANSI standards.

  • 24" leads
  • CSA and UL approval

Special Features

  • Applicable standard : ANSI/IEEE C57.13
  • Case: 10% glass filled polycarbonate, flame retardant grades classified UL 94V-0.
  • Insulation Level: 600 Volts, 10KV BIL full wave
  • Non-standard length possible if specified
  • For all the SHT & SFT types terminals are brass studs No. 8-32 with one flat washer, lock washer & regular nut
  • All the SHT & SFT models also available as SHL & SFL with leads
  • For all the SHT types mounting bracket kit when required

🔷 DRL Series (Split Core, Industrial Control)

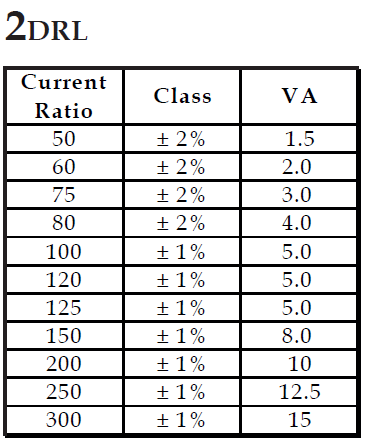

Available in 2 window sizes (2DRL, 5DRL) and 20 current ratios (from 50:5 to 1200:5), the DRL Series split-core current transformers are CSA certified and Class 1 accurate. Built for fast installation in industrial control environments, these CTs open and close securely for use on live conductors without service interruption.
