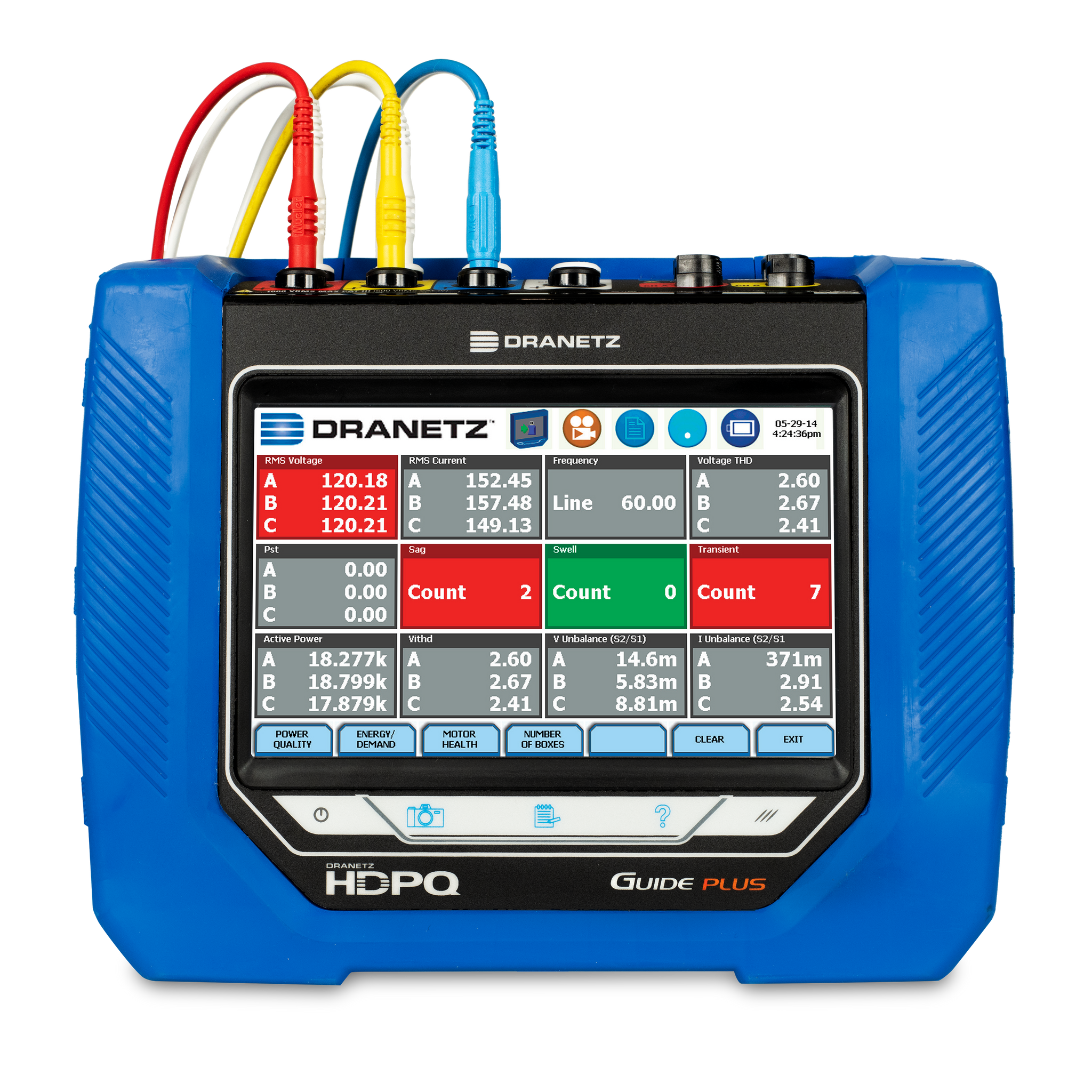

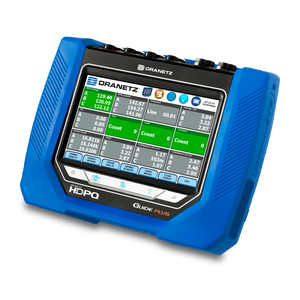

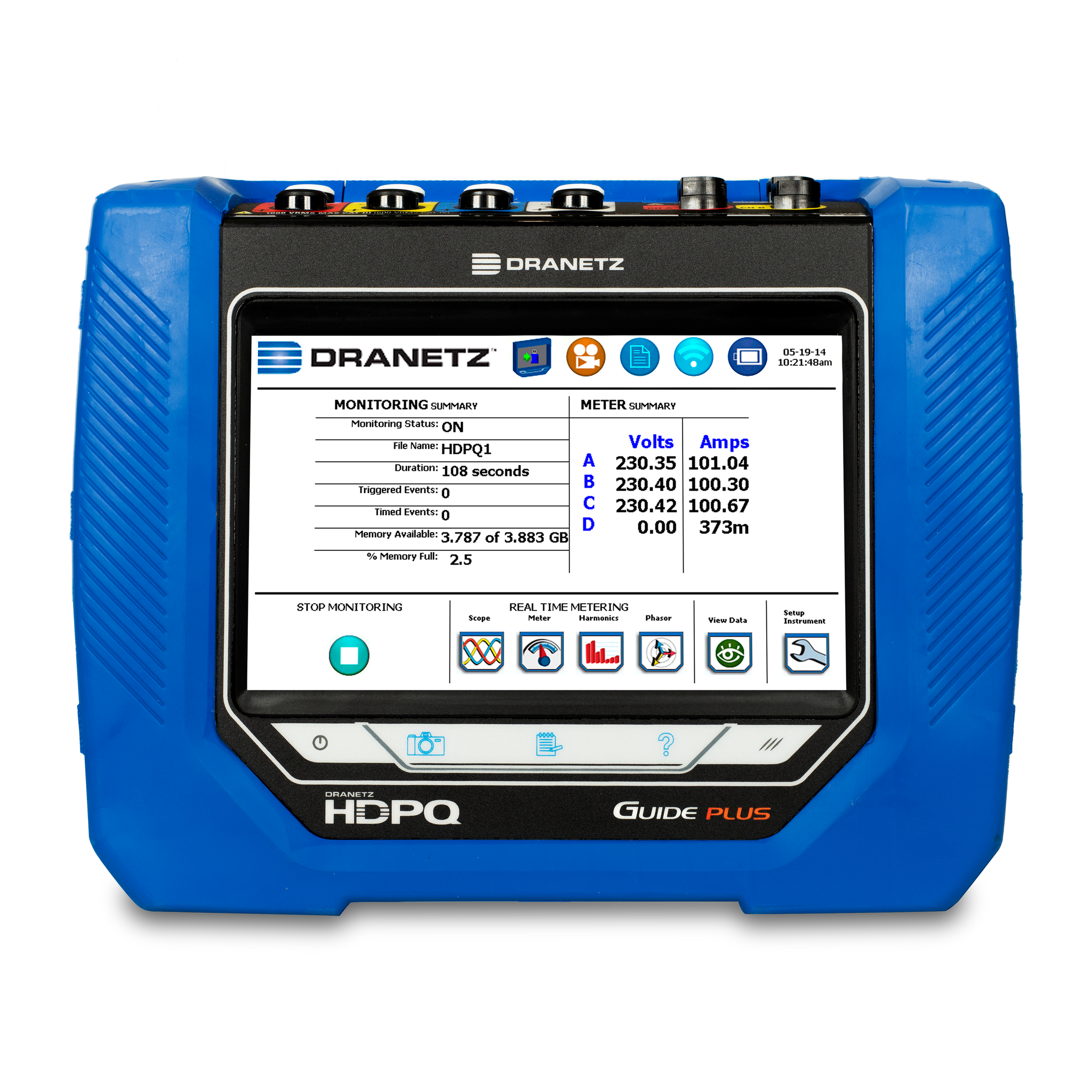

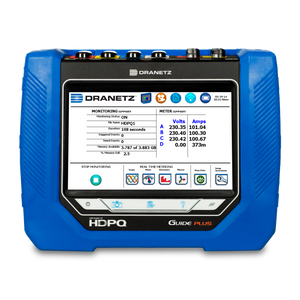

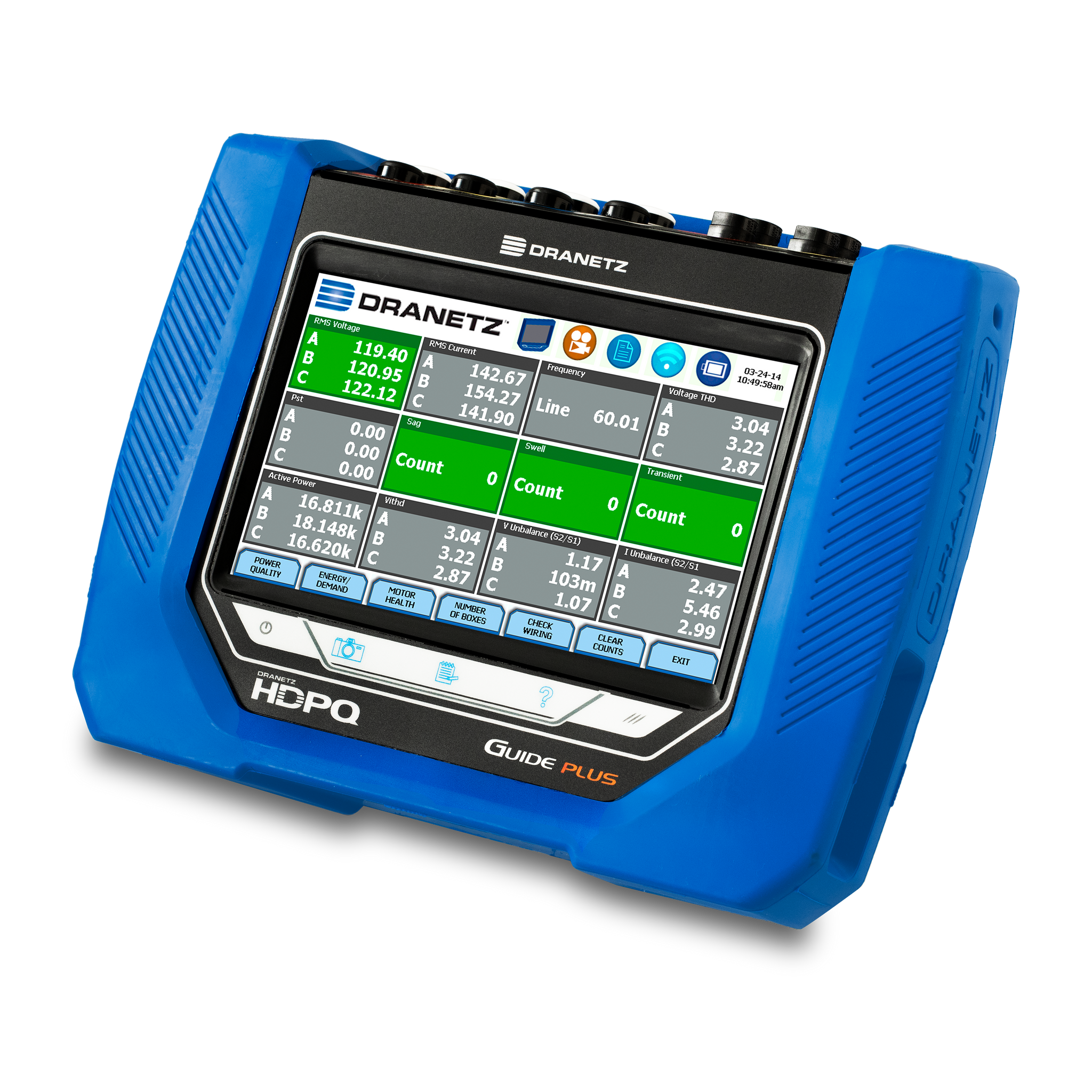

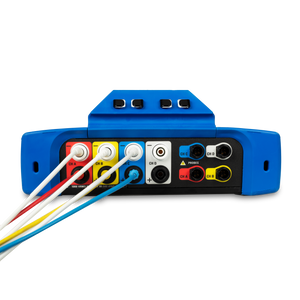

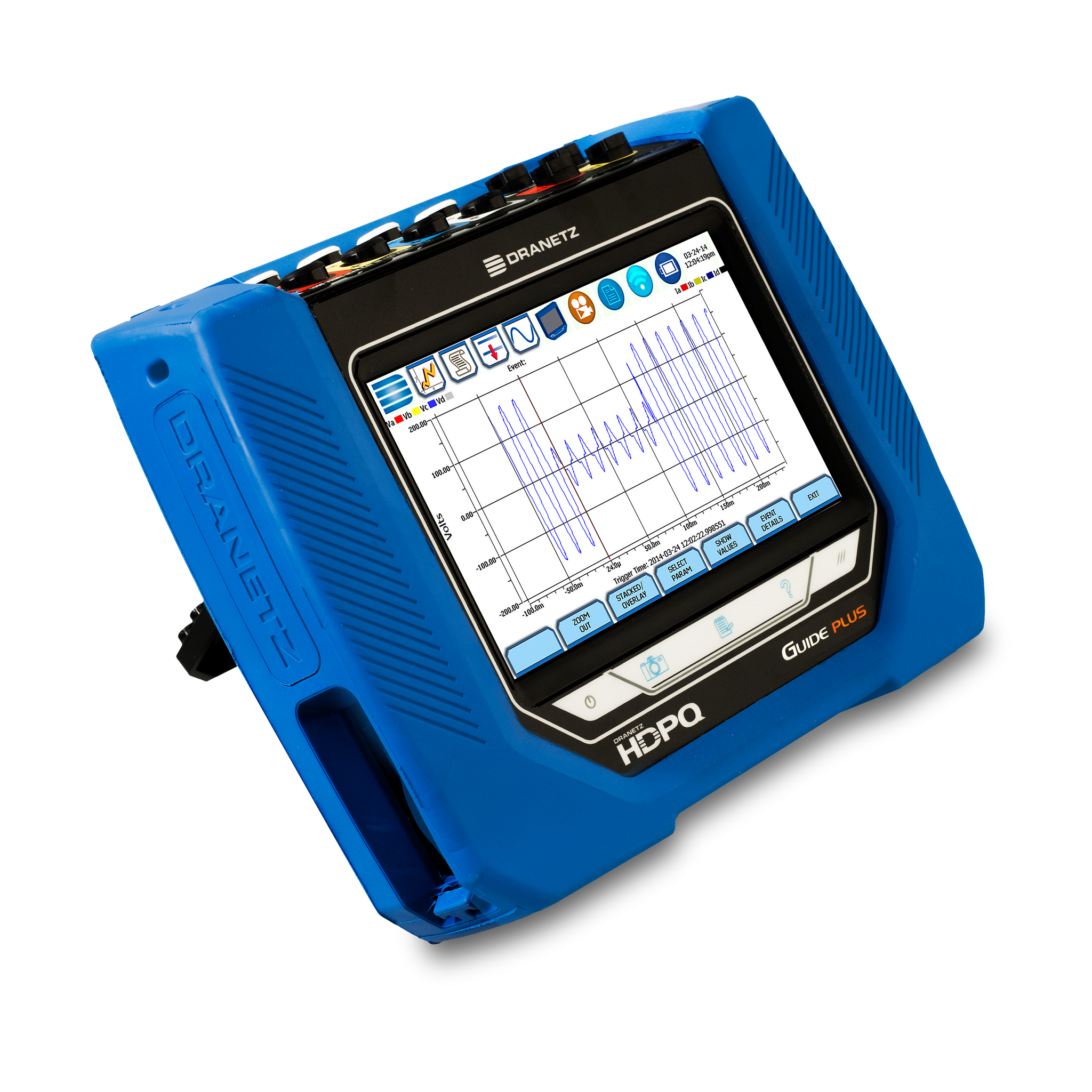

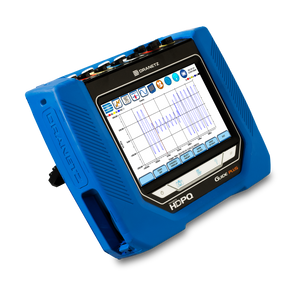

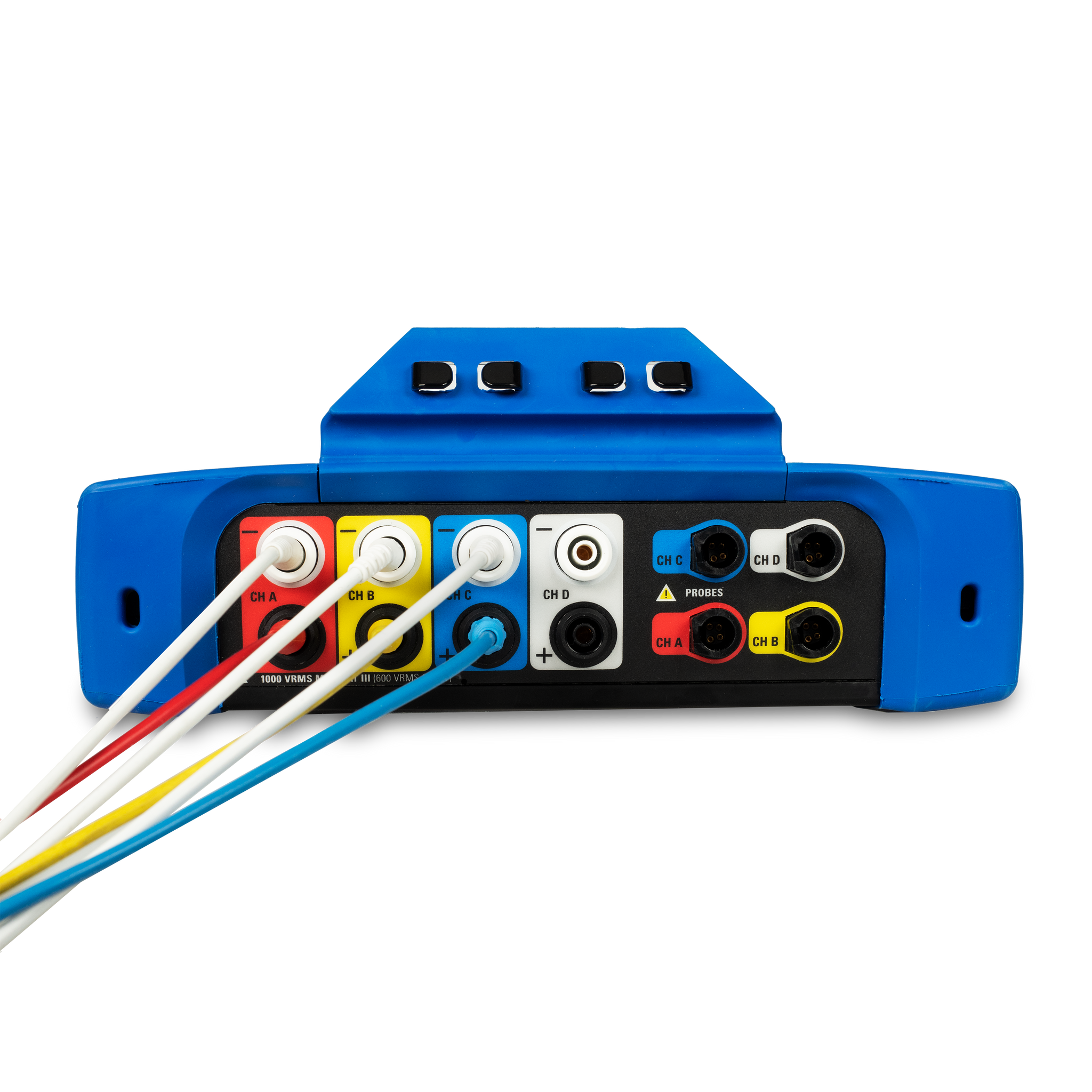

Dranetz HDPQ Guide – Portable Power Quality Analyzer

$ 10,965.00 CAD

Dranetz HDPQ Guide
Portable Power Quality Analyzer

Not every job calls for high-frequency or advanced transient capture. For everyday power quality surveys and compliance testing, the Dranetz HDPQ Guide gives you the trusted accuracy of Dranetz in a streamlined, cost-effective package. It’s the ideal solution when you need a rugged, portable PQ analyzer that still delivers IEC Class A performance.

  • What does it do?
    The HDPQ Guide monitors, records, and analyzes all key power quality parameters including voltage, current, harmonics, flicker, sags, swells, and interruptions.

  • Who is it for?
    Utilities, contractors, and facility managers who need affordable Class A power quality analysis for routine surveys, troubleshooting, and compliance checks.

  • Why is it better?
    It shares the same 7” touchscreen platform as the Xplorer series, offers Wi-Fi/Ethernet/USB connectivity, and runs Dran-View 7 software — but at a lower cost by simplifying advanced transient functions.

Technical Detail (key specifications)

  • Compliance: IEC 61000-4-30 Class A, IEC 61000-4-7, IEC 61000-4-15

  • Transient Capture: Limited compared to Xplorer (suitable for most PQ events, but not full 8kV capture)

  • Measurements: Voltage, current, power, harmonics, flicker, unbalance, power factor

  • Recording: Continuous trending, waveform capture, event logging

  • Display: 7” color touchscreen

  • Communication: Wi-Fi, Ethernet, USB, optional cellular modem

  • Software: Dran-View 7 for detailed analysis and reporting

  • Power Supply: 100-240V AC or battery operation
