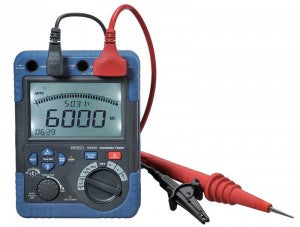

R5002 High Voltage Insulation Tester

$ 975.00 CAD Sale

Test voltages up to 5kV and measure insulation resistance up to 60GΩ. The R5002 performs a spot insulation test by applying a regulated and stabilized voltage to measure the amount of flowing current and then calculates resistance in order to evaluate insulation integrity.

High Voltage Insulation Tester

  • Wide range measurements from 500V to 5000V and up to 60GΩ.
  • Large 6000 counts digital display with bargraph and backlight.
  • Polarization index measurement(PI).
  • Auto ranging & Timer measurement function.
  • Indication of output voltage and discharge voltage.
  • Auto-discharge function and voltage output warning function.
  • Auto power off and battery check.
  • MAX/MIN, PEAK, Relative value & Data hold functions for DC/AC voltage measurments
  • Safety standard IEC61010-1 CAT IV 600V

 Included with R5002

  • Digital High Voltage Insulation Tester
  • Test Leads
  • Alligator Clips
  • AC Adapter
  • Batteries
  • Hard Carrying Case

R5002 Specifications

Test Voltage
Ranges 500V, 1000V, 2500V, 5000V
Accuracy ±2.5% of reading
Insulation Resistance
Ranges 0 to 6MΩ, 0 to 60MΩ, 0 to 600MΩ, 0 to 6GΩ, 0 to 60GΩ
Accuracy ±2.5% of reading
AC/DC Voltage
Range 0 to 600V
Accuracy ±1% of reading
Resistance
Range 0 to 600Ω
Accuracy ±1.5% of reading
General Specifications
Range Selection Manual / Autoranging
Display 6000 count LCD display with bargraph
Max/Min, Peak, Relative and Data Hold Functions Yes
Sampling Rate 2.5 times/sec.
Backlit Display Yes
Analog Bargraph Yes
Auto Power Off Yes (after 20 minutes)
Continuity Buzzer Yes (< 50Ω)
Power Supply 8 C Batteries or AC Adapter (included)
Low Battery Indicator Yes
Fuse Protection Yes
Overvoltage Category CAT. IV 600V
Product Certifications CE
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Dimensions 7.8 x 5.8 x 3.4" (198 x 148 x 86mm)
Weight 3lbs (1.5kg)
