Regular price $ 195.00 CAD Sale

WEM3080 Bi-directional WiFi energy meter products are used for monitoring and analysis of energy consumption in a residential electricity system or solar system. It can measure the real-time readings of Voltage, Current, Active Power, Active Energy, Frequency..., and upload the readings to the cloud. As the bi-directional meters, they are also ideal for use in a solar system. It can monitor the energy generated by solar inverter and energy imported from/ exported to the grid. The monitoring cloud provides the comprehensive analysis function for you to understand your energy consumption, and also can generate and analyze your electricity bill or income

    Features:

    • Track your energy usage anytime from anywhere
    • Support Local Monitoring or monitored by your private cloud, or our cloud service and mobile app is optional.
    • Real-time data monitoring of power consumption (voltage, current, energy, power...) via your home WiFi network;

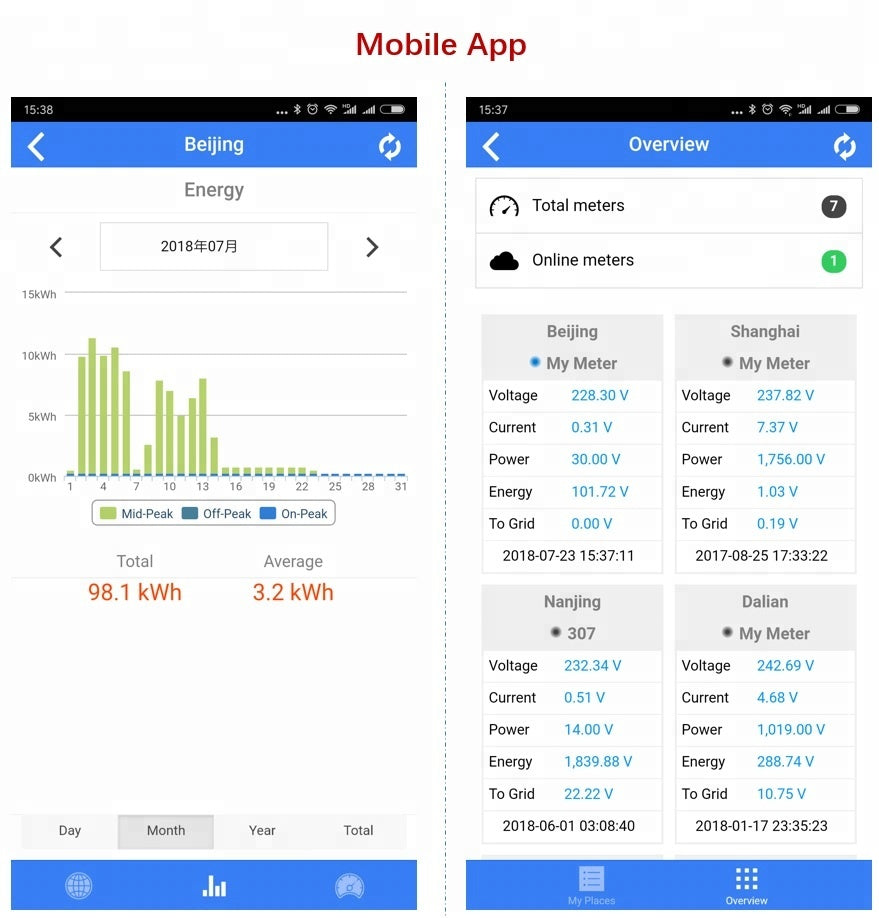

    • Visualized real-time data and historical data for analysis and easy understanding
    • 2-pole DIN-rail mounting fits neatly in the meter box.

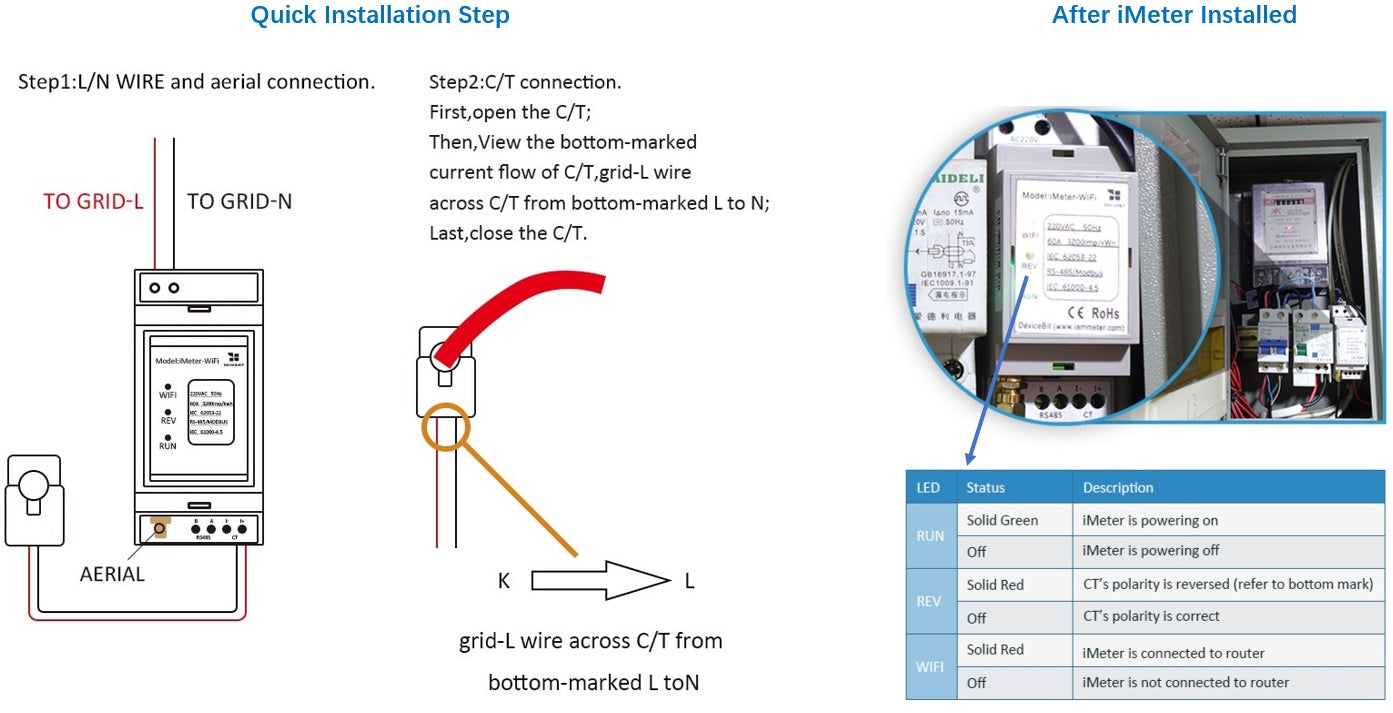

    • Easy installation and setup by licensed electrician.
    • Free app available at Google Play & Apple Store
    • Free Cloud Service

    View demo unit in real time

    Use password "power" to log in:

    Monitoring Scenarios

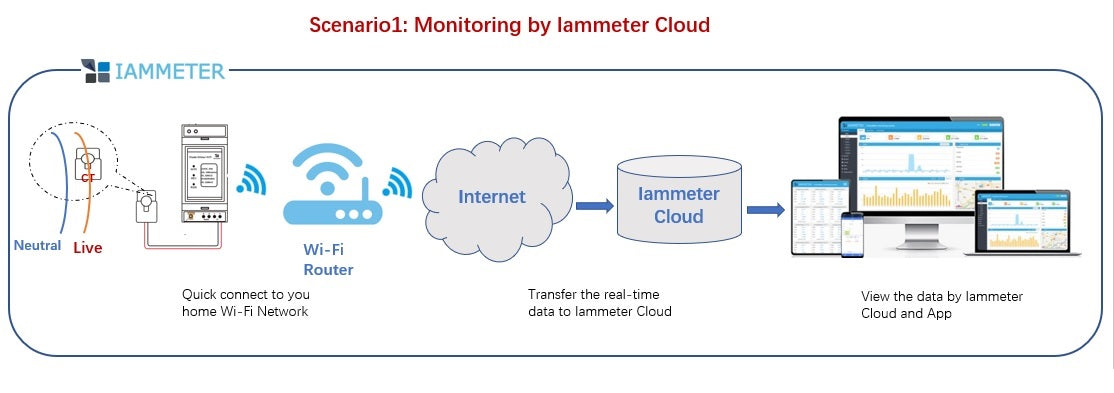

    1. Monitor by Cloud & App

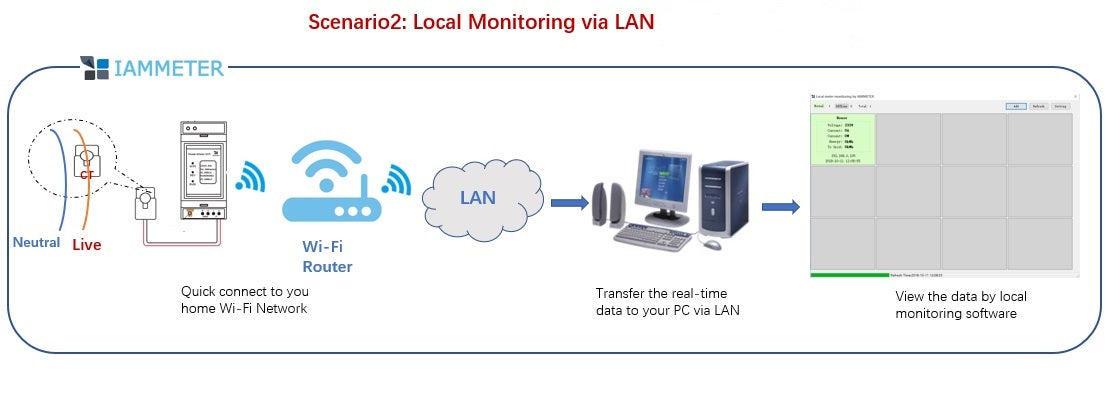

    2. Monitor locally on your PC via LAN

    Order Information



    WEM3080 - 100A

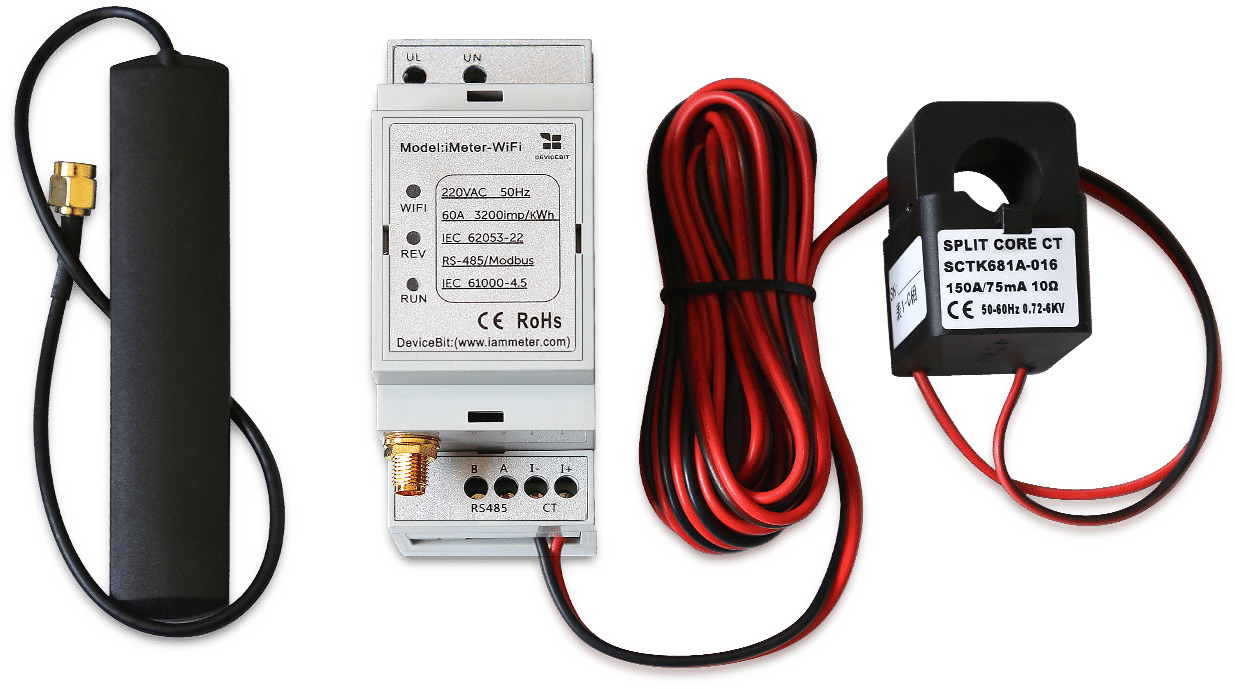

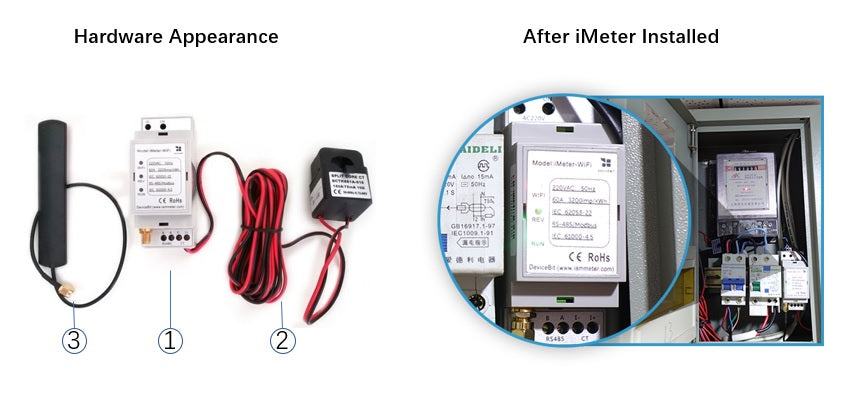

    Kit included:

    1 x WiFi Energy Meter 3080
    1 x Current Transformer 100A
    1 x 2.4G WiFi Antenna

    WEM3080 - 250A

    Kit included:

    1 x WiFi Energy Meter 3080
    1 x Current Transformer 250A
    1 x 2.4G WiFi Antenna



    Download
