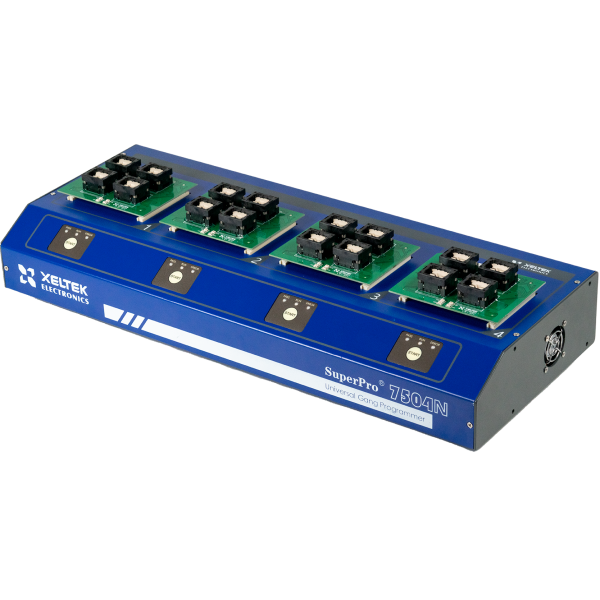

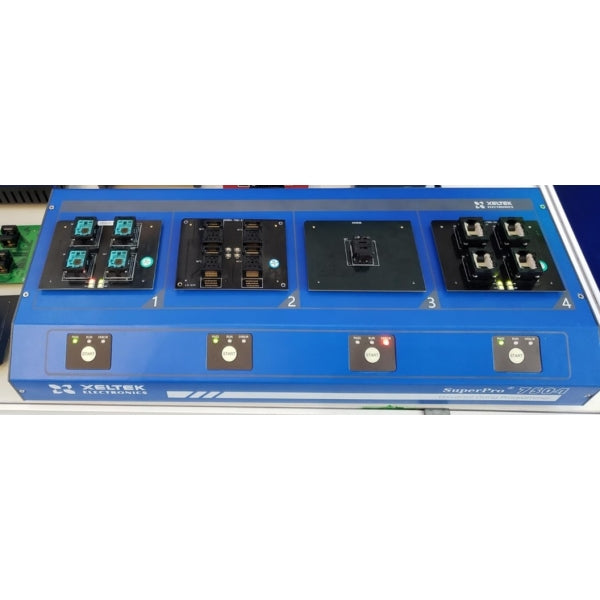

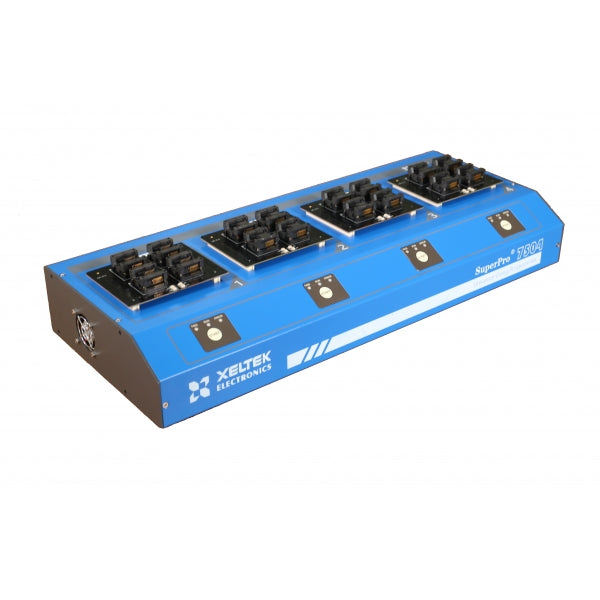

Xeltek SuperPro 7504N – Ultra-High-Speed 16-Chip Gang Programmer

The Xeltek SuperPro 7504N is a premier universal IC gang programmer designed for high-volume production environments. Equipped with four independent SuperPro 7500N modules, it enables simultaneous programming of up to 16 chips, ensuring maximum throughput and efficiency.eVision Webshop+4isit.fr+4Xeltek+4

🚀 Key Features

• Massive Parallel Programming: Program up to 16 chips concurrently using four asynchronous high-speed modules, ideal for large-scale manufacturing.adeptor.no+6Xeltek+6eVision Webshop+6

• Extensive Device Support: Supports over 99,800 devices, including EPROM, EEPROM, NOR/NAND Flash, eMMC, SPI Flash, CPLD, MCU, and more.

• Ultra-Fast Programming Speeds: FPGA-based architecture and manufacturer-approved algorithms ensure rapid programming, e.g., 64Mb NOR Flash in ~11.3 seconds.

• Advanced Software Functions:

  • Project Files: Save device type, buffer data, operation settings, and batch commands for streamlined operations.

  • Auto Function: Execute sequential operations like erase, blank check, program, verify, and protect with a single command.

  • Production Mode: Automatically starts programming upon chip insertion, enhancing efficiency.

  • Auto Increment: Automatically generate and increment serial numbers for each programmed chip.

  • Factory Mode: Designed for volume production with password protection to prevent unauthorized access.

• Comprehensive Safety Features: Includes over-current and over-voltage protection, Vcc verification, and chip mis-insertion detection to ensure reliable operation.Xeltek+1eVision Webshop+1

• Wide Package Compatibility: Supports various package types, including DIP, PLCC, QFP, BGA, and more.Xeltek+4isit.fr+4xeltek.com+4

• USB 2.0 Interface: Ensures fast and reliable communication with host PCs.Xeltek

📦 What's Included

• SuperPro 7504N Main Unit

• AC Power Adapter

• USB 2.0 Cableisit.fr

Note: Socket adapters are sold separately.

🛠️ Optional Accessories

• Socket Adapters for various IC packages

• Adapter Pressure Booster and Pressure Platesxeltek.com+1eVision Webshop+1eVision Webshop+5xeltek.com+5adeptor.no+5

🎯 Ideal For

• Programming houses

• Electronic repair shops

• Automotive repair centers

• Forensic and data recovery companies

• Medical device manufacturersxeltek.com+4xeltek.com+4Xeltek+4

Experience unparalleled programming speed and versatility with the Xeltek SuperPro 7504N. Whether you're in development or production, this universal gang programmer is designed to meet your needs with efficiency and reliability.

Certifications: CE Compliant, RoHS Compliant, ISO 4001
