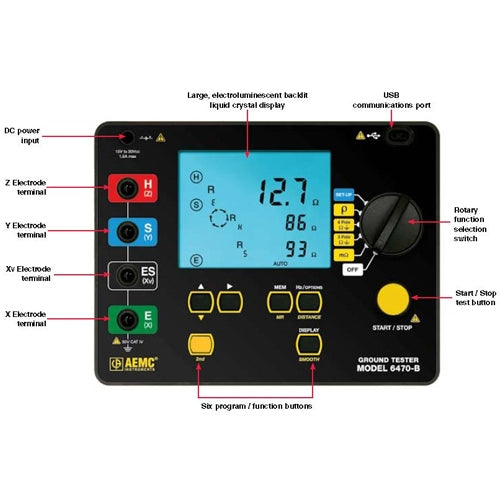

AEMC 6470-B Ground Resistance Tester

AEMC 6470-B Ground Resistance Tester – Multifunction 4-Point Tester for Advanced Soil & Ground Analysis

The AEMC 6470-B is a versatile, microprocessor-based ground resistance tester designed for accurate measurement of ground resistance and soil resistivity using the 4-point method. It also supports selective and stakeless testing when used with optional clamp-on probes.

With programmable test frequencies from 15Hz to 5kHz and a measurement range up to 99.9kΩ, the 6470-B is ideal for electrical contractors, utility technicians, and engineers working on grounding system design, maintenance, and troubleshooting. A large backlit display, USB interface, and included DataView® software make it easy to manage data and generate reports in the field or office.

What’s Included:

• AEMC 6470-B Ground Resistance Tester

• Rechargeable battery and charger

• USB cable

• DataView® software

• Carrying case

• User manual

(Test leads and clamps sold separately or available in kit versions)

Key Features:

• Measures ground resistance from 0.01Ω to 99.9kΩ

• Supports 2-, 3-, and 4-point ground resistance testing

• Performs soil resistivity tests using Wenner method

• Selective and stakeless ground testing with optional clamps

• Programmable test frequency (15Hz–5kHz) for noise reduction

• Calculates resistance, voltage, current, and continuity

• Stores up to 512 test results

• USB interface with DataView® software for reporting

• CAT IV 50V / CAT III 300V rated

Applications:

• Grounding system audits and design verification

• Soil resistivity surveys for new installations

• Lightning protection and power system compliance

• Utilities, substations, and telecom infrastructure

• Industrial maintenance and engineering consulting
