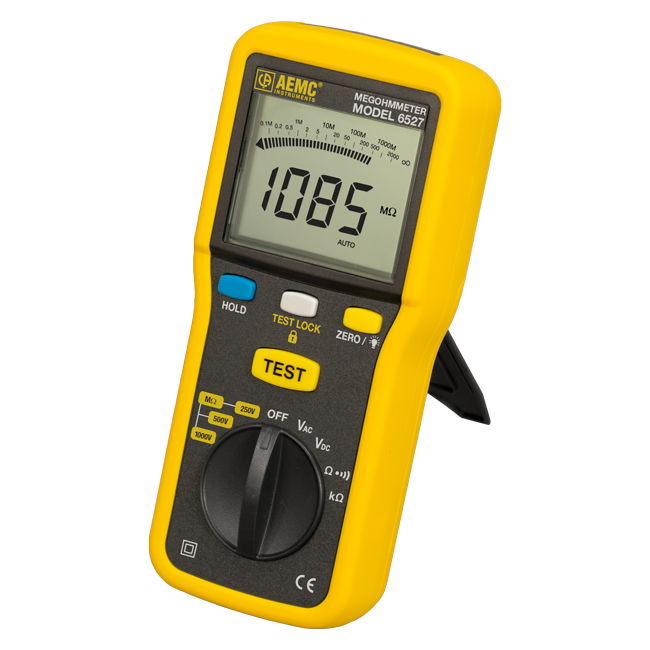

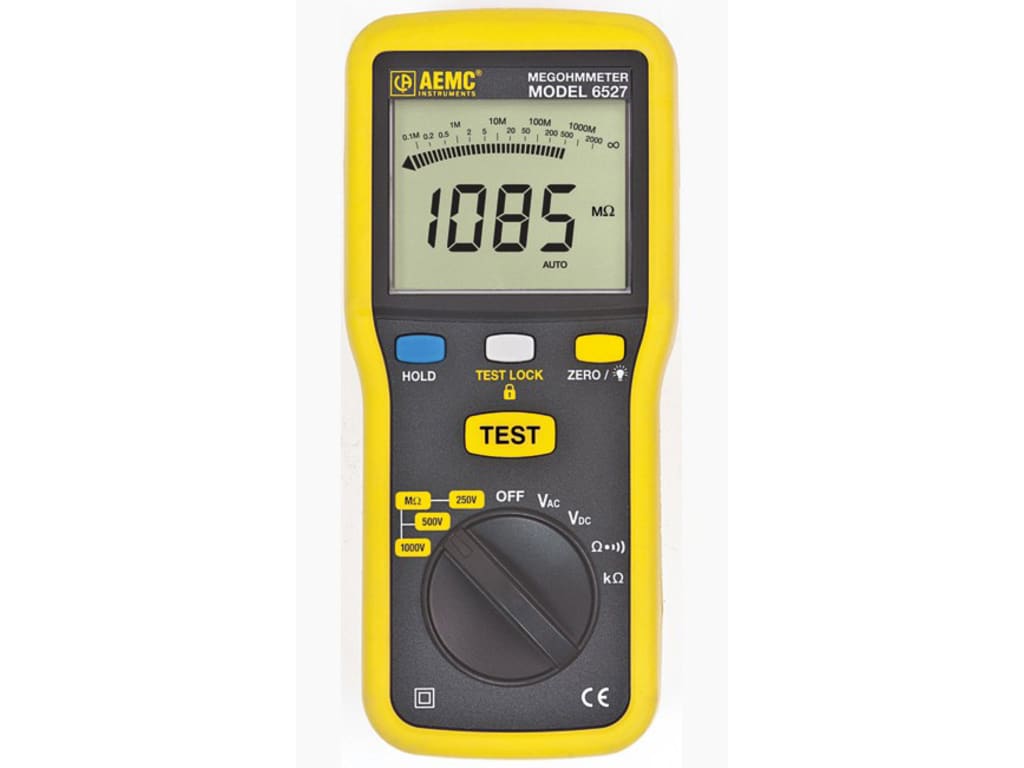

AEMC 6527 Digital Megohmmeter with continuity, 4000 Ω
AEMC 6527 Digital Megohmmeter with continuity, 4000 Ω
AEMC 6527 Digital Megohmmeter with continuity, 4000 Ω

AEMC 6527 Digital Megohmmeter with continuity, 4000 Ω

$ 372.00 CAD $ 355.81 CAD Sale

Versatile portable multi-range megohmmeter capable of measuring insulation resistance to 4000 M. Features three user selectable test voltages of 250 V, 500 V and 1000 V.

This portable multi-range megohmmeter is capable of measuring insulation resistance from 1 kΩ to 4000 MΩ. It also features an AC/DC voltmeter function capable of measuring up to 600 VAC and 1000 VDC, continuity test function with audible beeper for resistances under 35 Ω, and an overload protection of 600 Vrms.

Features

  • True Megohmmeter®
  • Insulation test voltage selections of 250 V, 500 V and 1000 V
  • Measure insulation to 4000 MΩ (4 GΩ)
  • TEST LOCK feature for timed measurements up to 15 minutes
  • Auto discharge after insulation test
  • AC/DC voltmeter to 600 VAC / 1000 VDC
  • Ohmmeter to 400 kΩ
  • Continuity meter with up to 200 mA test current
  • Test lead resistance compensation for accurate low resistance measurements
  • Auto HOLD function to "freeze" readings
  • Large and bright dual display with blue backlight
  • Auto power off
  • Ergonomic over-molded case with back-stand
  • Complies with International Insulation Testing Standards including EN61557

Applications

  • Insulation tests on: cables, switch gears, motors, DC generators, power tools and small appliances

Specification

Insulation Measurement
Test Voltage/Resistance Range 250 V: 1 kΩ to 4000 MΩ (4 GΩ)
500 V: 1 kΩ to 4000 MΩ (4 GΩ)
1000 V: 1 kΩ to 4000 MΩ (4 GΩ)
Measurement Accuracy 4 MΩ/40 MΩ: ±2% of reading ±10 cts
400 MΩ: ±3% of reading ±5 cts
4000 MΩ (4 GΩ): ±4% of reading ±5 cts
AC/DC Voltage Measurement
Range 600 V/1000 V
Accuracy DC: ±0.8% of reading ±3 cts
AC: ±1.2% of reading ±10 cts
Resolution 1 V
Frequency Range DC & 40 to 400 Hz
Input Impedance 10 MΩ
Resistance Measurement
Range 0.0 to 400.0 kΩ
Accuracy ±1.2% of reading ±3 cts
Continuity Measurement
Range 0.00 to 400 Ω
Accuracy ±1.2% of reading ±3 cts
Test Current >200 mA (0.2 Ω/2 Ω)
Test Lead Compensation Yes - dedicated push-button
Beeper Yes - ≤35 Ω ±3 Ω
General Specifications
Display Backlit digital with bar graph
Power Supply 6 x AA batteries (NEDA 15A or IEC LR6)
Battery Life >50 hrs in MΩ, >200 hrs in V AC/DC, >15 hrs in Continuity Test
Altitude Operating 6561.68' (2000 m)
Operating Temperature 32 to 90°F (0 to 50°C), 90% RH
Storage Temperature -36 to 126°F (-20 to 70°C), 50% RH
Dimensions 7.9 x 3.6 x 2" (200 x 92 x 50 mm)
Weight 24 oz (700 g)
IP Rating IP51
Safety Compliance IEC/EN 61010-1, 600 V CAT IV, Pollution Degree

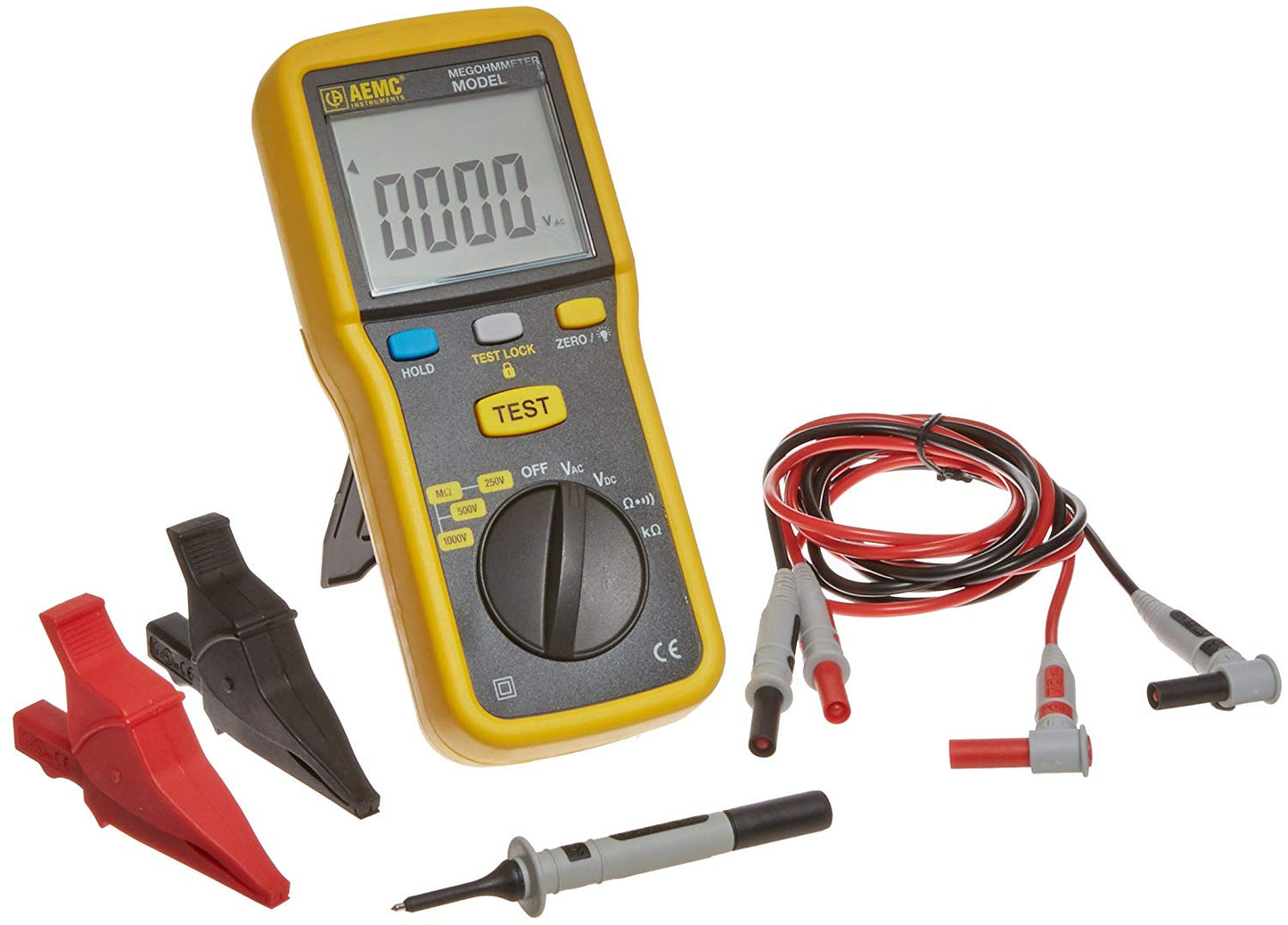

Included with the AEMC 6527

  • Digital Megohmmeter
  • 2 x 5' Leads with Alligator Clips (Red and Black)
  • Black Test Probe
  • Soft Carrying Case
  • User Manual
