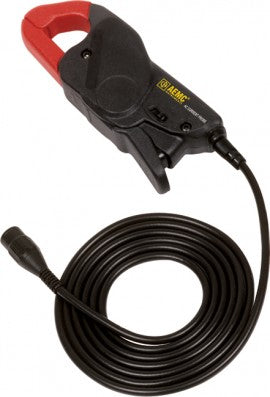

AEMC MN261 AC Current Probe, BNC, 100mV/A, 24A, 10mV/A, 240A

AEMC MN261 AC Current Probe, BNC, 100mV/A, 24A, 10mV/A, 240A

Regular price $ 272.00 CAD $ 314.11 CAD Sale

This small and compact Current Probe is designed to meet the most stringent demands in industry and electrical contracting. Model MN261 meets EN 61010, 600V, Cat. III safety standards and is CE Marked and UL approved in Canada and United States. Features a measurement range of 0.5 to 240A AC.

The MN261 is a high sensitivity probe with voltage outputs (100mV/A and 10mV/A) and combine two switch-selectable ranges of 20A and 200A, thus permitting accurate measurements at low and high levels. The MN261 is designed for oscilloscopes and other BNC terminated instruments. It has two performing ranges (20A, 200A) both voltage output (100mV/A and 10mV/A) and 40Hz to 10kHz response.

Features

  • Small, compact size
  • Measurement range of 0.1 to 24A, 0.5 to 240A AC
  • Large jaw opening accommodates conductors up to 250MCM
  • Designed for DMMs, loggers, recorders and oscilloscopes
  • 40Hz to 10kHz response
  • 100mV AC/A AC – 10mV AC/A AC output signals
  • Designed to EN 61010, 600V Cat. III safety standard
  • UL approved for Canada and United States
  • Double Insulation
  • CE Mark

Applications

  • Measuring in breaker panels
  • Industrial loads
  • HVAC/R
  • Residential and commercial sites
  • 5A secondary current transformers (CTs) monitoring

Specifications

Nominal Range 20A & 200A
Measurement Range 0.1 to 24A, 0.5 to 240A
Transformation Ratio Voltage output
Output Signal 20A: 100mV/A
200A: 10mV/A
Accuracy (20A Range) 1% of Reading ± 50mV
Phase Shift (20A Range) Not Specified
Overload (20A Range) 24A for 10 min ON, 30 min OFF
Accuracy (200A Range) 0.5 to 10A: 3.0% of Reading ± 5mV
10 to 40A: 2.5% of Reading ± 5mV
40 to 100A: 2.0% of Reading ± 5mV
100 to 240A: 1.0% of Reading ± 5mV
Phase Shift (200A Range) 0.5 to 10A: Not Specified
10 to 40A: ≤5.0°
40 to 100A: ≤3.0°
100 to 240A: ≤2.5°
Overload (200A Range) 240A for 10 min ON, 30 min OFF
Frequency Range 40 to 10kHz
Limit Operating Conditions 200A permanently to 1kHz
Derating above 3kHz: 200A x , F in kHz
Crest Factor 3 at 200Arms with an error (due to CF) of 4%
Working/Common Mode Voltage 600Vrms
Output Termination 6ft BNC

 Included with the AEMC MN261



  • AEMC MN261 AC Current Probe, BNC, 100mV/A, 24A, 10mV/A, 240A

  •
