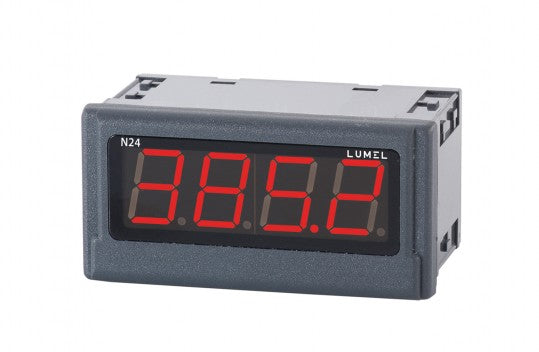

LUMEL N24-H Digital Indicator 4-digits, up to 600 VDC, 6 ADC

N24 series panel meters are destined for measurement of d.c. voltage or d.c. current, temperature from Pt100 sensors and J, K thermocouples, a.c. voltage and a.c. current.

• 4-digit LED display, digits of 20 mm high,
• Measuring ranges:
• 0...100...110 V d.c
• 0...250...275 V d.c
• -120...-100...100...120 V d.c.
• -300...-250...250...300 V d.c
• -600...-400...400...600 V d.c
• -1.2...-1...1...1.2 A d.c
• -6...-5...5...6 A d.c
• possible configuration of parameters through the PD14 programmer and the free eCon software
  • precision of displayed results (decimal point),
  • measurement averaging time,
  • recounting of indications (individual characteristic),
  • automatic or manual compensation: temperature of cold junction for measurements with thermocouples or wire resistance for Pt100 sensors (N24T),
• supply: 85…253 V a.c./d.c. (20…24 V a.c./d.c., 110 V a.c., 230 V a.c. - available upon request)
• protection grade: IP65
• overall dimensions: 96 x 48 x 64 mm

Documentation

• N24H_N24S_N24T_N24Z_data_sheet
• N24H_N24S_N24T_N24Z_service_manual
