PB-502: Portable Advanced Logic Design Trainer; CSA approved

PB-502: Portable Advanced Logic Design Trainer; CSA approved

Regular price $ 549.95 USD Sale

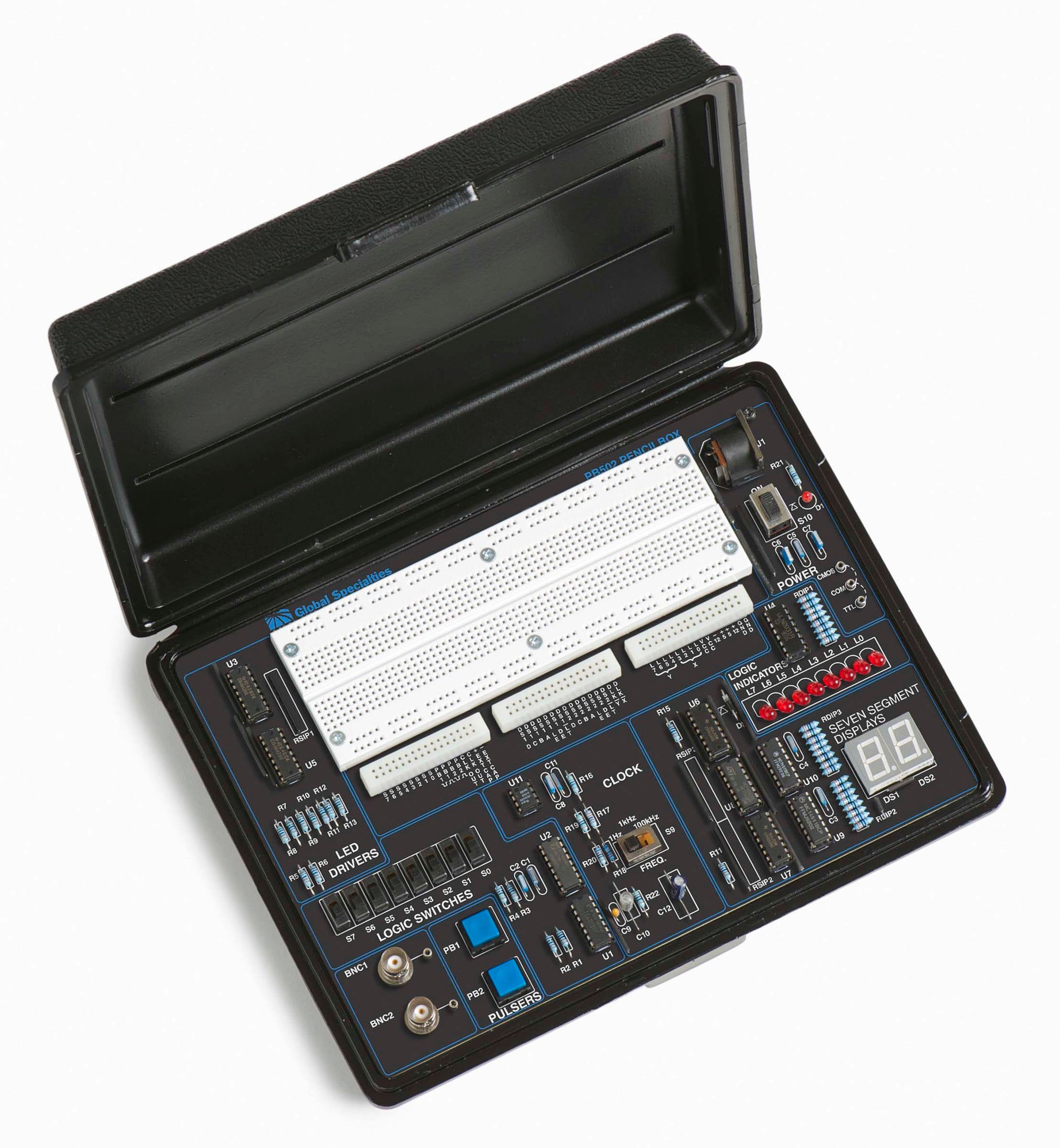

The PB-502 is a robust instrument capable of satisfying many requirements arising in the design and study of digital logic circuitry. The PB-502's selectable operating voltage further aids its versatility by allowing the trainer to be used in either TTL or CMOS operating mode. The trainer contains three integral power supplies and input/output devices that simplify the construction of a wide range of circuits.

Typical circuits that can be built on the PB-502 include: Operational amplifiers, comparators, A to D converters, gates, and counters. The PB-502 can also interface directly to a microprocessor. The PB-502 is housed in a tough, molded plastic carrying cases with an integral hinged cover which stacks neatly for storage.

Trainer Product Features

  • Two fully debounced pushbuttons with true logic outputs
  • TTL/CMOS operation
  • Eight SPST logic switches & buffered LED logic indicators
  • Seven-segment LCD display
  • 840 tie-point breadboard area using a UBS-100
  • Clock outputs & two BNCs connected to adjacent tie-points
