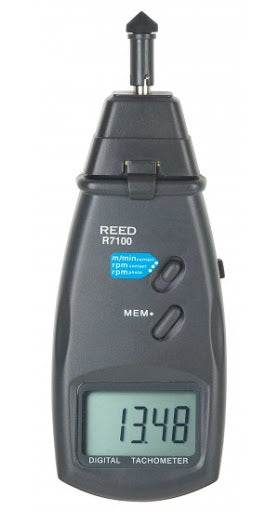

Dual function tachometer features the ability to measure RPM with non-contact built-in laser and contact (m/min) measurements quickly and accurately.
This tachometer features both the ability to measure RPM (revolutions per minute) in rotational equipment and surface speed m/min (meters per minute) with included contact adapters. The R7100 features a built-in laser pointer to assist with identifying the target area.
Features
- Dual function unit with both contact and non-contact capabilities
- Provides fast and accurate RPM (revolutions per min) measurements of rotating objects and surface speed measurements m/min (meters per min) with included contact adapters
- Built-in laser pointer identifies target area
- Internal memory recalls maximum, minimum values as well as last value stored
- LCD display and low battery indicator
REED R7100 Specifications
| RPM Range (Contact) |
0.5 to 19,999 |
| RPM Range (Photo) |
2.5 to 99,999 |
| Surface Speed Range |
0.05 to 1,999.9 m/min |
| Resolution |
Photo: 0.1 RPM (≤999.9) / 1 RPM (>1000)
Contact: 0.1 RPM (≤999.9) / 1 RPM (>1000)
Surface: 0.01 m/min (≤99.99) / 0.1 m/min (>100) |
| Basic Accuracy |
±(0.05% + 1 dgt.) |
| General Specifications |
| Visible Indicator |
Yes (Laser) |
| Target Distance |
1.6ft (500mm) (Photo) |
| Response Time |
<1 sec |
| Sampling Time |
0.8 sec (over 60 RPM) |
| Display Size/Type |
5 Digit LCD Display |
| Auto shut-off |
Yes |
| Internal Memory |
Max, Min and Last |
| Laser Class |
Class III |
| Low Battery Indicator |
Yes |
| Power Supply |
4 x AA Batteries |
| Product Certifications |
CE |
| Operating Temperature |
32 to 122°F (0 to 50°C) |
| Storage Temperature |
-4 to 140°F (-20 to 60°C) |
| Operating Humidity |
10-90% |
| Dimensions |
8.3 x 2.9 x 1.5" (210 x 74 x 37 mm) |
| Weight |
7.9oz (224g) |

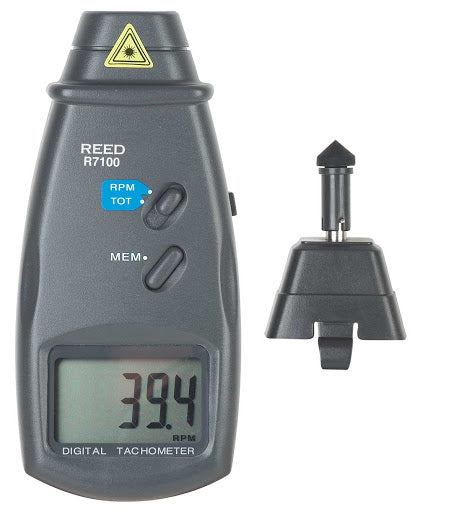

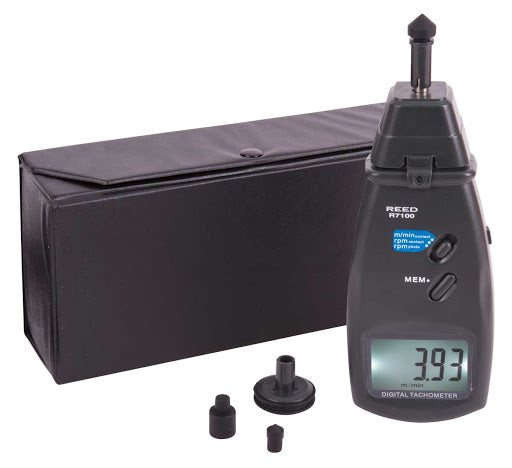

Included with the REED R7100
- Photo/Contact Tachometer
- Reflective Tape
- Large and Small Cone Tip Adapters
- Funnel Adapter
- Wheel Adapter
- Batteries
- Mounting Screws
- Hard Carrying Case
- CALIBRATION Certificate
