Sterling

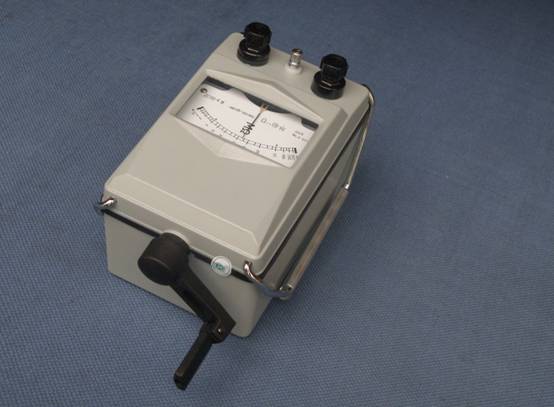

Rental: Sterling SMR-1000 1KV Hand-Cranked Analogue Insulation Tester

$ 95.00 CAD

Sale Sold out

SMR-1000 is a compact, roggedly constructed portable Insulation Resistance Tester with 3 test voltages up to 1000VDC. The hand-cranked generator turns smoothly and quietly, and its output is regulated for increased accuracy and reliable test results. The instrument is housed a die-cast aluminum body
for use in harsh environments.

Features:

Test voltages: 250/500/1000 VDC
Insulaton ranges: 250/500/1000 Mega Ohms
Large, easy to read analogue scale
Reliable hand crank operation
Rugged die-cast housing
Hard Carrying Case supplied
GUARD Terminal eliminate surface leakage current

Specifications:

Test Voltage	250V/500V/1000V
Measuring Ranges	250MΩ/500MΩ/1000MΩ
Accuracy	Class 1.0
Cranking Speed	150r/min
Length of Scale	Approx. 80mm
Dimension	215mm x 135mm x 130mm
Temperature & Humidity	-20 degC to 50degC, humidity < 85%
External Magnett Field Influence	<1% of full scall length at a Magnet Field Influence of 5 Oersted
Weight	Approx. 2.5 kg
Damping Time	Within 4 sec
Accessories	Test leads, carrying case and Instruction Manual, certificate of calibration (available upon request)
