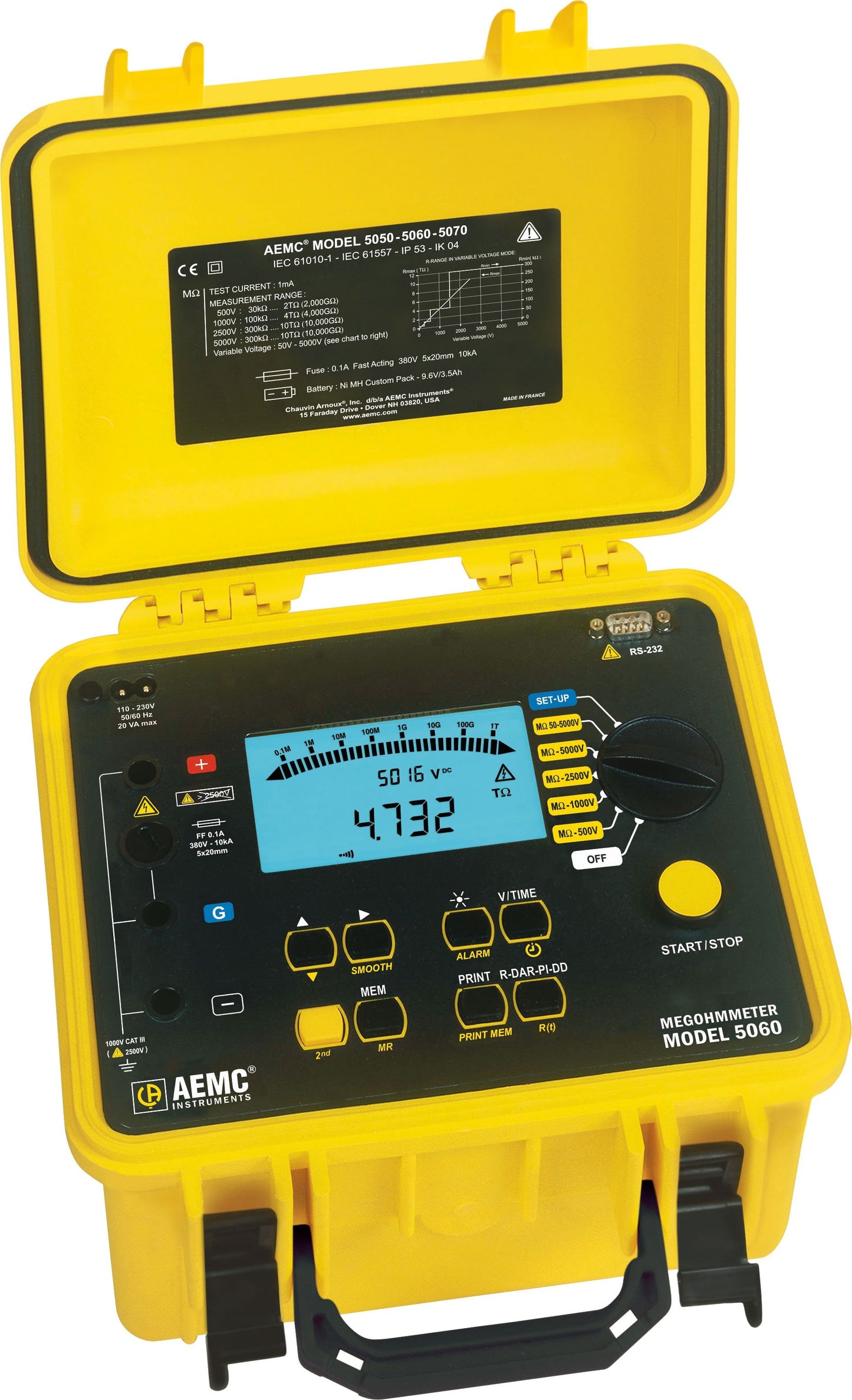

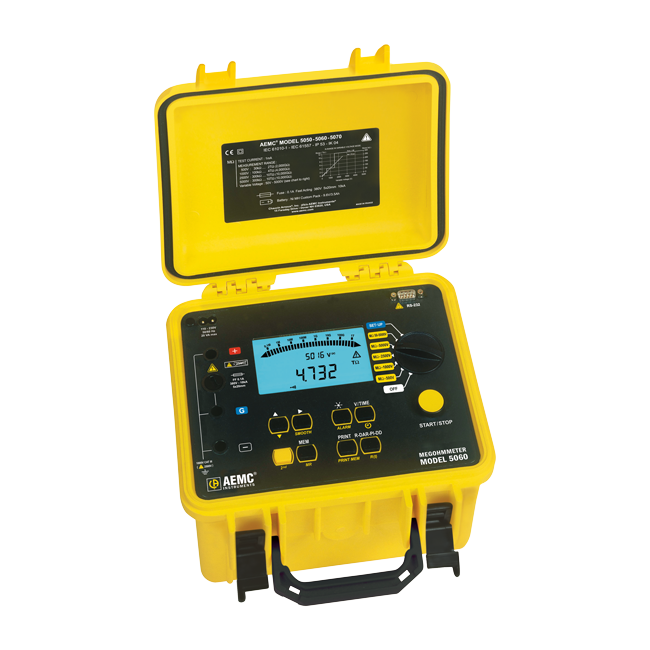

AEMC 5060 – 5kV Digital Megohmmeter with Analog Bargraph & DataView Software

High-Accuracy Insulation Tester with USB Data Export, PI/DAR, and Advanced Reporting

Product Overview:
The AEMC 5060 is a high-performance 5kV digital insulation resistance tester that combines the precision of a digital display with the intuitive visual feedback of an analog bargraph. Designed for industrial, utility, and electrical maintenance professionals, it delivers insulation resistance measurements up to 10 TΩ, along with full PI (Polarization Index) and DAR (Dielectric Absorption Ratio) capabilities.

With USB connectivity and DataView® software, the 5060 allows for seamless test result storage, trend analysis, and report generation. It’s ideal for testing transformers, motors, switchgear, and other high-voltage equipment in field and laboratory settings.

Key Features:

• Selectable Test Voltages: 500 V, 1000 V, 2500 V, 5000 V

• Insulation Resistance Range: Up to 10 TΩ

• PI & DAR Testing – Automatically calculated

• Digital + Bargraph Display for real-time monitoring

• Built-in Memory – Stores up to 1280 test results

• USB Interface with DataView® Software for reporting and trend analysis

• Programmable Test Timer and Auto Stop Functions

• Automatic Discharge of Tested Object

• Live Voltage Detection with Test Inhibit

• Rugged, Field-Ready Housing – IEC 61010 CAT IV 600 V Rated

Best For:

• Predictive and preventive maintenance

• Power utility diagnostics

• Electrical QA testing for motors, cables, and switchgear

• Test labs and compliance inspections

• Industrial equipment servicing

What’s Included:

• AEMC 5060 Insulation Tester

• High-voltage test leads with alligator clips

• USB cable and DataView® Software

• Rugged transport case

• Calibration certificate

• User manual and rechargeable battery pack
