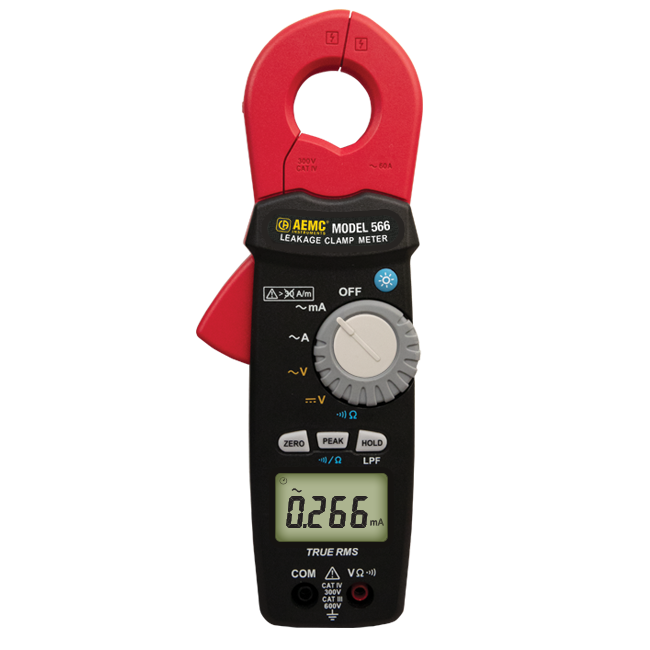

The AEMC Model 566 is a True RMS (TRMS) clamp-on leakage current meter designed to accurately measure low AC currents, typically leakage currents in ground conductors. Its high sensitivity allows detection of currents as low as 0.001 mA with resolutions up to 1 μA, achieved through specialized jaw construction and critical shielding to minimize noise interference.
Beyond leakage current measurements, the Model 566 functions as a standard clamp-on meter, measuring up to 60 Arms, and offers additional capabilities including AC/DC voltage measurement, resistance, continuity testing with a buzzer, and frequency measurements. A low-pass filter (LPF) can be activated to isolate 50/60 Hz fundamental frequencies, ignoring higher-order harmonics.
Ergonomically designed for one-handed operation, the compact jaws accommodate conductors up to 0.91" (23 mm) in diameter, making it suitable for various applications in industrial, commercial, and residential settings.
Key Features
-
Leakage Current Measurement: Detects leakage currents down to 0.001 mA with 1 μA resolution
-
Current Measurement Ranges: 6 mA / 60 mA / 600 mA / 6 A / 60 A (AC)
-
Voltage Measurement: Up to 600 V AC/DC
-
Resistance Measurement: Up to 600 kΩ
-
Continuity Testing: Audible buzzer activates below 45 Ω
-
Frequency Measurement: Measures Hz on both voltage and current inputs
-
Low-Pass Filter (LPF): Isolates 50/60 Hz fundamental frequencies
-
Hold Function: Freezes the current reading on display
-
MAX Function: Captures and displays the highest measured value
-
Zero Function: Allows for relative measurements
-
Backlit LCD Display: Ensures readability in low-light conditions
-
Safety Compliance: EN/IEC 61010 600 V CAT III
Technical Specifications
-
Voltage Range: 600 V AC/DC (Auto-Ranging)
-
Current Ranges (AC): 6 mA / 60 mA / 600 mA / 6 A / 60 A
-
Resolution (Current): 1 μA (6 mA range), 10 μA (60 mA), 100 μA (600 mA)
-
Accuracy (Current): ±1.0% of reading ±5 counts (50–60 Hz)
-
Resistance Range: Up to 600 kΩ
-
Frequency Range: Up to 500 Hz on voltage and current inputs
-
Jaw Opening: 0.91" (23 mm)
-
Display Count: 6000 counts
-
Power Supply: 2 × AAA batteries (included)
-
Battery Life: Approximately 40 hours (AC functions), 60 hours (DC and resistance functions)
-
Dimensions: 8.27 × 3 × 1.32 inches (210 × 76 × 33.5 mm)
-
Weight: 10.4 oz (296 g) with batteries
-
Operating Temperature: 0°C to 40°C (32°F to 104°F)
-
Storage Temperature: -10°C to 60°C (14°F to 140°F)
-
Operating Humidity: Up to 80% RH at 40°C
Applications
-
Leakage Current Detection: Identify insulation breakdowns and unintended current paths in electrical systems.
-
Preventive Maintenance: Monitor equipment for early signs of insulation degradation.
-
Energy Audits: Assess and reduce energy losses due to leakage currents.
-
Compliance Testing: Ensure systems meet safety standards by verifying leakage current levels.
What's Included
-
AEMC Model 566 Clamp-On Leakage Current Meter
-
Soft carrying case
-
Two color-coded 5 ft test leads (red and black)
-
Two 1.5 V AAA (LR03) batteries
-
User manual
