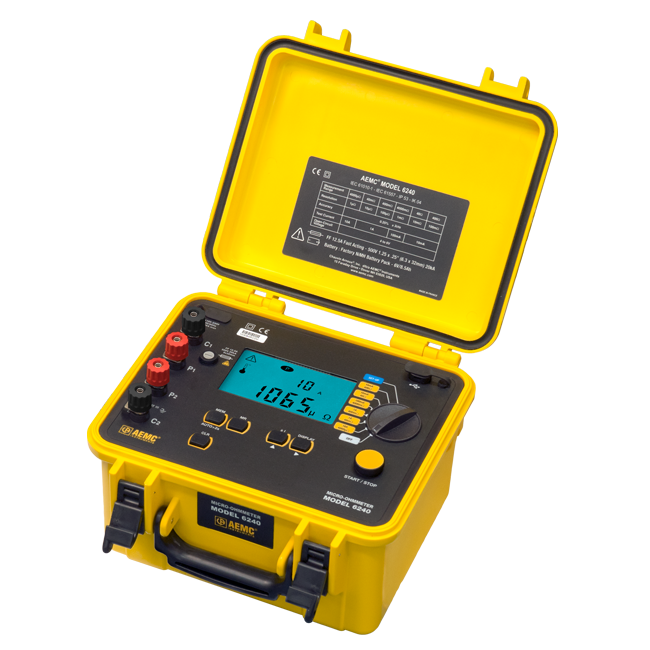

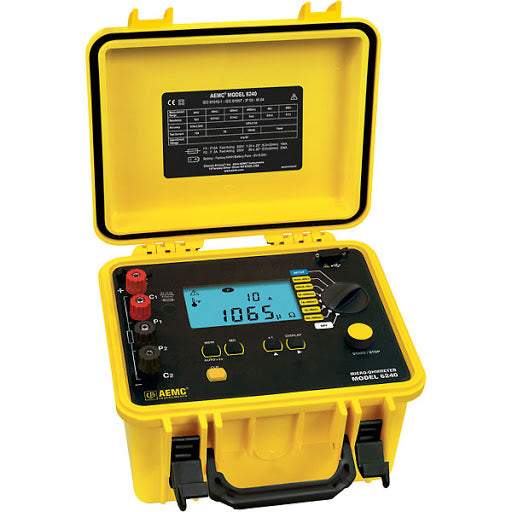

AEMC 6240 Micro-Ohmmeter with DataView® Software (10A)
The AEMC 6240 is a rugged, precision micro-ohmmeter designed for low-resistance measurements in demanding field and industrial environments. With a test current of up to 10A and advanced data reporting capabilities, it's ideal for quality control, maintenance, and diagnostics of conductive components and bonding integrity.
Designed for professionals in power distribution, aerospace, manufacturing, and rail, the 6240 delivers accurate, repeatable low-resistance measurements from 1μΩ to 400Ω—right where you need them.
⚙️ Key Features
- Test current: selectable from 1mA to 10A (true DC)
- Measuring range: 1μΩ to 400Ω across 6 auto-ranging scales
- Measurement accuracy up to ±0.25% with temperature compensation
-
Kelvin (4-wire) measurement method for precision readings
- Stores up to 1,500 test results with time/date stamps
- USB communication + free DataView® software for reporting and analysis
- Bright backlit digital display and intuitive push-button control
📦 What’s Included
- AEMC 6240 micro-ohmmeter
- Set of Kelvin probes (test leads)
- USB cable and 8 GB flash drive with DataView® software
- Rechargeable battery pack
- Hard carrying case
- User manual and quick-start guide
🎯 Ideal Applications
- Ground bonding and electrical connection integrity testing
- Busbar, switchgear, and breaker contact resistance measurement
- Quality control for welding, cable splicing, and mechanical bonds
- Testing of transformer winding and motor coil resistance
🛠️ We Service What We Sell
Duncan Instruments calibrates and supports the AEMC 6240 at our Canadian facility. Whether you need annual certification, repair, or help interpreting your test data, our experienced technicians are here to assist.
💬 Need a Quote or Technical Support?
This is a high-precision instrument—if you need help selecting the right model or want documentation for your purchasing department, contact us. We’re happy to help.
