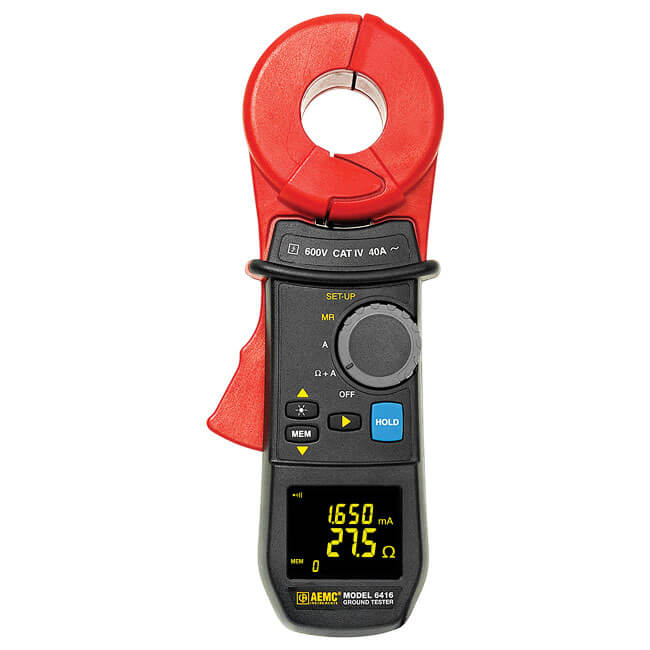

AEMC 6416 Clamp-On Ground Resistance Tester
AEMC 6416 Clamp-On Ground Resistance Tester
AEMC 6416 Clamp-On Ground Resistance Tester

AEMC 6416 Clamp-On Ground Resistance Tester

Regular price $ 1,880.00 CAD $ 2,075.62 CAD Sale

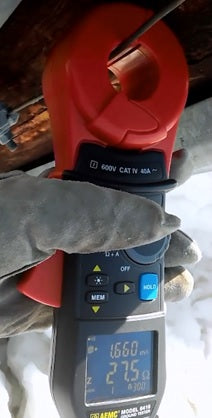

The Ground Resistance Tester Model 6416 measures ground rod and grid resistance and impedance without the use of auxiliary rods. Clamp-on ground resistance testers can be used in multi-grounded systems without disconnecting or de-energizing the ground system under test. The Model 6416 simply clamps around the grounding electrode or conductor and measures the resistance to ground. By performing measurements on intact ground systems, the user also verifies the quality of the grounding connections and bonds. Resistance and continuity of grounding loops around pads and buildings may also be measured.

Features

  • High sensitivity measurement function of leakage current flowing to ground or circulating in ground loops from 0.2mA to 40A
  • Resistance measurement from 0.01 to 1500Ω
  • Contact voltage indication warns of unsafe conditions
  • Selectable test frequency improves accuracy in inductive environments
  • Noise icon and buzzer alert user to presence of dangerous voltage and current levels
  • Multi-function bright yellow organic display (OLED)
  • Data storage function with time-stamping (up to 2000 measurements stored)
  • Battery life information at power-up and auto power off function
  • Large jaw opening of 35mm
  • Rugged Lexan® head and body construction resists breakage
  • Designed to EN61010-1, 600V Cat. IV safety standards
  • Includes hard carrying case, calibration loop, batteries, USB stick and user manual

Applications

  • Ground electrode system resistance
  • Bonding/continuity checks
  • Cell tower grounding verification
  • Ground measurements on Railroad signalling systems

Specifications

Ground Resistance
Range 0.010 to 0.099Ω 0.10 to 0.99Ω 1.0 to 49.9Ω 50.0 to 99.5Ω 100 to 199Ω 200 to 395Ω 400 to 590Ω 600 to 1150Ω 1200 to 1500Ω
Resolution 0.001Ω 0.01Ω 0.1Ω 0.5Ω 10Ω 50Ω 50Ω
Accuracy (% of Reading) ±1.5% ±0.01Ω ±1.5% ±0.01Ω ±1.5% ±0.1Ω ±2% ±0.5Ω ±3% ±1Ω ±5% ±5Ω ±10% ±10Ω 20% approx 25% approx
Auto-Ranging 1mA to 40A
Range 0.200 to 0.99mA 1.000 to 2.990mA< 3.00 to 9.99mA 10.00 to 29.90mA 30.0 to 99.9mA 100.0 to 299.0mA 0.300 to 0.990A 1.000 to 2.990A 3.00 to 39.99A
Resolution 1µA 10µA 10µA 100µA 100µA 1mA 1mA 10mA 10mA
Accuracy (% of Reading) ±2% ±50µA ±2% ±50µA ±2% ±50µA ±2% ±100µA ±2% ±100µA ±2% ±1mA ±2% ±1mA ±2% ±10mA ±2% ±10mA
Current Measurement
Range 0.200 to 0.999mA
Resolution 1µA
Accuracy (% of Reading) ±2% ±50µA



Included with the AEMC 6416

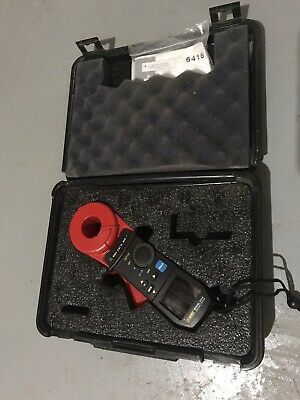

  • Clamp-On ground resistance tester
  • Hard carrying case
  • Calibration loop
  • 4 x 1.5V AA batteries
