Regular price $ 2,993.00 CAD $ 1,995.00 CAD Sale

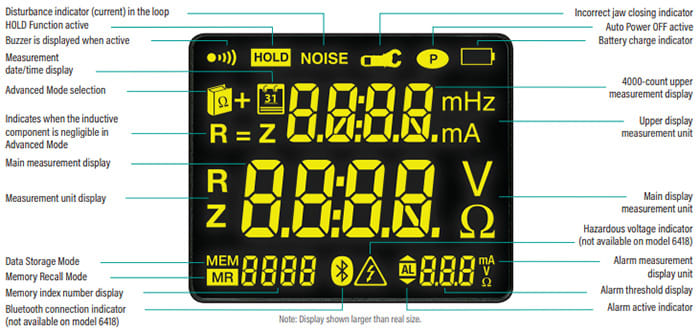

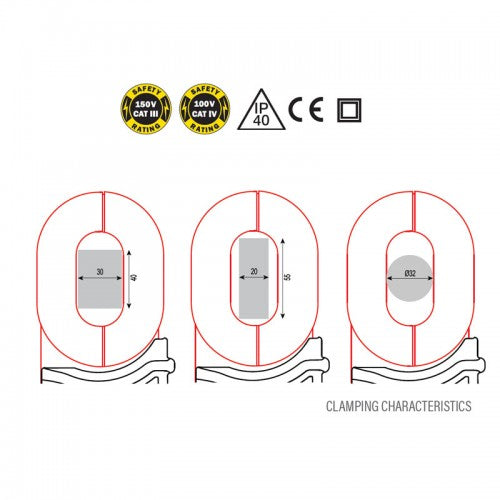

Use for quick testing of earth loops, this ground resistance meter's clamping capacity allows measurements on 1.18 x 1.57" (30 x 40 mm) and 0.78 x 2.16" (20 x 55 mm) rectangular bars and cables 1.26" (32 mm) in diameter. It simultaneously displays the earth-loop resistance and the leakage current.

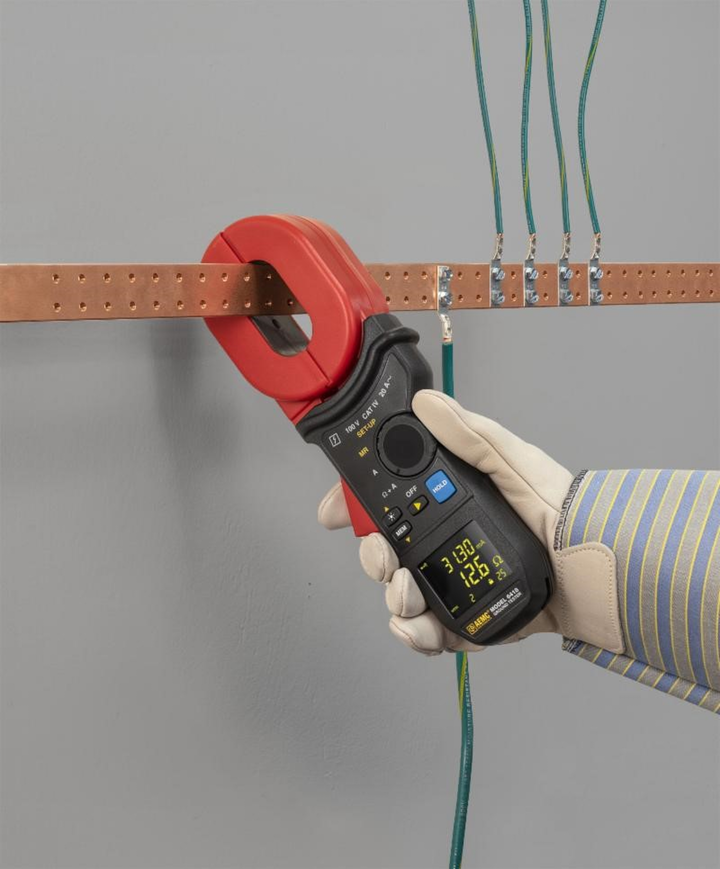

This ground resistance tester measures ground rod, busbar, and grid resistance and impedance without the use of auxiliary rods. It simply clamps around the grounding electrode or conductor and measures the resistance to ground. By performing measurements on intact ground systems, the user also verifies the quality of the grounding connections and bonds. Resistance and continuity of grounding loops around pads and buildings may also be measured.

Features

  • Loop resistance measurement from 0.01 to 1200 Ω
  • Current measurement from 0.5 mA to 20 A
  • Alarms available in Ω and A
  • Time/date-stamped storage of 300 measurements
  • Automatic calibration of the jaw gap
  • Recalibration possible without returning to factory

AEMC 6418 Specifications

Loop Ohmmeter
Measurement Ranges 0.010 to 0.099 Ω
0.10 to 0.99 Ω
1 to 49.9 Ω
50 to 149 Ω
150 to 245 Ω
250 to 440 Ω
450 to 640 Ω
650 to 1200 Ω
Resolution 1 mΩ
10 mΩ
100 mΩ
1 Ω
5 Ω
10 Ω
50 Ω
Accuracy ±(1.5% R + 0.01 Ω)
±(1.5% R + 2 r
±(2.5% R + 2 r)
±(5% R + 2 r)
±(10% R + 2 r)
±(15% R + 2 r)
±(20% R + 2 r)
No-Load Voltage ≤4.5 mV to 2083 Hz
Anmeter
Measurement Ranges 0.5 to 9.995 mA
10.00 to 99.90 mA
100.0 to 299.0 mA
0.300 to 2.990 A
3.00 to 20.00 A
Resolution 50 μA
100 μA
1 mA
10 mA
100 mA
Accuracy ±(2% R + 200 μA)
±(2% R + r)
Setup
Alarms Configurable for Z and I
Buzzer Active
HOLD Manual or automatic PRE-Hold
Automatic Power-Off Active/Inactive
General Specifications
Power Supply 4 x 1.5 V LR6 AA alkaline batteries or 4 x NiMH batteries
IEC 61010 100 V CAT IV , 150 V CAT III
Ingress Protection IP 40
Dimensions 11.8 x 4.17 x 2.2" (300 x 106 x 56 mm)
Weight 2.65 lbs (1.2 kg) approx. including batteries


What's included with the AEMC 6418

  • Ground Resistance Tester

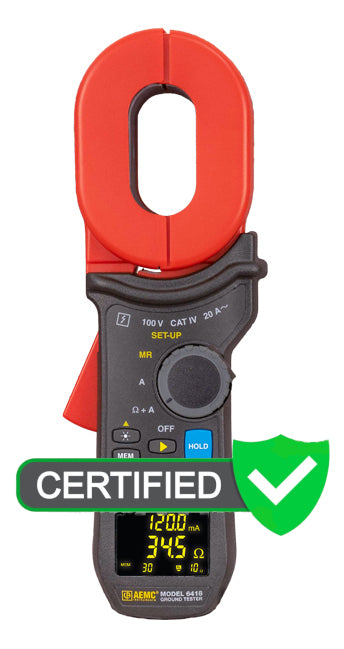

  • Verification Certificate
  • Wrist Strap
  • CD Containing the Operating Manuals
  • Multilingual Safety Datasheet
  • Multilingual Quick Start Guide
  • 4 x Batteries

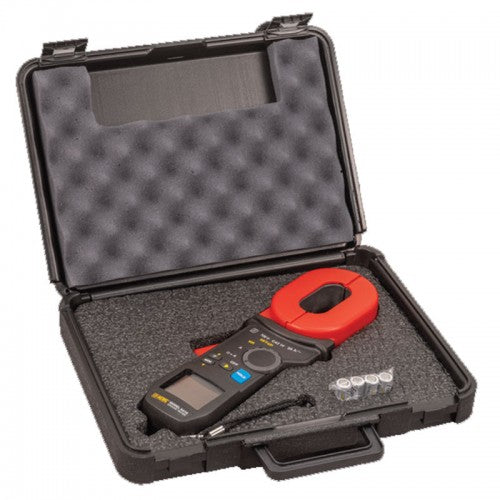

  • Carrying Case
