Reliable 5kV Insulation Resistance Tester with Built-In Data Storage and Trend Analysis
Product Overview:

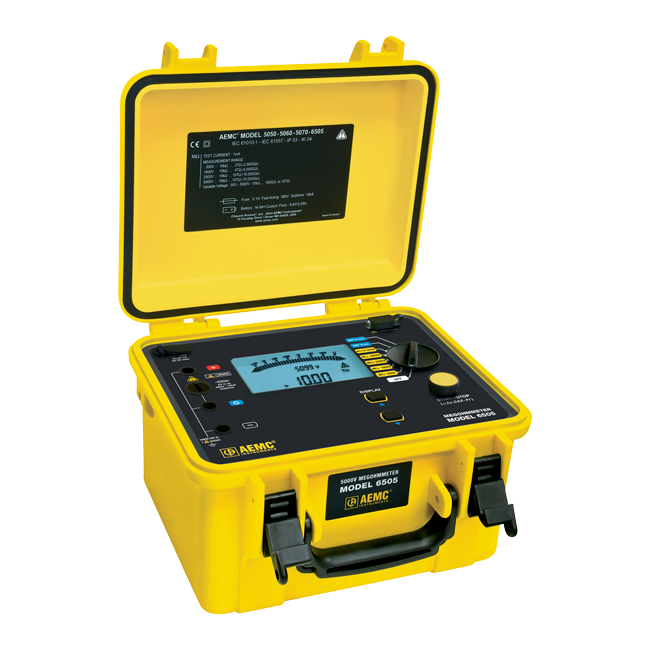

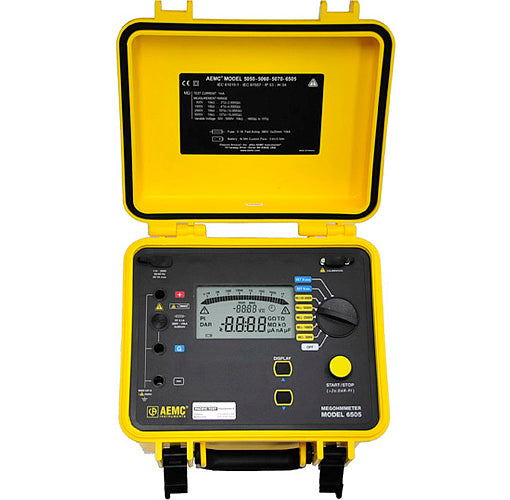

The AEMC 6505 is a professional-grade 5kV digital insulation resistance tester designed for industrial, utility, and commercial electrical systems. With selectable test voltages up to 5000 V and insulation resistance measurements up to 10 TΩ, it offers exceptional range and accuracy. The dual display format—digital readout plus analog bargraph—provides real-time trend visibility for accurate diagnostics.
Equipped with automatic DAR and PI testing, USB data transfer, and internal memory for up to 300 test results, the AEMC 6505 is ideal for predictive maintenance and acceptance testing in motors, switchgear, cables, and transformers.
Key Features:
-
Test Voltages: 500 V, 1000 V, 2500 V, 5000 V
-
Insulation Resistance Range: Up to 10 TΩ
-
Auto PI (Polarization Index) and DAR (Dielectric Absorption Ratio)
-
Dual Display: Digital + analog-style bargraph
-
Real-Time Trend Display with programmable test timer
-
USB Communication & Internal Memory (stores up to 300 tests)
-
Automatic Discharge & Test Inhibit on Live Circuits
-
Rugged Carrying Case with Field-Ready Design
-
Meets IEC 61010, EN 61557, CAT IV 600 V Safety Standards
Best For:
-
Utility and substation diagnostics
-
Industrial equipment and plant maintenance
-
Transformer and motor acceptance testing
-
High-voltage cable integrity checks
-
Compliance and quality control labs
What’s Included:
-
AEMC 6505 Insulation Tester
-
High-voltage test leads with clamps
-
USB cable and DataView software
-
Carrying case
-
User manual
-
Factory calibration certificate
-
Batteries (pre-installed)
🔍 How It Compares:
Feature |
AEMC 6505 |
Kyoritsu 3127 |
Metrel MI 3205 |
Max Test Voltage |
5000 V |
5000 V |
5000 V |
Max Resistance Range |
10 TΩ |
10 TΩ |
10 TΩ |
PI/DAR Testing |
✅ Auto |
✅ Manual |
✅ Yes |
Display Type |
Digital + Bargraph |
Digital + Graphical |
Graphical |
Internal Memory |
✅ 300 results |
✅ Yes |
✅ Yes |
USB/PC Connectivity |
✅ USB + Software |
✅ USB |
✅ USB + RS232 |
Best Use |
Field diagnostics + reports |
Utility diagnostics |
Lab + predictive maintenance |
