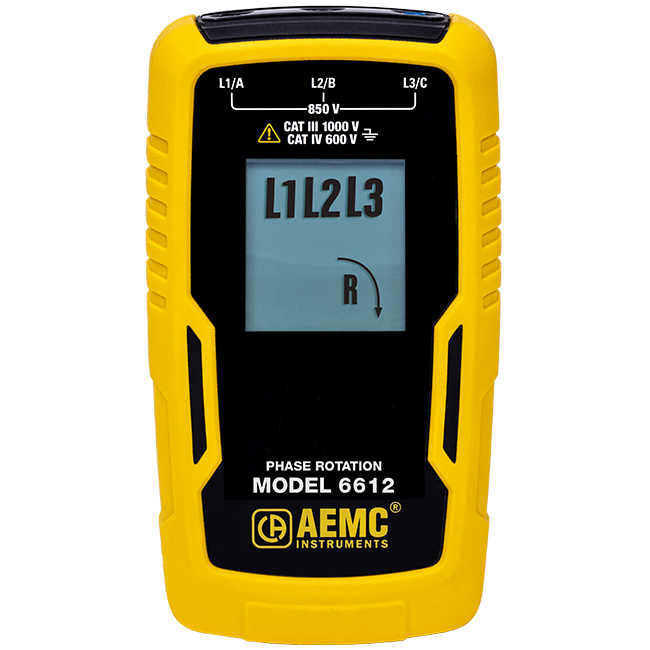

AEMC 6612 – Phase Rotation Meter

The AEMC 6612 is a compact and rugged instrument designed to identify phase rotation on 3-phase systems and detect live and open/de-energized phases. Ideal for installing rotating machinery or motors, and for checking generator output, this meter ensures proper sequencing for three-phase power systems.

⚙️ Key Features:

• Phase Rotation Detection: Identifies phase rotation on 3-phase systems.

• Live Phase Identification: Detects live and open/de-energized phases.

• Automatic Testing: Initiates testing as soon as the instrument is connected.

• Color-Coded Leads and Jacks: Simplifies connection with color-coded leads (red, black, blue) and jacks for common U.S. phase colors.

• Safety Compliance: Internally protected by a high impedance circuit to limit current to user-safe limits.

• Compact Design: Lightweight and easy to handle, suitable for field use.

📐 Specifications:

• Operating Voltage: 40 to 850 VAC between phases

• Frequency Range: 15 to 400 Hz

• Test Current: 1 mA

• Power Supply: Line powered

• Dimensions: 5.3 x 2.9 x 1.2 inches (135 x 75 x 31 mm)

• Weight: 4.83 oz (137 g)

• Safety Ratings:

  • IEC 61010-1, IEC 61557-7

  • 1000V CAT III, 600V CAT IV

• Ingress Protection: IP40

🎓 Applications:

• Phase rotation verification in 3-phase systems

• Plant maintenance and troubleshooting

• Electrical device installation

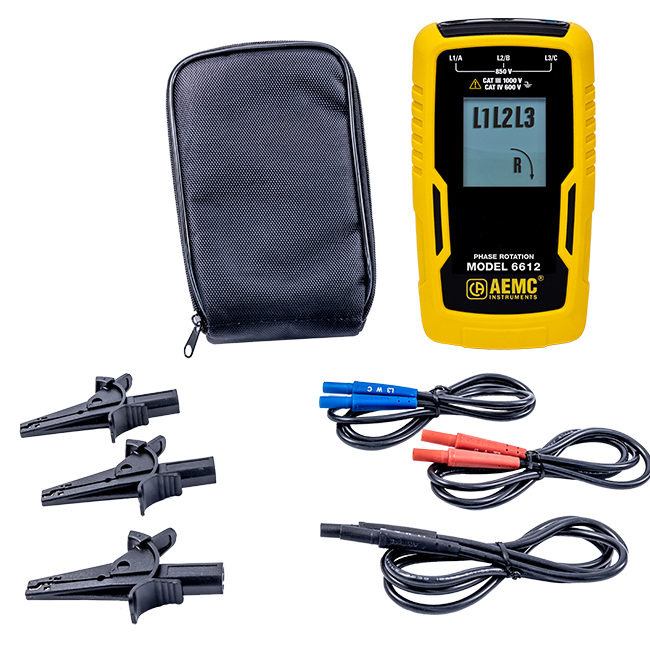

📦 What's Included:

• Model 6612 Phase Rotation Meter

• (3) 4 ft. color-coded test leads (red, black, blue)

• (3) color-coded alligator clips (black)

• Soft carrying case

• User manual
