AEMC AL834 Simple Logger II AC Current Data Logger, 300/3000 A
Regular price$ 1,926.67 CAD$ 1,795.55 CADSale
Four-channel AC current data logger with four integral flexible current sensors. Features two measurement ranges of up to 30 and 3000A per channel and wireless Bluetooth data communication.
The AL834 Simple Logger® II (Bluetooth Edition) has two measurement ranges of up to 300 and 3000 Amps. Both the data logger housing and the current sensors are water resistant rated to IP 65. A selection of data storage modes, as well as data sampling rates is user programmable through the DataView® application software provided. Up to 1,000,000 measurements can be stored in internal nonvolatile memory.
The Model AL834 is powered by four C cell alkaline batteries capable of providing six months or longer recording time. Data storage rates as fast as 8 per second are user programmable. Communication to the DataView® software is accomplished through wireless Bluetooth technology. The Bluetooth adapter, provided, facilitates this communication link.

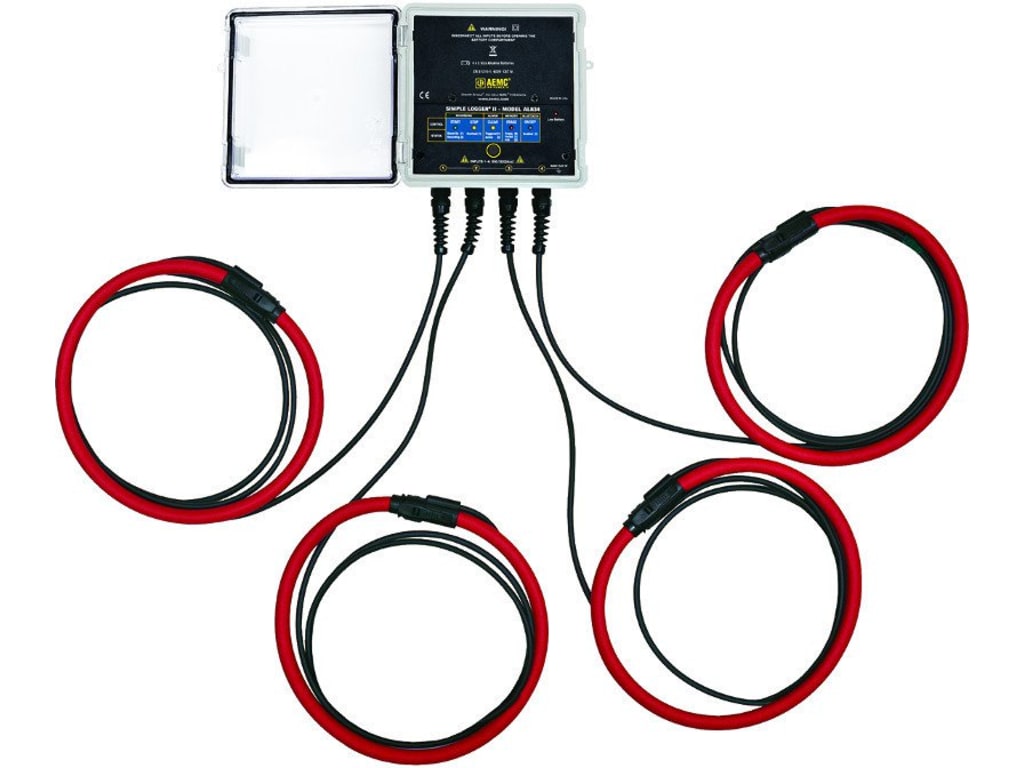

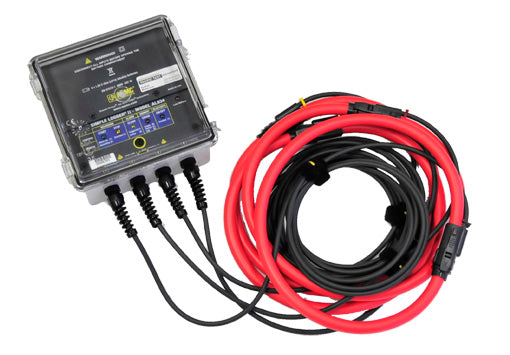

Includes four integral AmpFlex®flexible current probes that will measure up to 3000A TRMS with 0.1A resolution
Dual range 300/3000A user selectable per channel
64 samples per cycle
Programmable storage rates from 125ms to 1 day
4 user selectable storage modes
Stores up to 1,000,000 measurements in non-volatile memory
Powered by standard Alkaline batteries for a period of 180 days or more
Lightweight, compact, weatherproof
6 LED indicators quickly and clearly display logger status
Wireless Bluetooth communication (Bluetooth Module included)
Includes FREE DataView®software for data storage, real-time waveform display analysis & report generation
EN 61010-1; 600V CAT IV, 1000V CAT III
Single/split phase and 3 phase monitoring
Neutral and ground current monitoring
Intermittent problem detection
Harmonic current monitoring using DataView®software
