AEMC PEL 113 Power & Energy Logger Kit

3-Phase Logger with LCD Display & 3 MiniFlex Sensors

The AEMC PEL 113 is a compact, feature-rich power and energy logger designed for comprehensive monitoring of electrical systems. With a built-in backlit LCD, it gives you on-the-spot access to real-time data—ideal for technicians performing energy audits, load studies, and electrical diagnostics.

This kit (Cat. #2137.54) includes three MA193-10-BK MiniFlex sensors, an assortment of accessories, and DataView® software for advanced analysis.

🔧 Key Features

• Supports multiple configurations – Single-phase, split-phase, and 3-phase (Y, Δ) systems

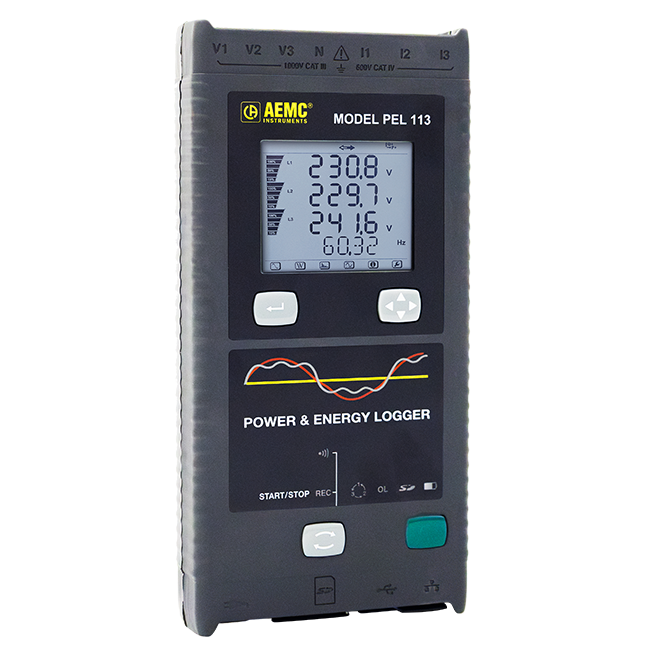

• Built-in LCD screen – View voltage, current, power, and energy readings directly from the device

• True RMS measurements – Accurately captures complex waveforms and harmonics

• Auto-recognition of current sensors – Ensures proper configuration without guesswork

• Log V, A, W, VA, var, PF, THD, kWh, and more

• High measurement accuracy – ±0.2% R ±0.2V for voltage readings

• Data storage on SD card (8 GB included) – Supports extended monitoring campaigns

• Connect via USB, Ethernet, or Wi-Fi – Easily download data or monitor remotely

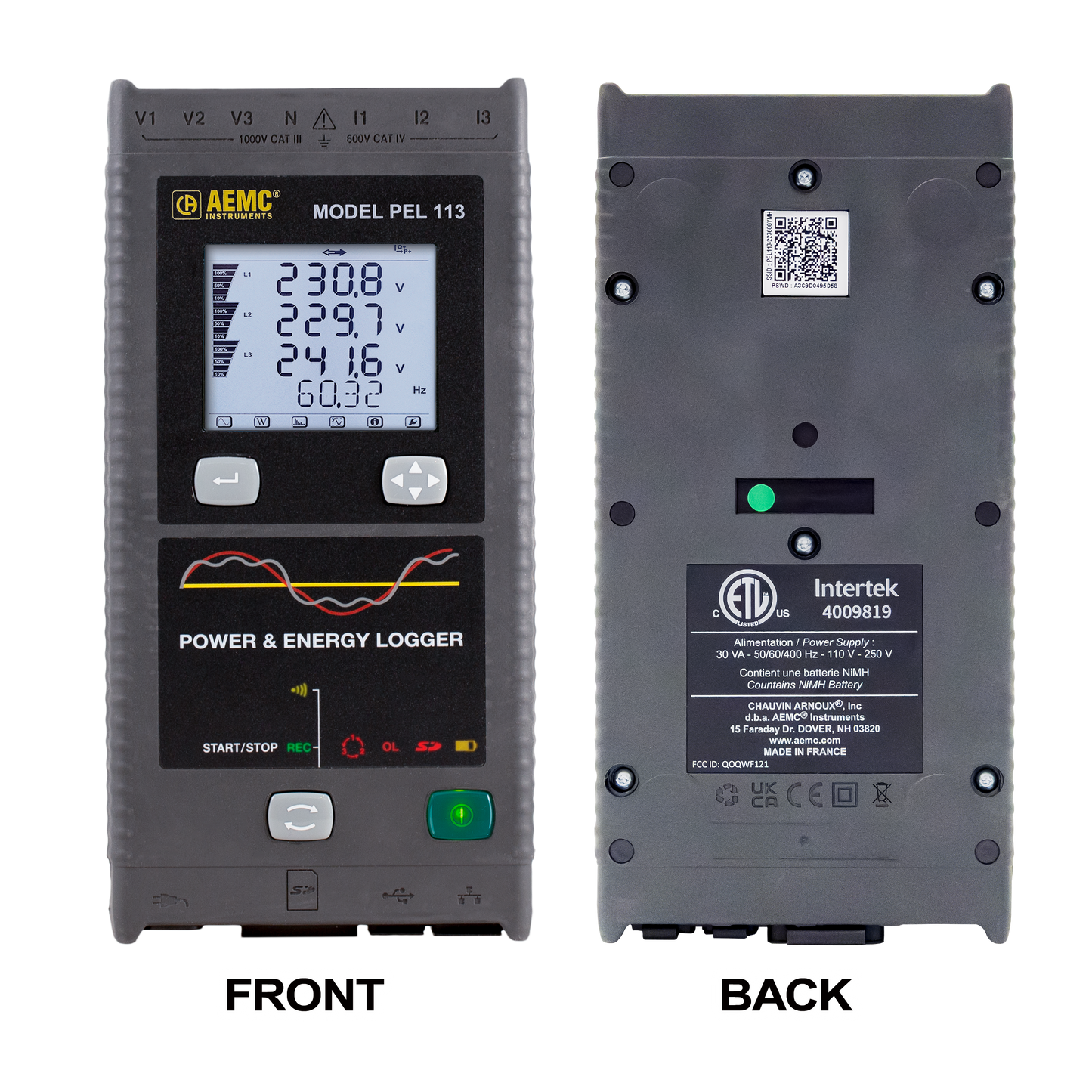

• Magnetized back – Quick and secure installation inside load center panels

🧰 What’s Included (Cat. #2137.54)

• AEMC PEL 113 power & energy logger with LCD display

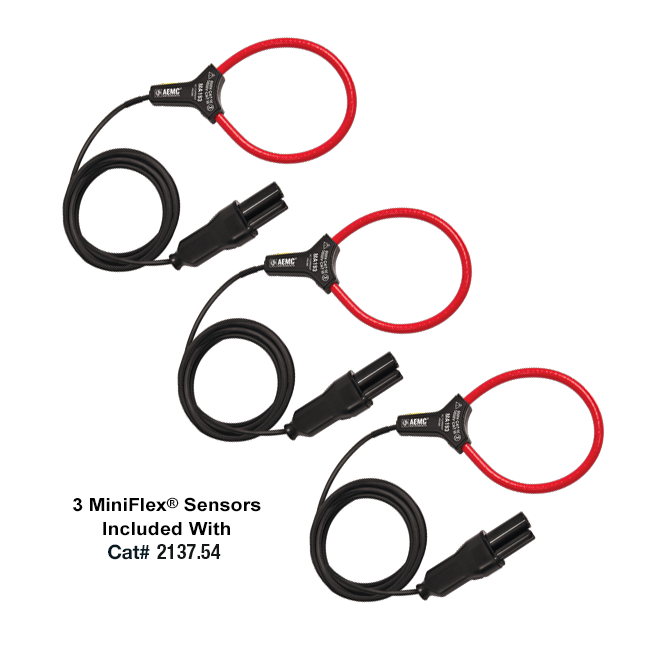

• (3) MA193-10-BK MiniFlex current sensors

• Small classic tool bag

• (4) 10 ft black test leads in a cable reeling box

• (4) Alligator clips

• Set of (12) color-coded input ID markers

• 5 ft USB Type A to Type B cable

• 5 ft 115 V power cord

• NiMH AAA 8.4 V battery (pre-installed)

• 8 GB SD card with USB SD card reader

• Safety and compliance sheets

• Printed Quick Start Guide

• USB drive with DataView® software and full user manual

📌 Use Cases

• Facility energy audits

• Load profiling

• Electrical troubleshooting

• Utility submetering

• Motor performance analysis
