AEMC PEL 115 Power & Energy Logger

IP67 Logger with LCD Display, Wi-Fi, and 3 MA193-10-BK Sensors

Designed for demanding fieldwork, the AEMC PEL 115 is a rugged, waterproof (IP67) power and energy logger that delivers high-precision monitoring in both indoor and outdoor environments. With a built-in LCD, Wi-Fi connectivity, and three flexible MA193-10-BK current sensors included, this kit is ready for serious energy audits, load studies, and facility diagnostics.

🔧 Key Features

• True RMS measurements: V, A, W, VA, var, PF, THD, kWh, and more

• Supports all common configurations: Single-phase, split-phase, and 3-phase (Y, Δ)

• IP67-rated housing: Built for industrial and outdoor applications

• Wide voltage range: 10 to 1000 V AC/DC

• Current range: Up to 6500 A (sensor-dependent; 3000 A with MA193-10-BK)

• Real-time display: Built-in LCD screen for field diagnostics

• Auto-recognition of current sensors and phase detection

• SD card data logging (8 GB included, expandable to 32 GB)

• Multiple connectivity options: USB, Ethernet, and Wi-Fi (Wi-Fi Direct supported)

• DataView® software included for real-time analysis and custom reports

🧰 What’s Included (Cat. #2137.56 – Complete Kit)

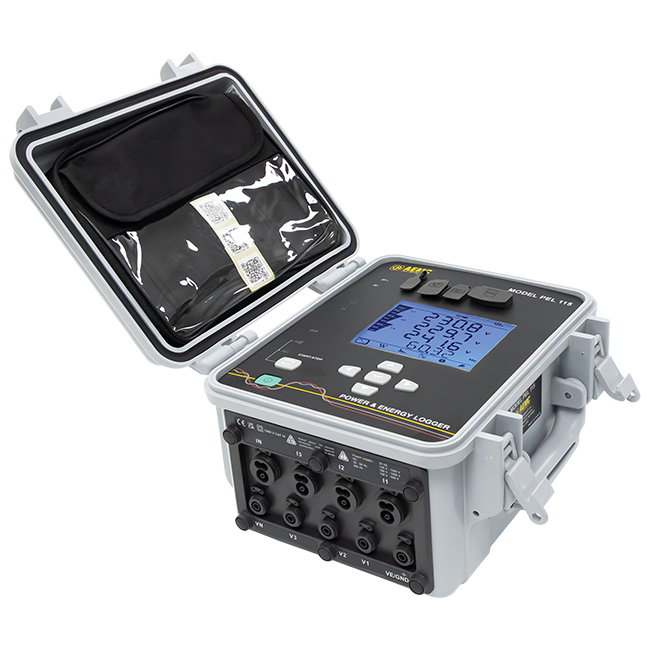

• AEMC PEL 115 logger with LCD display

• (3) MA193-10-BK MiniFlex current sensors

• (5) 10 ft test leads with waterproof caps

• (5) Alligator clips

• (4) Large and (5) small watertight caps

• (12) Color-coded input ID markers

• 5 ft USB Type A to Type B cable

• 110/230 V power adapter with US plug

• NiMH 9.6 V battery (pre-installed)

• 8 GB SD card with USB SD card reader

• Extra large rubber-bottom carrying bag

• USB drive with DataView® software and user manual

• Printed Quick Start Guide

• Safety and compliance documentation
