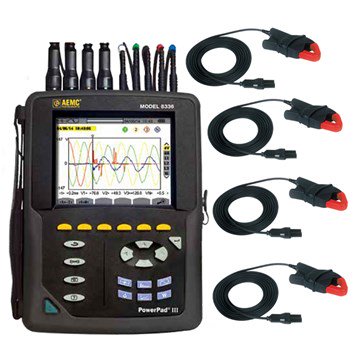

AEMC PowerPad® III 8336 Power Quality Analyzer w/4 6A/120A current probes
AEMC PowerPad® III 8336 Power Quality Analyzer w/4 6A/120A current probes
AEMC PowerPad® III 8336 Power Quality Analyzer w/4 6A/120A current probes

AEMC PowerPad® III 8336 Power Quality Analyzer w/4 6A/120A current probes

Regular price $ 7,895.00 CAD Sale

AEMC Catalog #: 2136.32

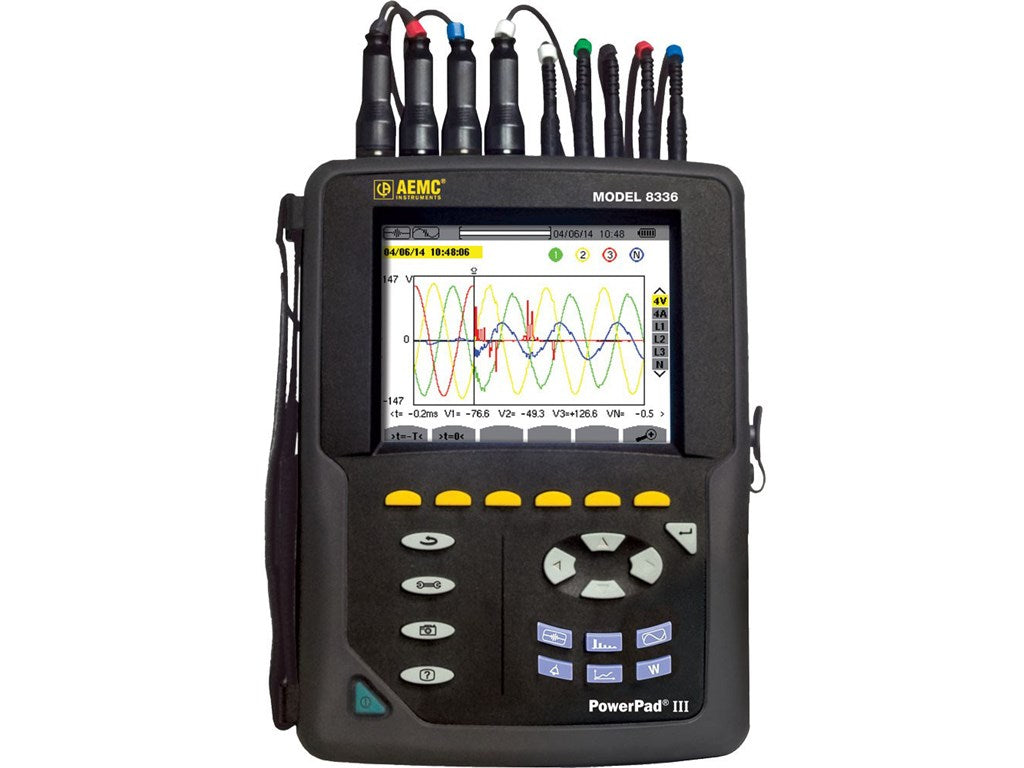

The PowerPad® III Model 8336 is a three-phase power quality analyzer that is easy-to-use, compact and shock resistant. It enables technicians and engineers to measure and carry out diagnostics and power quality work on one-, two- or three- phase networks. Five voltage and four current inputs are provided. It is IEC 61000-4-30 Class B and safety rated to 600V CAT IV.

KEY FEATURES

  • Four w/4 MN193-BK Probes Rated (6A/120A)
  • Direct measurement of neutral current & voltage
  • Frequency measurement (40 to 69Hz systems)
  • Record and display trend data as fast as once per second for one month for up to 25 variables
  • Transient detection on all V and I inputs (up to 210)
  • Selectable PT and CT ratios
  • Inrush current measurement
  • Calculation of Crest Factors for V and A
  • Calculation of the K-Factor for transformers
  • Calculation of short-term and long-term flicker
  • Calculation of the Three-Phase voltage unbalance
  • Harmonic measurements (referenced to the fundamental or RMS value) for voltage, current or power, up to 50th  harmonic
  • Displays of harmonic sequencing and direction and calculation of overall harmonics
  • Real-time display of Phasor diagrams including values and phase angles
  • Monitors the average value of any parameter, calculated for a period from 1 sec to 2 hrs
  • Measurement of active, reactive and apparent power per phase and their respective sum total
  • Calculation of power factor, displacement power factor and tangent factor
  • Recording, time stamping and characterization of disturbance (swells, sags and interruptions, exceedence of power and harmonic thresholds)
  • 2GB internal Trend Recording memory; Alarm, Photo and Transient Inrush memories are separate
  • Measurement of energy VAh, VARh, Wh & VADh
  • The Max and Min RMS measurements are calculated every half-period
  • Includes FREE DataView ®  software for configuring data storage, real-time display, analysis and report generation
  • 65μs/sample trend recording
  • Measurement of TRMS voltages up to 1000Vrms AC/DC for two-, three-, four- or five-wire systems

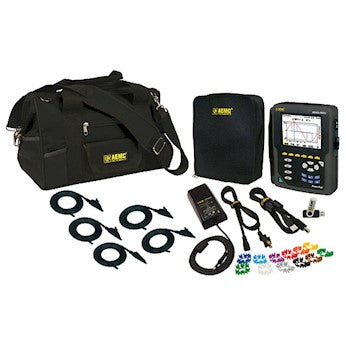

Supplied with

  • Four AEMC MR193-BK AC Current Probes
  • Five 10ft black voltage leads
  • Five black alligator clips
  • NiMH battery
  • Twelve color-coded rings
  • USB cable
  • 110/240V power adapter with US power cord
  • Soft carrying pouch
  • Quick start user guide
  • USB stick
  • DataView software
  • Large classic tool bag
  • User Manual

    3 available models:

    Model 8336 - Cat. #2136.30: Includes extra large tool bag, soft carrying pouch, 5 ft USB cable, five 10 ft black voltage leads with alligator clips, twelve color-coded input ID markers, power adapter 110/230V with US power cord, 9.6V NiMH battery, SD-Card, quick start guide, and a USB stick containing DataView® software and user manual.

    Model 8336 Kit - Cat. #2136.31: Includes four 193-24-BK AmpFlex® sensors, five black 10 ft voltage leads, five black alligator clips, twelve color-coded input ID markers, USB cable, NiMH battery, 110/240V power adapter with US power cord, large classic tool bag, soft carrying pouch, quick start user guide, and USB stick supplied with product user manual and DataView® software.

    Model 8336 Kit - Cat. #2136.31: Includes four MN193-BK probes, five black 10 ft voltage leads, five black alligator clips, twelve color-coded input ID markers, USB cable, NiMH battery, 110/240V power adapter with US power cord, large classic tool bag, soft carrying pouch, quick start user guide, and USB stick supplied with product user manual and DataView® software.
