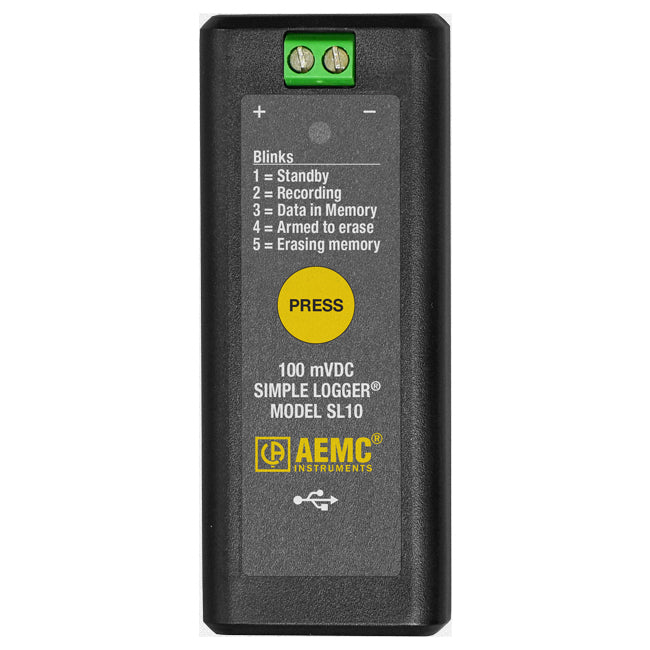

AEMC SL10 Simple Logger® – ±100 mVDC Voltage Data Logger

The AEMC SL10 is a compact, single-channel DC voltage data logger designed for straightforward, battery-powered monitoring. Ideal for electronics labs, R&D teams, or field service technicians, this logger captures and stores DC voltage readings up to ±100 mVDC with minimal setup.

With its one-button operation, 4 million data point memory, and included analysis software, the SL10 is an efficient and affordable choice for low-voltage signal monitoring.

Key Features

• Voltage Range: ±100 mVDC

• Resolution: 0.1 mV

• Accuracy: ±(0.5% of reading + 250 µV)

• Input Impedance: >1 MΩ

• Sample Rate: 16 samples/second

• Storage Rate: 1 second (average of all samples)

• Memory Capacity: 4 million measurements

• Communication Interface: USB 2.0 (Micro-B)

• Battery Life: Approx. 43 days continuous recording

• Power Supply: 2 × AA alkaline batteries or USB power

• Operating Temperature: -10°C to 50°C

• Dimensions: 91.4 × 36.6 × 34.8 mm

• Weight: 99 g with batteries

• Protection Rating: IP40

Applications

• Low-voltage circuit troubleshooting

• Sensor signal monitoring

• Research and development testing

• Bench voltage recording

• Event timing and voltage dips

What’s Included

• AEMC SL10 Logger

• Micro-USB cable

• Quick start guide

• DataView® software (via download)

• Two AA batteries
