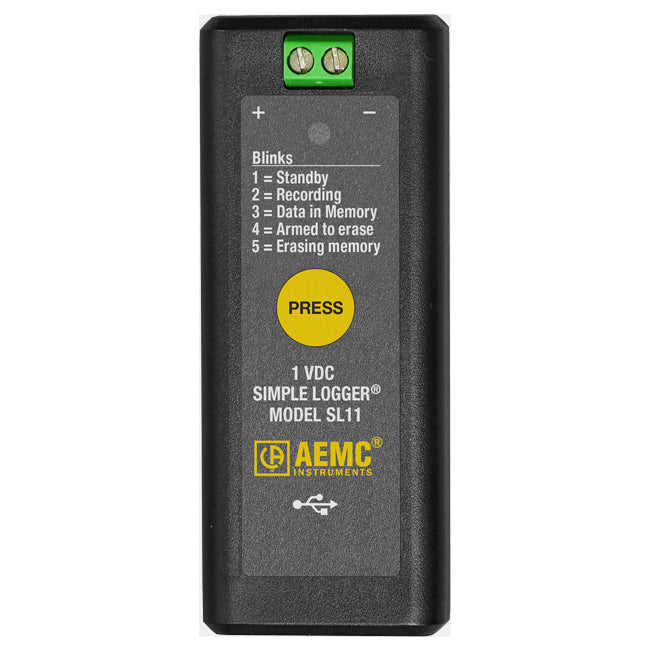

AEMC SL11 Simple Logger® – ±1 VDC Voltage Data Logger

AEMC SL11 Simple Logger® – ±1 VDC Voltage Data Logger

$ 254.90 CAD

The AEMC SL11 Simple Logger® is a compact, single-channel DC voltage data logger designed for straightforward monitoring of low-voltage signals up to ±1 VDC. Ideal for applications such as circuit design troubleshooting, sensor monitoring, and power supply profiling, the SL11 offers:

  • One-button operation for immediate recording.

  • Quick two-wire input via screw terminals.

  • User-configurable settings for scaling, units, and recording duration.

  • Large memory capacity, storing up to 4 million measurements.

  • Included data analysis software for real-time graphing, data download, and report generation.

With its compact design and robust features, the SL11 is an essential tool for professionals requiring reliable and accurate data logging.

Key Features

  • Voltage Range: ±1 VDC

  • Resolution: 1 mV

  • Accuracy: ±(0.5% of reading + 5 mV)

  • Maximum Input Voltage: 60 VDC

  • Input Impedance: 800 kΩ

  • Sample Rate: 16 samples/second

  • Storage Rate: 1 second (average of all samples)

  • Memory Capacity: 4 million measurements (8 MB non-volatile memory)

  • Recording Duration: ≥43 days with new batteries

  • Power Supply: Two 1.5 V AA alkaline batteries or USB 5 VDC

  • Battery Life: Approximately 43 days when recording

  • Communication Interface: USB 2.0 (Micro-B)

  • Operating Temperature: -10°C to 50°C (14°F to 122°F)

  • Storage Temperature: -20°C to 60°C (-4°F to 140°F)

  • Dimensions: 91.44 x 36.58 x 34.8 mm (3.6 x 1.44 x 1.32 in)

  • Weight: 99 g (3.5 oz) with batteries

  • Ingress Protection: IP40

  • Compliance: EMC EN 61326-1, Safety IEC 61010-1

Applications

  • Circuit Design Troubleshooting: Identify and resolve issues in electronic circuits.

  • Sensor Monitoring: Track sensor outputs over time.

  • Power Supply Profiling: Analyze voltage stability and performance.

  • Energy Usage Tracking: Monitor voltage levels to assess energy consumption.

  • Event Sequencing: Determine the order and timing of voltage events.

What's Included

  • AEMC SL11 Simple Logger® Data Logger

  • Micro-B USB Cable

  • Data Analysis Software (available for download)

  • User Manual
