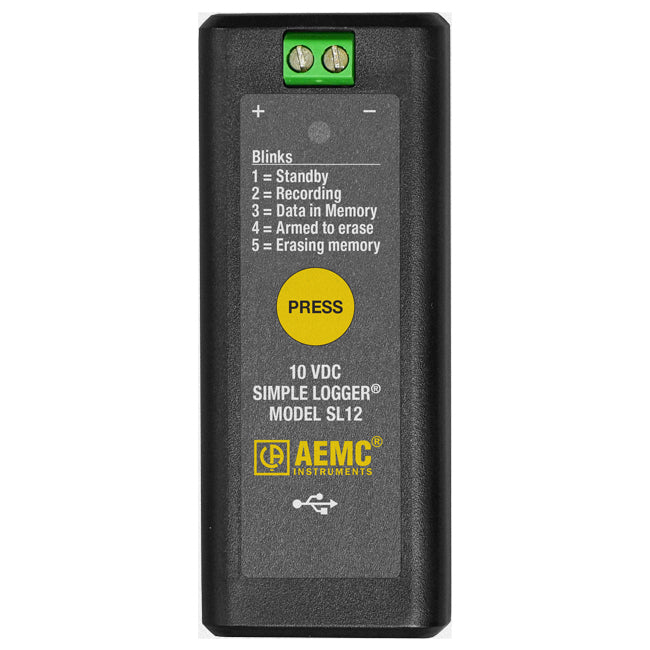

AEMC SL12 Simple Logger® – ±10 VDC Voltage Data Logger

The AEMC SL12 Simple Logger® is a compact, single-channel DC voltage data logger designed for straightforward monitoring of low-voltage signals up to ±10 VDC. Ideal for applications such as circuit design troubleshooting, sensor monitoring, and power supply profiling, the SL12 offers:

• One-button operation for immediate recording.

• Quick two-wire input via screw terminals.

• User-configurable settings for scaling, units, and recording duration.

• Large memory capacity, storing up to 4 million measurements.

• Included data analysis software for real-time graphing, data download, and report generation.

With its compact design and robust features, the SL12 is an essential tool for professionals requiring reliable and accurate data logging.

Key Features

• Voltage Range: ±10 VDC

• Resolution: 10 mV

• Accuracy: ±(0.5% of reading + 50 mV)

• Maximum Input Voltage: 60 VDC

• Input Impedance: 800 kΩ

• Sample Rate: 16 samples/second

• Storage Rate: 1 second (average of all samples)

• Memory Capacity: 4 million measurements (8 MB non-volatile memory)

• Recording Duration: ≥43 days with new batteries

• Power Supply: Two 1.5 V AA alkaline batteries or USB 5 VDC

• Battery Life: Approximately 43 days when recording

• Communication Interface: USB 2.0 (Micro-B)

• Operating Temperature: -10°C to 50°C (14°F to 122°F)

• Storage Temperature: -20°C to 60°C (-4°F to 140°F)

• Dimensions: 91.44 x 36.58 x 34.8 mm (3.6 x 1.44 x 1.32 in)

• Weight: 99 g (3.5 oz) with batteries

• Ingress Protection: IP40

• Compliance: EMC EN 61326-1, Safety IEC 61010-1

Applications

• Circuit Design Troubleshooting: Identify and resolve issues in electronic circuits.

• Sensor Monitoring: Track sensor outputs over time.

• Power Supply Profiling: Analyze voltage stability and performance.

• Energy Usage Tracking: Monitor voltage levels to assess energy consumption.

• Event Sequencing: Determine the order and timing of voltage events.

What's Included

• AEMC SL12 Simple Logger® Data Logger

• Micro-B USB Cable

• Data Analysis Software (available for download)

• User Manual
