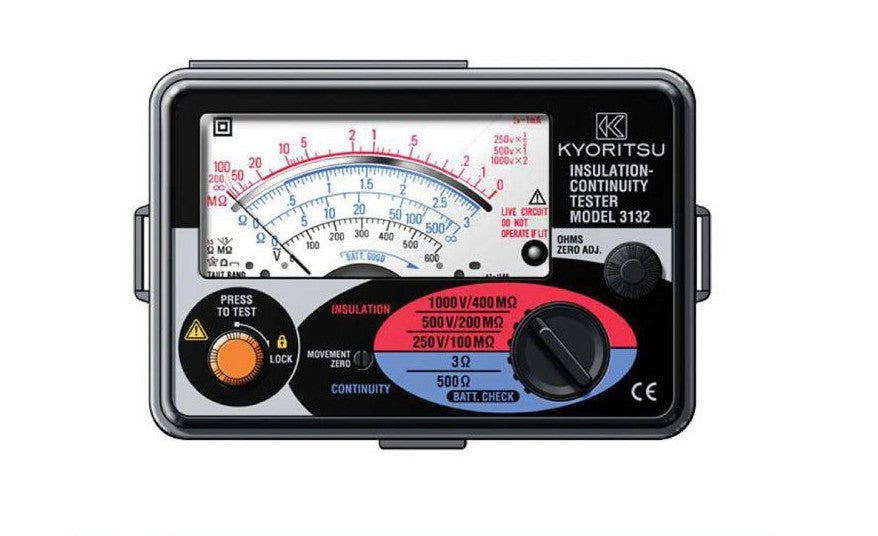

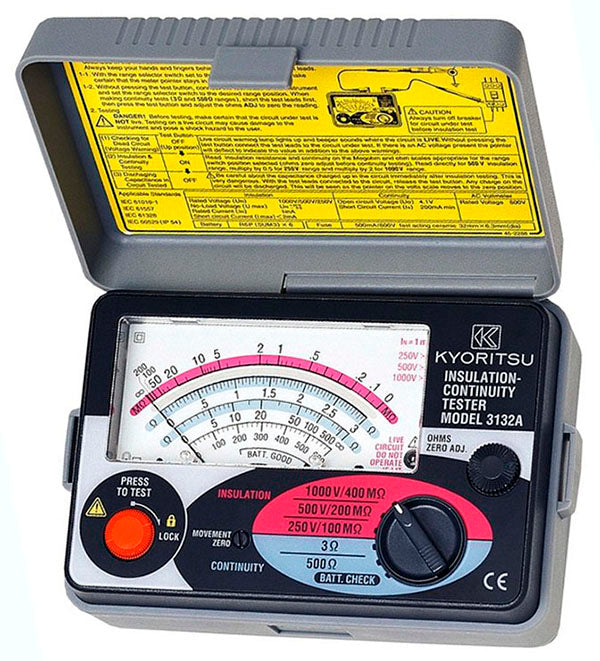

KYORITSU 3132A 1000V Analogue Insulation Tester

KYORITSU 3132A 1000V Analogue Insulation Tester

$ 541.61 CAD
$ 565.00 CAD $ 541.61 CAD
Sale Sold out

Test insulation up to 100MΩ at 250V, 200MΩ at 500V, 400MΩ at 1000V and continuity up to 500Ω. Easy-to-read, illuminated analogue scale.

  • Dust and drip proof construction. (designed to IEC 60529 IP54)
  • Designed to meet IEC 61010-1 and IEC 61557 safety standard.
  • 1mA rated test current at the minimum resistance.
  • 200mA measuring current on continuity testing.
  • Automatic discharge of circuit capacitance. (Any charge stored in the circuit under test will be automatically discharged after testing.)
  • Live circuit warning buzzer and neon lamp.
  • Small and lightweight. Shock resistant new case material.
  • AC voltmeter with linear, easy-to-read scale.
  • Operates on AA, R6 × 6 dry batteries.
  • 1 year warranty. Serviced in Toronto

Specifications:

Insulation Resistance

Test Voltage

250V/500V/1000V

Measuring Ranges
(Mid-scale Value)

100MΩ/200MΩ/400MΩ
(1MΩ) (2MΩ) (4MΩ)

Output Voltage
on open circuit

Rated test voltage+20%, -0%

Nominal Current

1mA DC min.

Output Short
Circuit Current

1~2mA DC

Accuracy

0.1~10MΩ/0.2~20MΩ/0.4~40MΩ
(Accuracy Guaranteed Ranges) ±5% of indicated value

Continuity

Measuring Ranges
(Mid-scale Value)

3Ω/500Ω
(1.5Ω) / (20Ω)

Output Voltage
on open circuit

4.1V DC approx.

Measuring Current

210mA DC min.

Accuracy

|±1.5% of scale length

AC Voltage

AC Voltage

0~600V AC

Accuracy

|±5% of scale length

General

Safety Standard

IEC 61010-1 CAT.III 600V Pollution Degree 2
IEC 61010-2-031
IEC 61557-1/2/4

IP Rating

IEC 60529-IP54

EMC Standard

IEC 61326-1

Withstand Voltage

3700V AC for 1 minute

Power Source

R6P (AA) (1.5V) × 6

Dimensions

106(L) × 160(W) × 72(D)mm

Weight

560g approx.

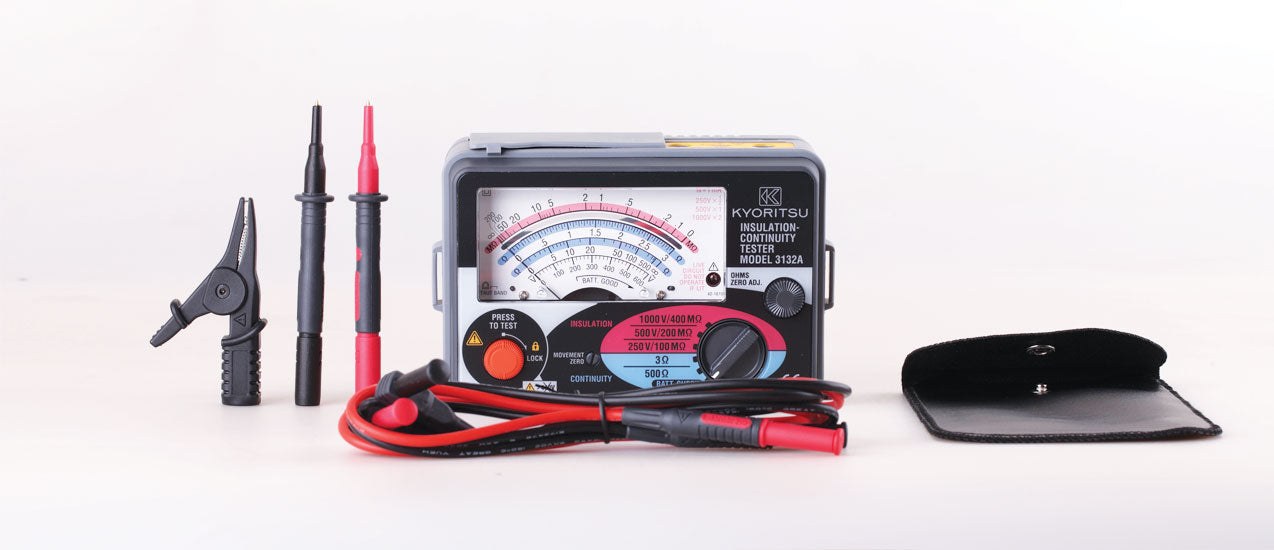

Accessories

(Test leads) Pouch for test leads
8923 (F500mA/600V fuse) × 2
R6P (AA) × 6
Shoulder Strap
Instruction Manual
