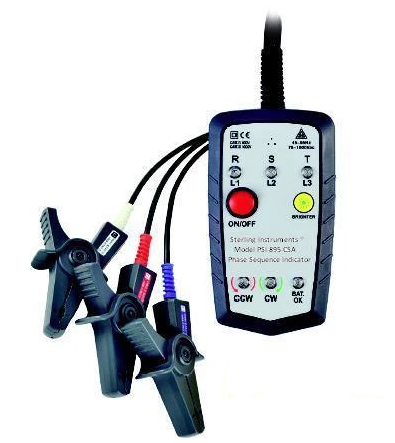

Sterling PSI-895 Non-Contact Safety Phase Indicator

Sterling PSI-895 Non-Contact Safety Phase Indicator

Regular price $ 269.00 CAD $ 199.00 CAD Sale

  • Non-contact detector clips. No metal contact points to advocate greater safety.
  • Two functions in one unit : open phase and phas sequence detection.
  • Designed for checking a wider range of 3-phase power sources.
  • LED display lights with buzzer indicator.
  • Brightness button feature for better visibility in dimly lit areas or sunlight.
  • Magnetic mounting feature.

Specification

 Measurement principle Static induction
 Input voltage 75~1000Vac
 Frequency range 45-65Hz
Auto-off 5 min. after power on
  without detection
Low battery warning Power LED flashes at
  7V ± 0.2 or less
  Operating temperature
  & humidity
0°C ~ 40°C Max. 80% R.H.
 Storage temperature
  & humidity
 -10°C ~ 50°C Max. 80% R.H.
Cable length Approx. 800mm
  Power source 9V (6LF22) × 1
Applicable standards EN 61010-1 CAT III 1000V / CAT IV  600V
  EN 61326-1  EN 61557-1
  EN 61557-7
Included Accessories Carrying case, Battery, Instruction manual
