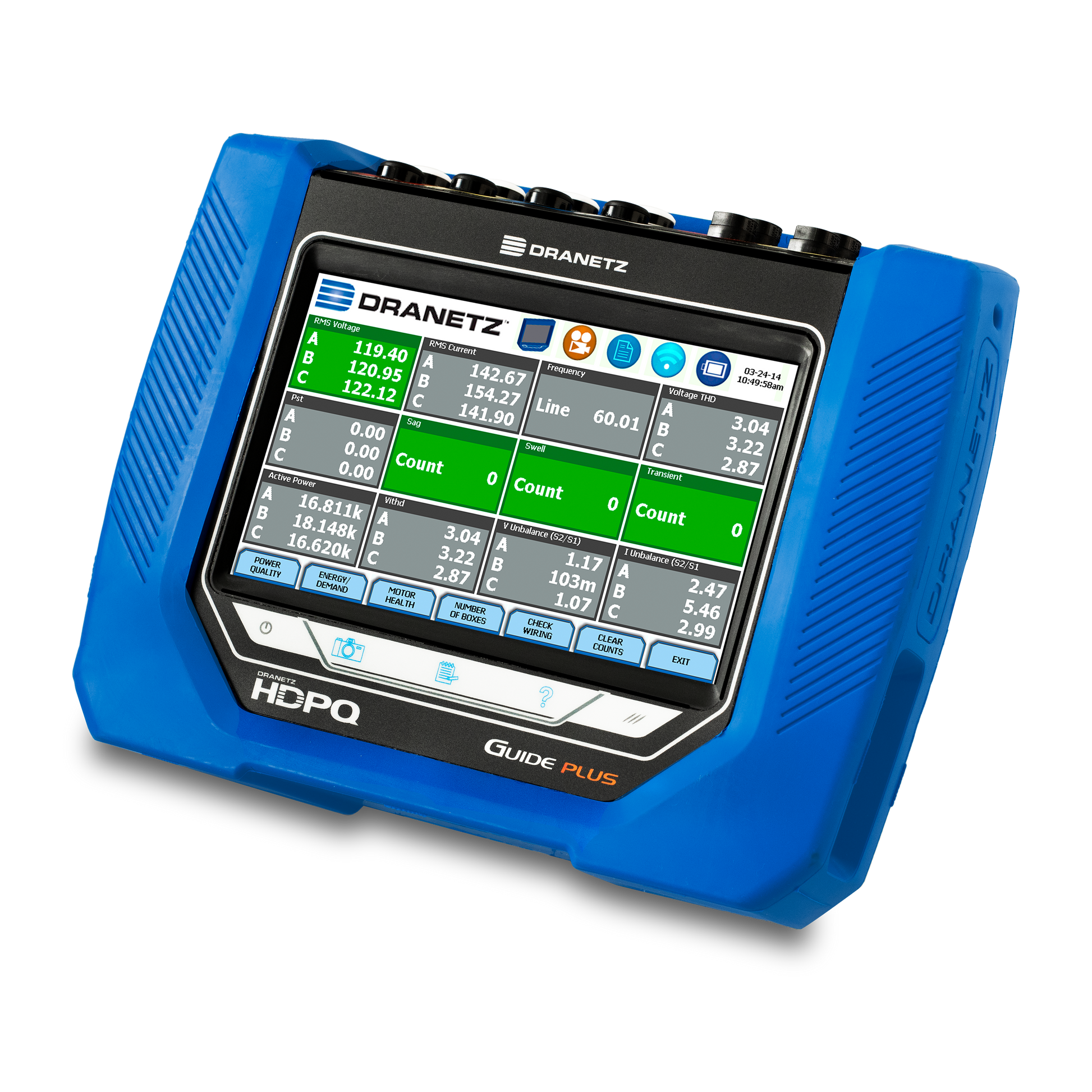

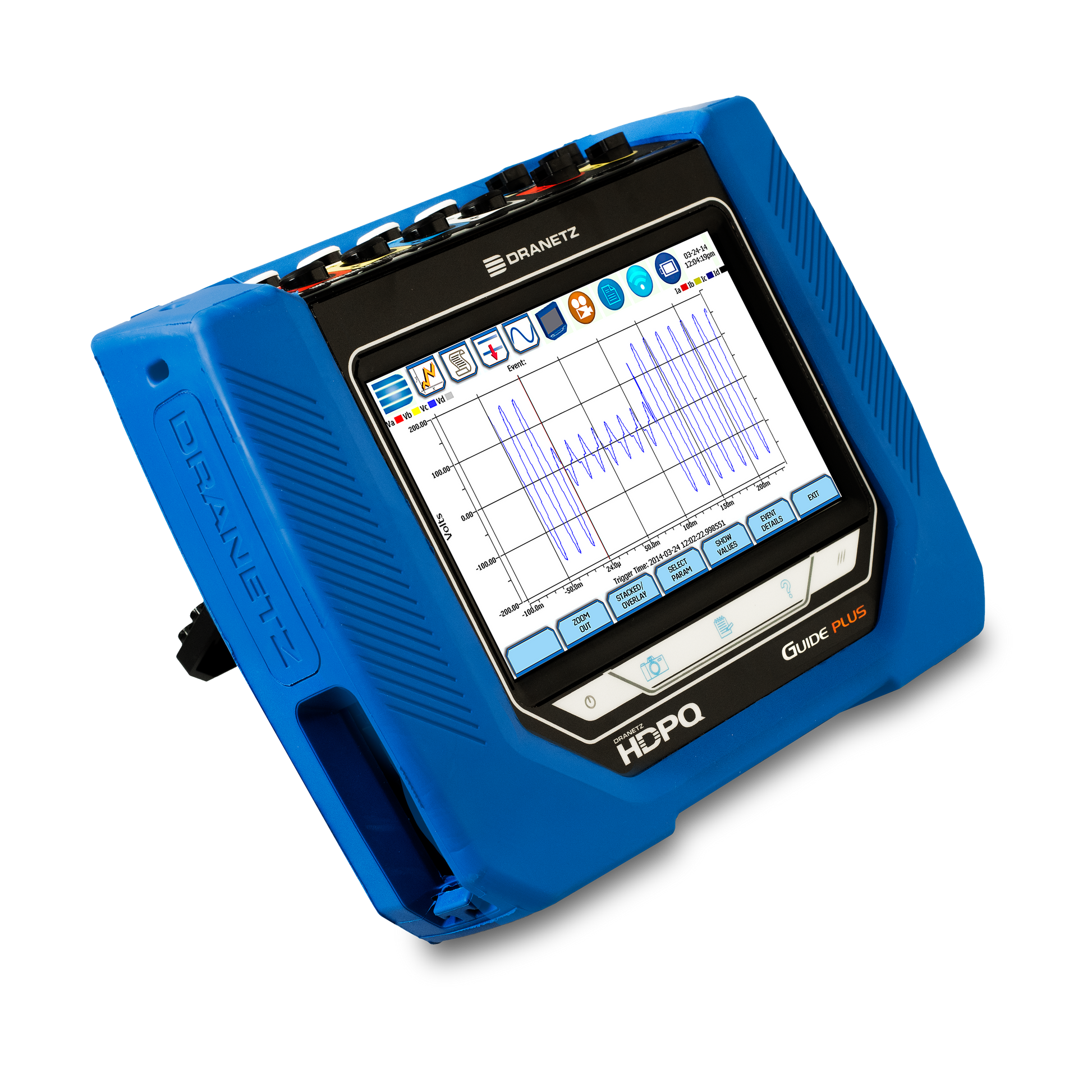

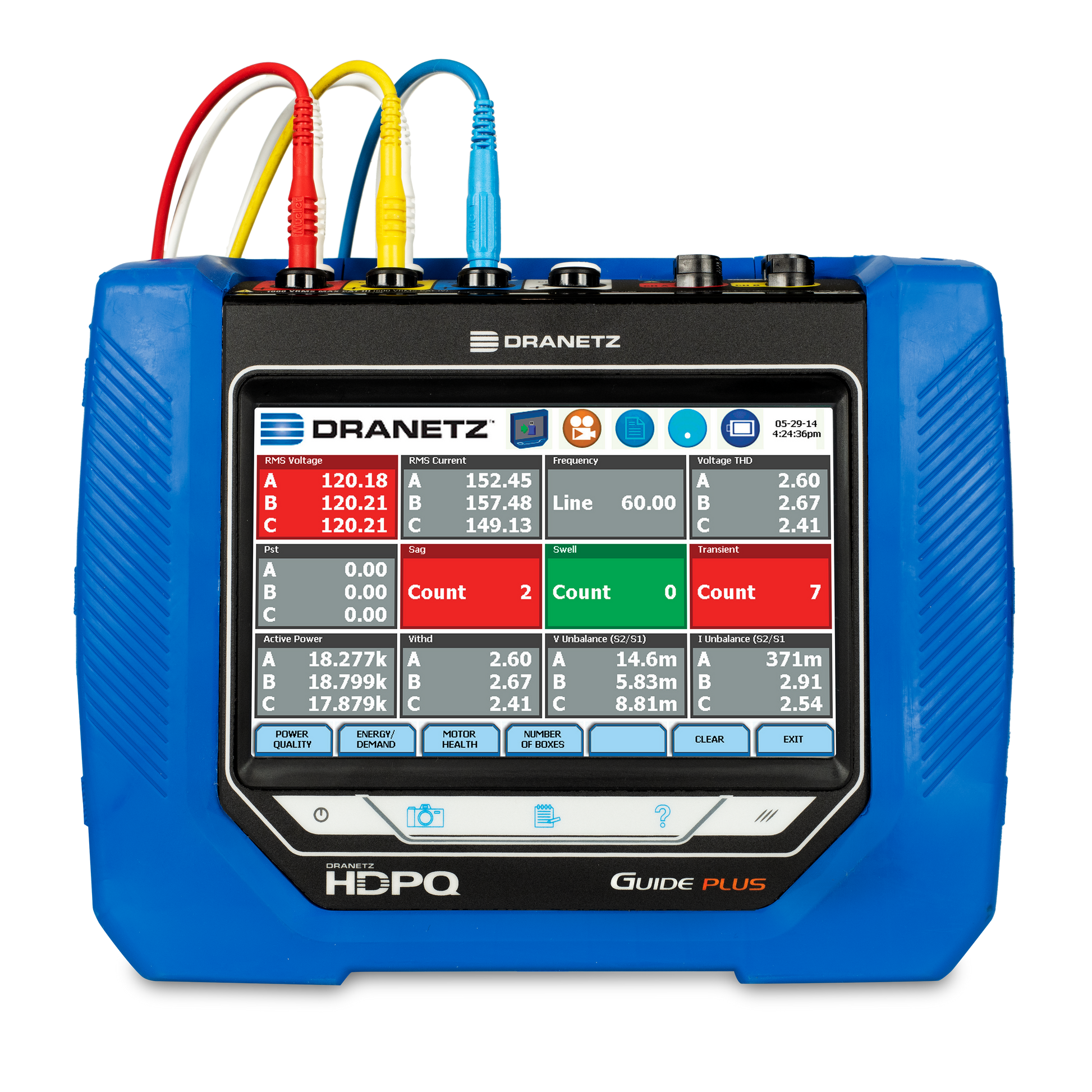

Dranetz HDPQ Guide
Portable Power Quality Analyzer

Not every job calls for high-frequency or advanced transient capture. For everyday power quality surveys and compliance testing, the Dranetz HDPQ Guide gives you the trusted accuracy of Dranetz in a streamlined, cost-effective package. It’s the ideal solution when you need a rugged, portable PQ analyzer that still delivers IEC Class A performance.

• What does it do?
  The HDPQ Guide monitors, records, and analyzes all key power quality parameters including voltage, current, harmonics, flicker, sags, swells, and interruptions.

• Who is it for?
  Utilities, contractors, and facility managers who need affordable Class A power quality analysis for routine surveys, troubleshooting, and compliance checks.

• Why is it better?
  It shares the same 7” touchscreen platform as the Xplorer series, offers Wi-Fi/Ethernet/USB connectivity, and runs Dran-View 7 software — but at a lower cost by simplifying advanced transient functions.

Technical Detail (key specifications)

• Compliance: IEC 61000-4-30 Class A, IEC 61000-4-7, IEC 61000-4-15

• Transient Capture: Limited compared to Xplorer (suitable for most PQ events, but not full 8kV capture)

• Measurements: Voltage, current, power, harmonics, flicker, unbalance, power factor

• Recording: Continuous trending, waveform capture, event logging

• Display: 7” color touchscreen

• Communication: Wi-Fi, Ethernet, USB, optional cellular modem

• Software: Dran-View 7 for detailed analysis and reporting

• Power Supply: 100-240V AC or battery operation
