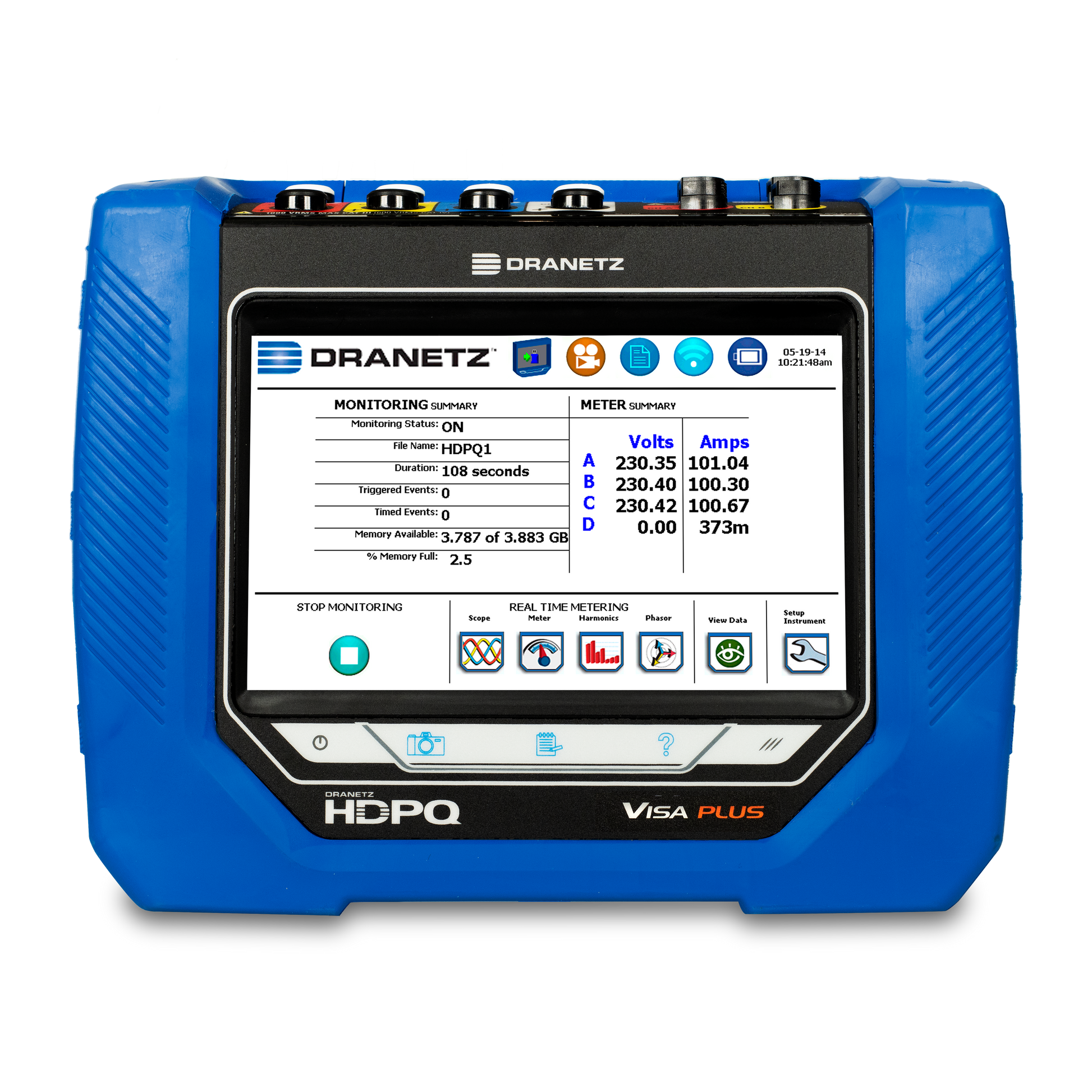

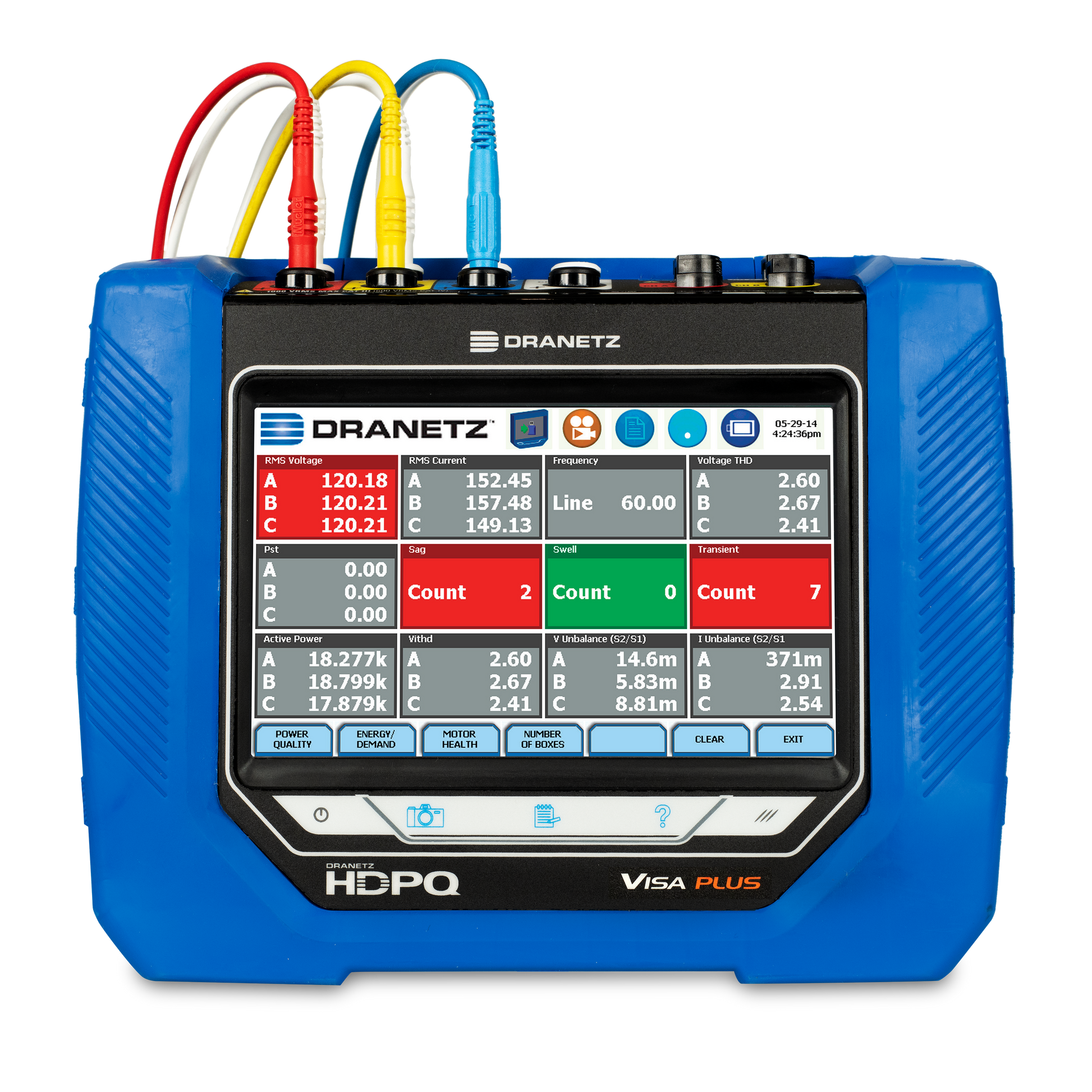

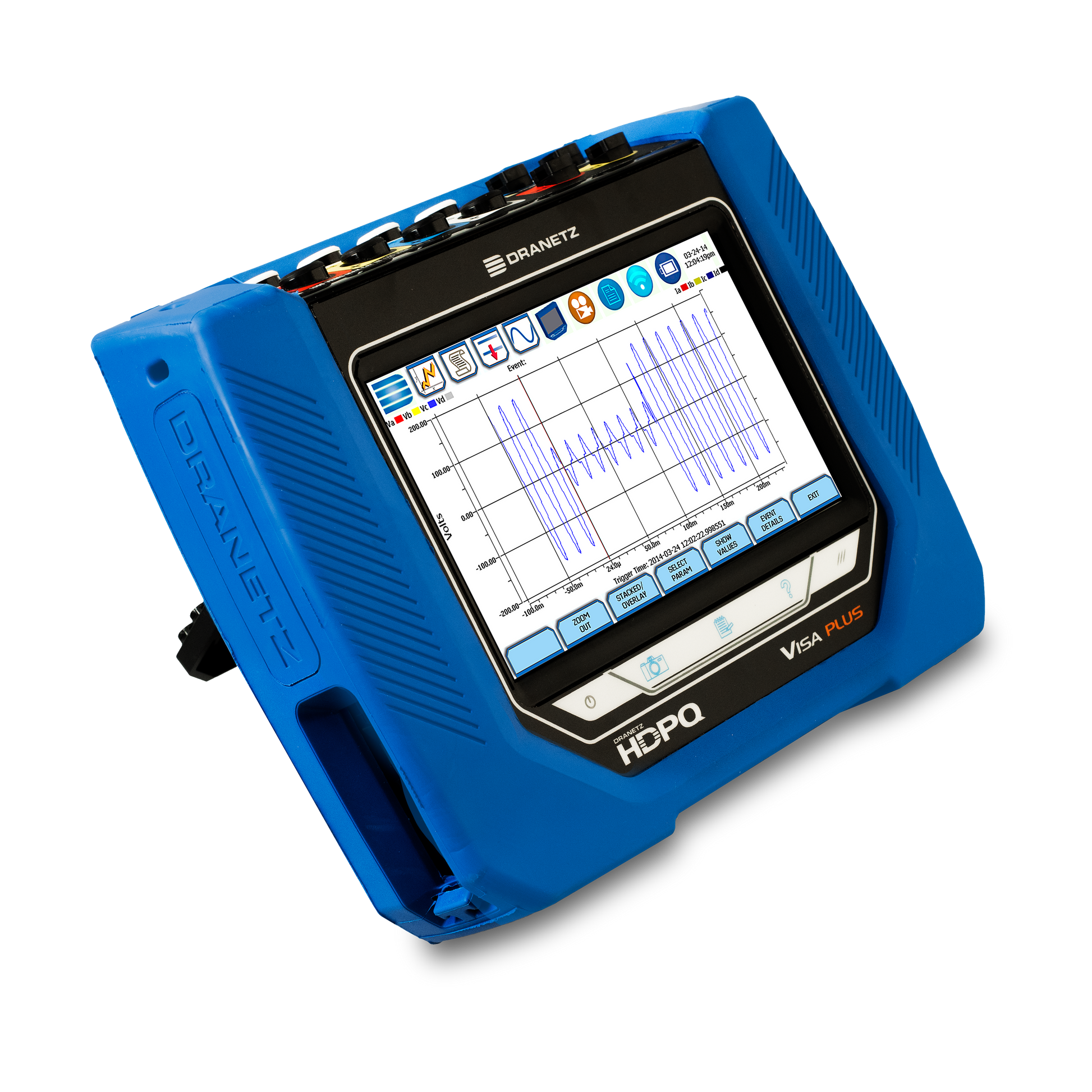

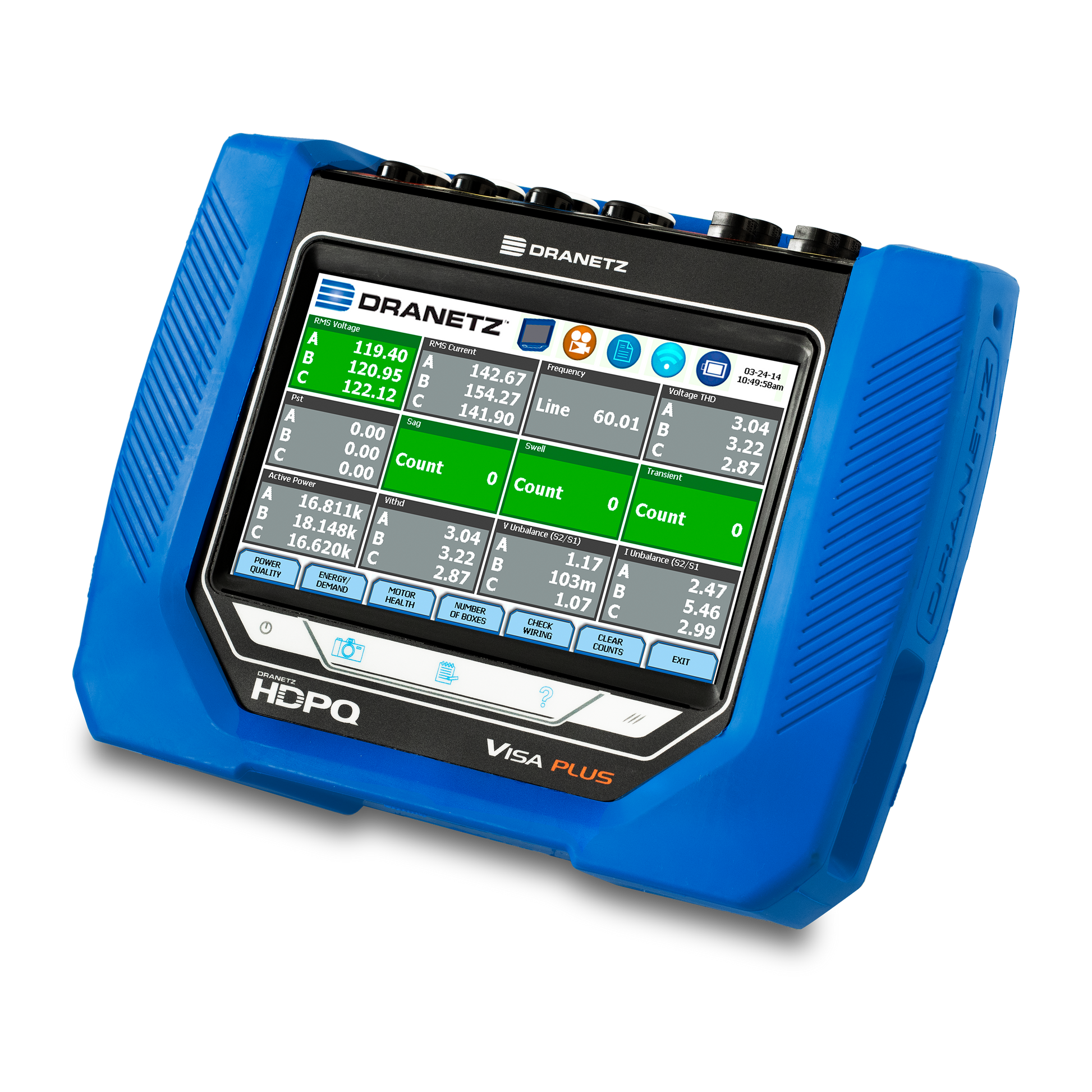

Dranetz HDPQ Visa – Portable Power Quality Analyzer

For everyday power quality monitoring at the best possible value, the Dranetz HDPQ Visa delivers. It’s the most affordable member of the HDPQ family, giving you the trusted accuracy of Dranetz, a rugged touchscreen platform, and full IEC Class A compliance — without paying for advanced features you don’t need.

• What does it do?
  The HDPQ Visa monitors, records, and analyzes key power quality parameters like voltage, current, harmonics, flicker, sags, and swells.

• Who is it for?
  Electrical contractors, utilities, and facility managers who need a reliable Class A PQ analyzer for routine troubleshooting and compliance verification.

• Why is it better?
  It combines Dranetz’s Class A accuracy and rugged design with Wi-Fi/Ethernet/USB connectivity, at a lower cost than the Guide and Xplorer models.

Technical Detail (key specifications)

• Compliance: IEC 61000-4-30 Class A, IEC 61000-4-7, IEC 61000-4-15

• Transient Capture: Basic capture (not full 8 kV)

• Measurements: Voltage, current, power, harmonics, flicker, unbalance, power factor

• Recording: Continuous trending, waveform capture, event logging

• Display: 7” color touchscreen

• Communication: Wi-Fi, Ethernet, USB, optional cellular modem

• Software: Compatible with Dran-View 7 analysis & reporting

• Power Supply: 100-240V AC or battery operation
