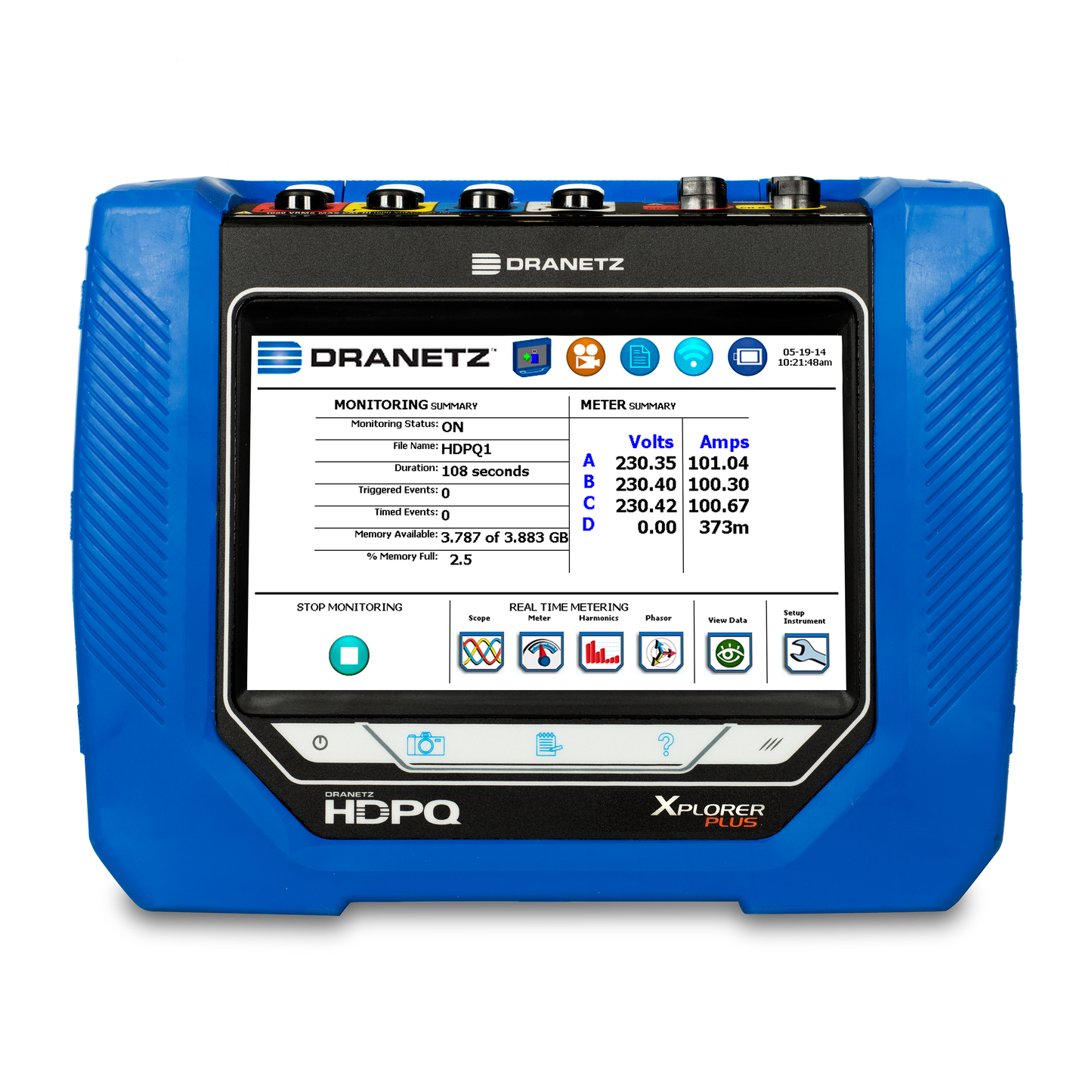

Dranetz HDPQ Xplorer – Portable Power Quality Analyzer

When you’re troubleshooting complex electrical issues, you need more than just data — you need insight. The Dranetz HDPQ Xplorer is the go-to power quality analyzer for engineers and contractors who demand accuracy, portability, and confidence in every reading. Whether you’re diagnosing elusive disturbances or verifying compliance, the HDPQ Xplorer gives you unmatched visibility into your electrical systems.

• What does it do?
  The HDPQ Xplorer captures and analyzes every detail of electrical power quality, from sags, swells, harmonics, and flicker to transient events up to 8kV.

• Who is it for?
  Designed for electrical contractors, utilities, facility managers, and engineers responsible for diagnosing, documenting, and preventing costly power problems.

• Why is it better?
  With its full compliance to IEC 61000-4-30 Class A, color touchscreen interface, Wi-Fi/Ethernet/USB connectivity, and high-resolution transient capture, the HDPQ Xplorer sets the standard for portable PQ analyzers.

Technical Detail (key specifications)

• Compliance: IEC 61000-4-30 Class A, IEC 61000-4-7, IEC 61000-4-15

• Transient Capture: Up to 8 kV at 1 µs resolution

• Measurements: Voltage, current, power, harmonics, flicker, unbalance, power factor

• Recording: Gated waveform capture, continuous trending, event logging

• Display: 7” color touchscreen

• Communication: Wi-Fi, Ethernet, USB, optional cellular modem

• Power Supply: 100-240V AC or battery operation

• Software: Dran-View 7 for in-depth reporting and analysis
