Dranetz HDPQ-Xplorer-400 Plus

$ 26,887.00 CAD

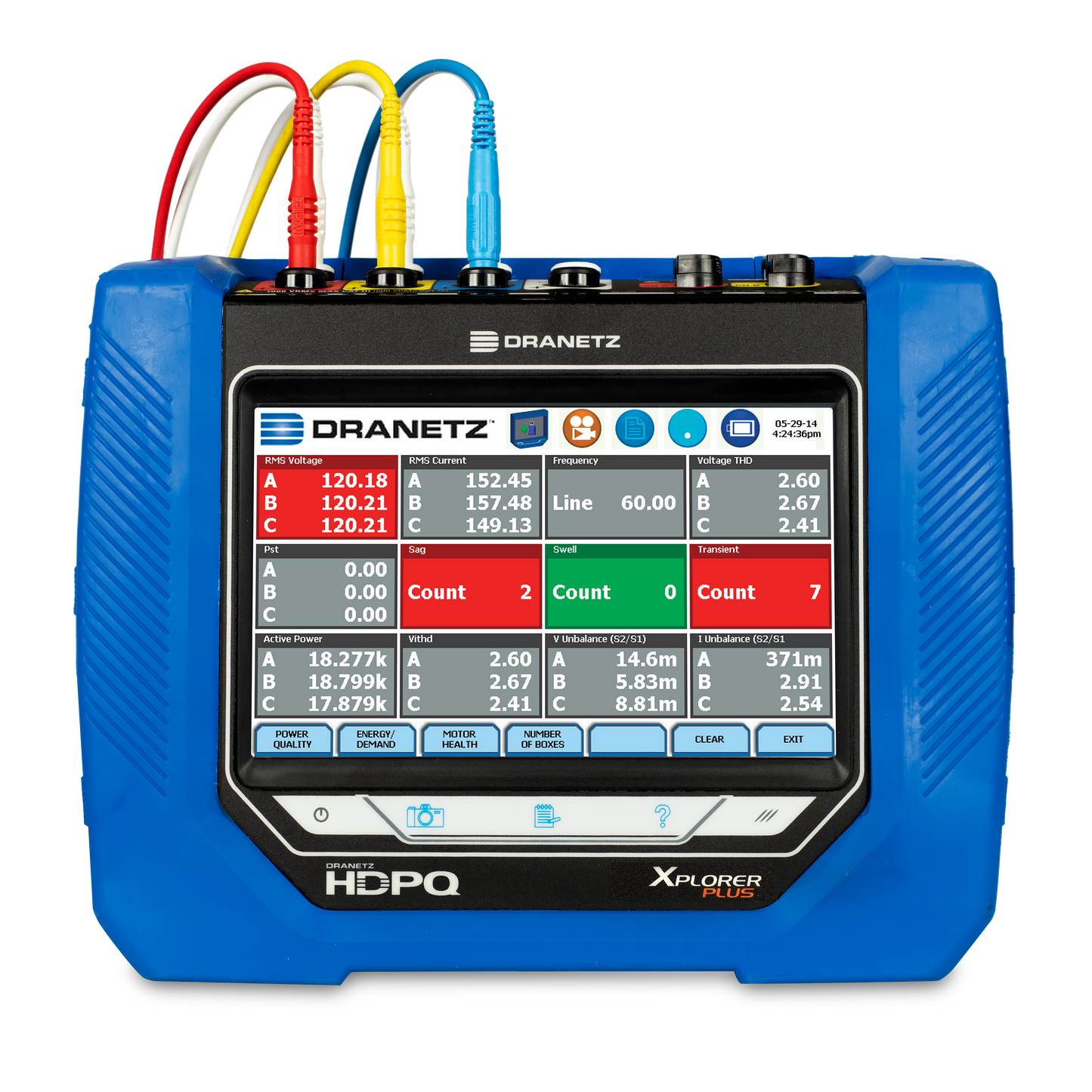

Dranetz HDPQ Xplorer 400 – Portable Power Quality Analyzer (400 Hz)

Power problems don’t just happen at 50/60 Hz. The Dranetz HDPQ Xplorer 400 expands your measurement capability into 400 Hz systems, making it the analyzer of choice for aerospace, defense, and industries where high-frequency power is critical. With the same trusted performance of the Xplorer, you can now diagnose and document PQ issues in environments where standard analyzers fall short.

  • What does it do?
    The HDPQ Xplorer 400 measures, records, and analyzes power quality and energy parameters up to 400 Hz, including transients, harmonics, flicker, unbalance, and more.

  • Who is it for?
    Designed for aerospace, military, shipboard, and specialized industrial applications where 400 Hz systems are common.

  • Why is it better?
    It combines the robust Class A compliance of the Xplorer with expanded frequency capability, portable design, and advanced communications, giving you unmatched confidence in demanding environments.

Technical Detail (key specifications)

  • Frequency Range: Supports 50, 60, and 400 Hz applications

  • Compliance: IEC 61000-4-30 Class A, IEC 61000-4-7, IEC 61000-4-15

  • Transient Capture: Up to 8 kV at 1 µs resolution

  • Measurements: Voltage, current, power, harmonics, flicker, unbalance, power factor

  • Recording: Continuous trending, waveform capture, event logs

  • Display: 7” color touchscreen

  • Communication: Wi-Fi, Ethernet, USB, optional cellular modem

  • Software: Dran-View 7 analysis & reporting

  • Power Supply: 100-240V AC or battery operation
