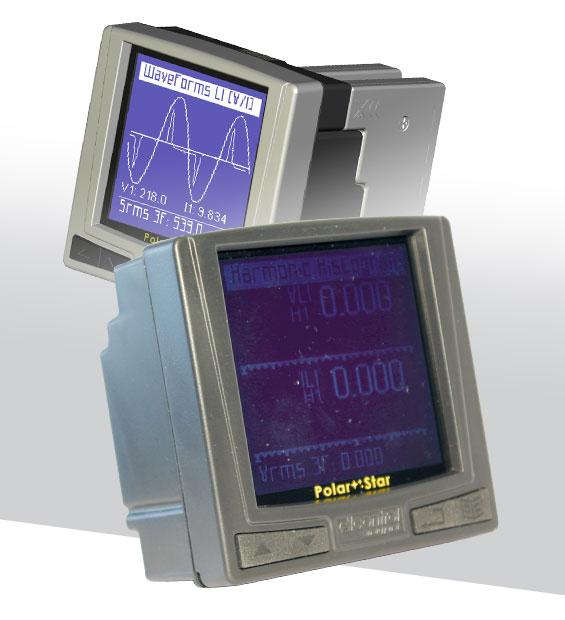

ELCONTROL POLAR STAR Power Quality Analyzer (Panel)-TOP model
ELCONTROL POLAR STAR Power Quality Analyzer (Panel)-TOP model
Regular price
$ 659.00 CAD
Regular price
Sale price
$ 659.00 CAD
Quantity
Couldn't load pickup availability
Polar Star is a multi-functional panel mounted power Quality Analyzer (96x96mm), ideal for measurement, display and remote monitoring of electrical parameters.
It can be used on single-phase, two-phase, three-phase low and medium voltage networks. Its advanced features make it a tool suitable for the most demanding needs.
It can be used on single-phase, two-phase, three-phase low and medium voltage networks. Its advanced features make it a tool suitable for the most demanding needs.
Features:
- Reduced dimensions in depth in the panel
- IP65 front panel
- Switching power supply 90/230 and 90/300 Vac Vdc (+ 24-48 Vdc option)
- Analysis of power quality parameters 3 measuring channels of voltage up to 600V CAT III with the precision of 0.25%
- 4 distinct current inputs (3 + 1 for the neutral current !!!), with 0.25% accuracy, with 4 internal CTs for a better electrical insulation
- 6 different electrical systems analyzed (single-phase, two-phase, three-phase 3-wire unbalanced, three-phase 4-wire unbalanced, balanced three-phase 3-wire, three-phase 4-wire balanced)
- Multilingual
- Customizable display, choosing which values display in rotation in the lower part and rotating it 90 ° in relation to the comfort of reading
Order Information
4ABAB - Polar Star TOP Model (accept up to two modules)
Available Accessories
| 4A485 | OPTION RS485 |
| 4AALM | OPTION 2 ALARMS |
| 4ADIN | OPTION 2 DIGIT |
| 4AVDC | OPTION 12-24 |
| 41VDC | OPTION 48-60 VDC |
