Fluke 1550C/KIT Insulation Resistance Tester Kit, 5 kV
Fluke 1550C/KIT Insulation Resistance Tester Kit, 5 kV

Fluke 1550C/KIT Insulation Resistance Tester Kit, 5 kV

Regular price $ 5,400.00 CAD $ 8,859.00 CAD Sale

Compare At

fluke-direct.ca $9,815.39
itm.com $9,815.39
myflukestore.ca $9,040.62

Ideal for preventive or predictive maintenance programs, this insulation resistance tester identifies potential equipment failures before they occur. This tool is Fluke Connect compatible tests digital insulation up to 5 kV. Additionally, it comes equipped with a certificate of calibration.

Evaluate the trends, eliminate the doubt

Test up to 5 kV and makes data collection easy due to its compatibility with the Fluke Connect™ wireless application. This insulation meter is ideal for testing a wide range of high voltage equipment including switchgear, motors, generators, and cables.

Conduct the entire range of test voltages specified in IEEE 43-2000 with a best in class and CAT IV 600 V safety rating. With measurement storage and PC interface, it is ideal for preventative or predictive maintenance programs designed to identify potential equipment failures before they occur.

Features

  • Quickly configure, start, and stop tests remotely, a safe distance away from any operating, energized equipment, using Fluke Connect® and a smartphone
  • Real time trending gives you easy-to-see visual cues, rather than hard to read, rapidly changing values
  • Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup
  • Guard system eliminates the effect of surface leakage current on high-resistance measurements
  • Selectable test voltages in 50 V steps from 250 to 1000 V, and 100 V steps above 1000 V
  • CAT III 1000 V, CAT IV 600 V safety rating
  • Warning function alerts the user that line voltage is present and gives the voltage reading up to 600 V AC or DC for increased user safety
  • Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall
  • Long battery life gives the user over 750 tests between charges
  • Large digital/analog LCD for easy viewing
  • Capacitance and leakage current measurement
  • Ramp function for breakdown testing
  • Resistance measurements up to 2 TΩ
  • Timer settings up to 99 minutes for timed tests

Applications

  • High voltage
  • Preventive maintenance programs
  • Predictive maintenance programs

Fluke 1550C/KIT Specifications

Test Voltage (DC) 250 V
Range <250 kΩ
250 kΩ to 5 GΩ
5 to 50 GΩ
>50 GΩ
Accuracy (± Reading) Unspecified
5%
20%
Unspecified
Test Voltage (DC) 500 V
Range <500 kΩ
500 kΩ to 10 GΩ
10 to 100 GΩ
>100 GΩ
Accuracy (± Reading) Unspecified
5%
20%
Unspecified
Test Voltage (DC) 1000 V
Range <1 MΩ
1 MΩ to 20 GΩ
20 to 200 GΩ
>200 GΩ
Accuracy (± Reading) Unspecified
5%
20%
Unspecified
Test Voltage (DC) 2500 V
Range <2.5 MΩ
2.5 MΩ to 50 GΩ
50 to 500 GΩ
>500 GΩ
Accuracy (± Reading) Unspecified
5%
20%
Unspecified
Test Voltage (DC) 5000 V
Range <5 MΩ
5 MΩ to 100 GΩ
100GΩ to 1 TΩ
>1 TΩ
Accuracy (± Reading) Unspecified
5%
20%
Unspecified
Insulation Resistance Measurement
Bar Graph Range 0 to 1 TΩ
Insulation Test Voltage Accuracy -0%, +10% at 1 mA load current
Induced AC Mains Current Rejection 2 mA maximum
Charging Rate for Capacitive Load 5 seconds per µF
Discharge Rate for Capacitive Load 1.5 s/µF
Leakage Current Measurement Range: 1 nA to 2 mA
Accuracy: ±(5% + 2 nA)
Capacitance Measurement Range: 0.01 to 15.00 µF
Accuracy: ±(15% rdg + 0.03 µF)
Timer Range: 0 to 99 minutes
Resolution setting: 1 minute
Resolution Indication: 1 second
Live Circuit Warning Warning range: 30 to 660 V AC/DC, 50/60 Hz
Voltage accuracy: ±(15% + 2 V)
Software Specifications FlukeView Forms™ basic software requires a PC running Windows XP, Windows Vista , Windows 7 or Windows 8.
General Specifications
Display 2.95 x 4.13" (75 x 105 mm)
Power 12 V lead-acid rechargeable battery, Yuasa NP2.8-12
Charger Input (AC) 85 to 250 V AC 50/60 Hz 20 VA
Operating Temperature -4 to 122°F (-20 to 50°C)
Storage Temperature -4 to 149°F (-20 to 65°C)
Humidity 80% to 88°F (31°C) decreasing linearly to 50% at 122°F (50°C)
Altitude 6561.7' (2000 m)
Enclosure Sealing IP40
Input Overload Protection 1000 V AC
Electromagnetic Compatibility EN 61326
Dimensions 10.6 x 10.9 x 6.3" (269 x 277 x 160 mm)
Weight 8.2 lbs (3.7 kg)

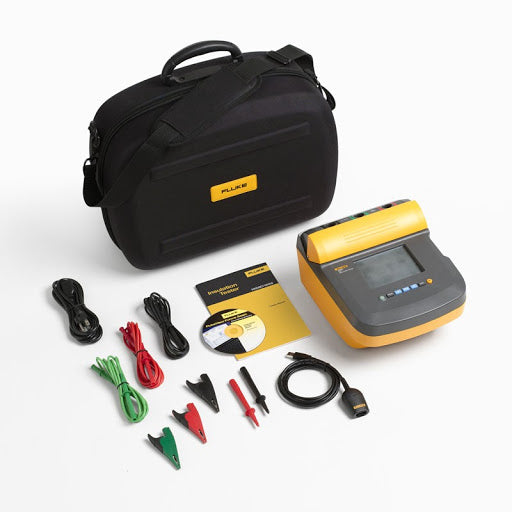

What's included with the Fluke 1550C/KIT

  • Insulation Resistance Tester
  • Certificate of Calibration
  • Test Cables with Alligator Clips
  • Infrared Adapter with Interface Cable
  • Heavy Duty Alligator Clip Leads
  • Carrying Case
  • AC Power Cord
  • English Manual
  • Users Manual on CD-ROM
  • Quick Reference Card
  • Software License Agreement
  • Registration Card
  • FlukeView® Forms Installation Guide
  • USB-IR Cable Installation Guide
  • FlukeView® Forms Basic CD-ROM
