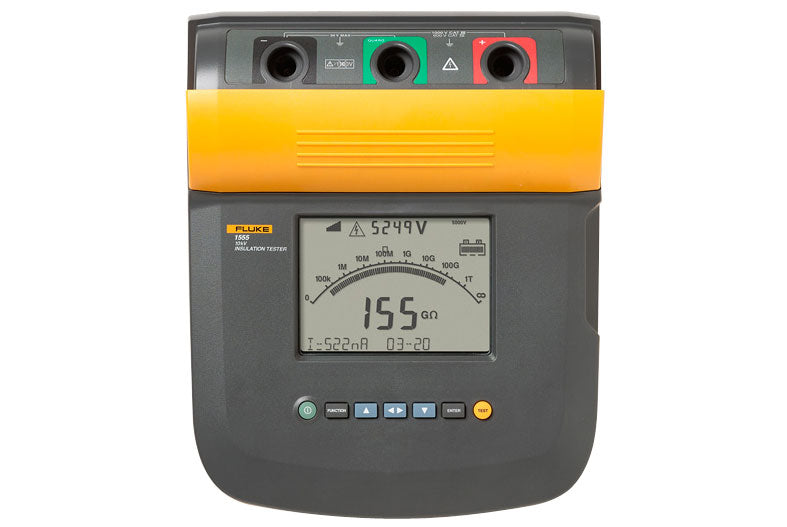

Fluke 1555 Insulation Resistance Tester, 10kV
Fluke 1555 Insulation Resistance Tester, 10kV
Fluke 1555 Insulation Resistance Tester, 10kV

Fluke 1555 Insulation Resistance Tester, 10kV

Regular price $ 7,056.00 CAD Sale

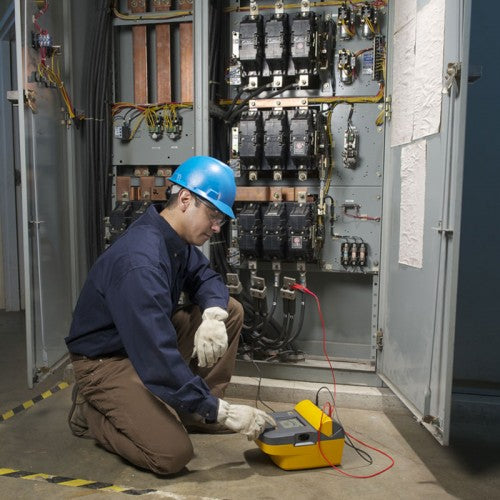

Insulation resistance tester to 10,000V or 10kV makes this megohmmeter ideal for testing a wide range of high voltage equipment including switch gear, motors, generators and cables.

Evaluate the trends and eliminate the doubt with this insulation resistance tester. Ideal for testing a wide range of high voltage equipment including switchgear, motors, generators and cables, the CAT III 1000 V/CAT IV 600 V safety-rated tester can conduct digital insulation testing up to 10 kV. By adding this to your preventive or predictive maintenance programs, it can help to identify potential equipment failures before they occur.

Features

  • Test voltages to up 10 kV and save time by trending on the spot only with Fluke Connect™
  • CAT III 1000 V, CAT IV 600 V safety rating
  • Warning function alerts the user that line voltage is present and gives the voltage reading up to 600 V AC or DC for increased user safety
  • Selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V
  • Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall
  • Long battery life gives the user over 750 tests between charges
  • Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup
  • Guard system eliminates the effect of surface leakage current on high-resistance measurements
  • Large digital/analog LCD for easy viewing
  • Capacitance and leakage current measurement
  • Ramp function for breakdown testing
  • Resistance measurements up to 2 TΩ
  • Timer settings up to 99 minutes for timed tests
  • 3-year warranty

Applications

  • Building Automation
  • Commercial
  • Defense
  • Military and Aerospace
  • HVAC/R
  • Industrial
  • Maintenance and Repair
  • Mining
  • Oil and Gas
  • Motor Drive and Control

Specifications

Insulation Resistance
Test voltage (DC) Range (DC) Accuracy (± reading)
250 V < 250 kΩ
250 kΩ to 5 GΩ
5 GΩ to 50 GΩ
> 50 GΩ
Unspecified
5%
20%
Unspecified
500 V < 500 kΩ
500 kΩ to 10 GΩ
10 GΩ to 100 GΩ
> 100 GΩ
Unspecified
5%
20%
Unspecified
1000 V < 1 MΩ
1 MΩ to 20 GΩ
20 GΩ to 200 GΩ
> 200 GΩ
Unspecified
5%
20%
Unspecified
2500 V < 2.5 MΩ
2.5 MΩ to 50 GΩ
50 GΩ to 500 GΩ
> 500 GΩ
Unspecified
5%
20%
Unspecified
5000 V < 5 MΩ
5 MΩ to 100 GΩ
100 GΩ to 1 TΩ
> 1 TΩ
Unspecified
5%
20%
Unspecified
10000 V < 10 MΩ
10 MΩ to 200 GΩ
10 GΩ to 2 TΩ
> 2 TΩ
Unspecified
5%
20%
Unspecified
Leakage Current Measurement
Range 1 nA to 2 mA
Accuracy ± (5 % + 2 nA)
Capacitance Measurement
Range 0.01 uF to 15.00°F
Accuracy ± (15 % rdg + 0.03°F)
Timer
Range 0 to 99 minutes
Accuracy Resolution Setting: 1 minute Indication: 1 second
Live Circuit Warning
Range Warning Range 30 V to 660 V AC/DC, 50/60 Hz
Accuracy Voltage Accuracy ± (15 % + 2 V)
Additional
Bar Graph Range 0 to 1 TΩ
Insulation Test Voltage Accuracy -0 %, +10 % at 1 mA load current
Induced AC Mains Current Rejection 2 mA maximum
Charging Rate for Capacitive Load 5 seconds per °F
Discharge Rate for Capacitive Load 1.5 s/°F

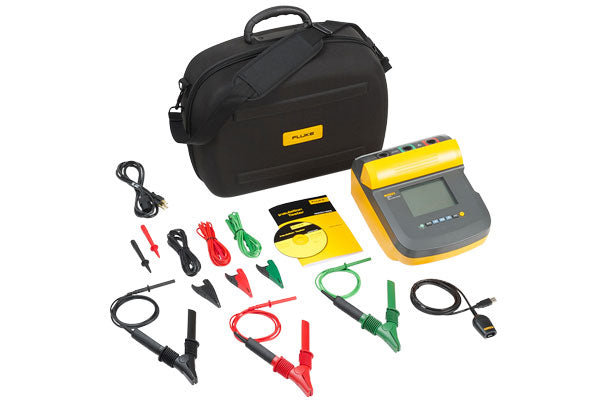

What's included with the Fluke 1555

  • Insulation Resistance Tester
  • Test Cables with Alligator Clips
  • Infrared adapter with interface cable
  • FlukeView® Forms Basic CD-ROM
  • AC Power Cord
  • English Manual
  • Users Manual on CD-ROM
  • Quick Reference Card
  • Software License Agreement
  • Registration Card
  • FlukeView® Forms Installation Guide
  • USB-IR Cable Installation Guide
  • Soft Carrying Case
