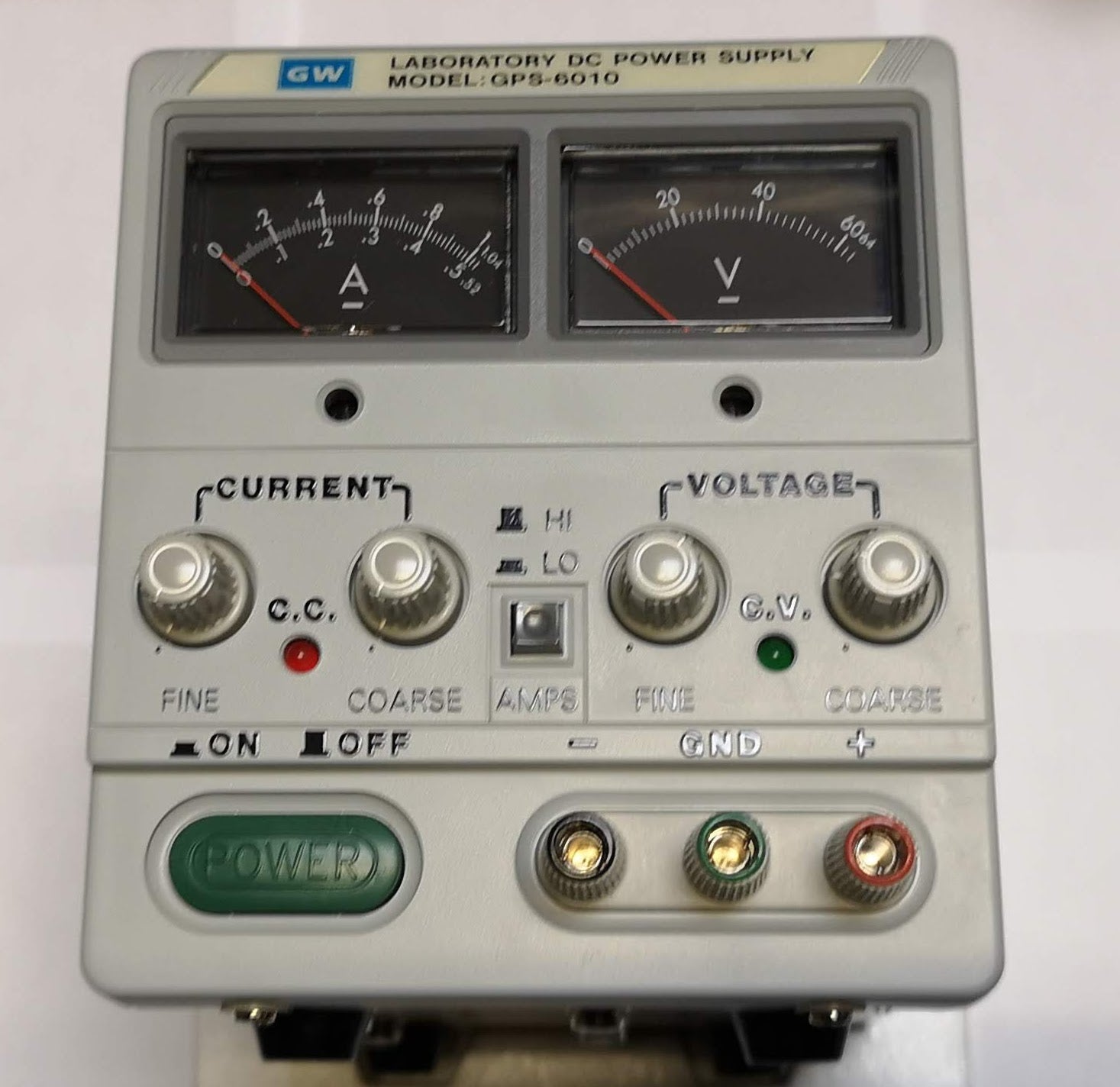

GW Instek - GPS 6010 - Power Supply

Specifications

DC Output – 0~60 V, 0~1 A

Constant Voltage Operation

Regulation – Line regulation <0.01% + 3mV, Load regulation <0.01% + 3mV (rating current < 3A), Load regulation < 0.01% + 5mV ( rating current >3A)

Ripple & Noise - ≦0.5mVrms 5Hz ~ 1MHz (rating current≦3A) , ≦1mVrms 5Hz ~ 1MHz (rating current > 3A)

Recovery Time - ≦100μS ( 50% load change, minimum load 0.5A )

Temp. Coefficient - ≦300ppm/°C

Output Range - 0 to rating voltage continuously adjustable

Constant Current Operation

Regulation - Line regulation≦0.2% + 3mA, Load regulation≦0.2% + 3mA

Ripple Current - ≦3mArms

Output Range - 0 to rating current continuously adjustable (Hi/Lo range switchable)

Meter

Analog - V-meter and I-meter, 2.5 class, Dimensions 50 x 50 m

Insulation

Chassis and Terminal - 20MΩ or above (DC 500V)

Chassis and AC Cord - 30MΩ or above (DC 500V)

Power Source - AC 100V/120V/220V/240V±10%, 50/60Hz

Accessories - User manual x 1, Power cord x 1, Test lead GTL-105 x 1, European test lead GTL-201A (optional)

Dimensions - 128(W) x 145(H) x 285(D)mm

Weight - Approx. 5kg
