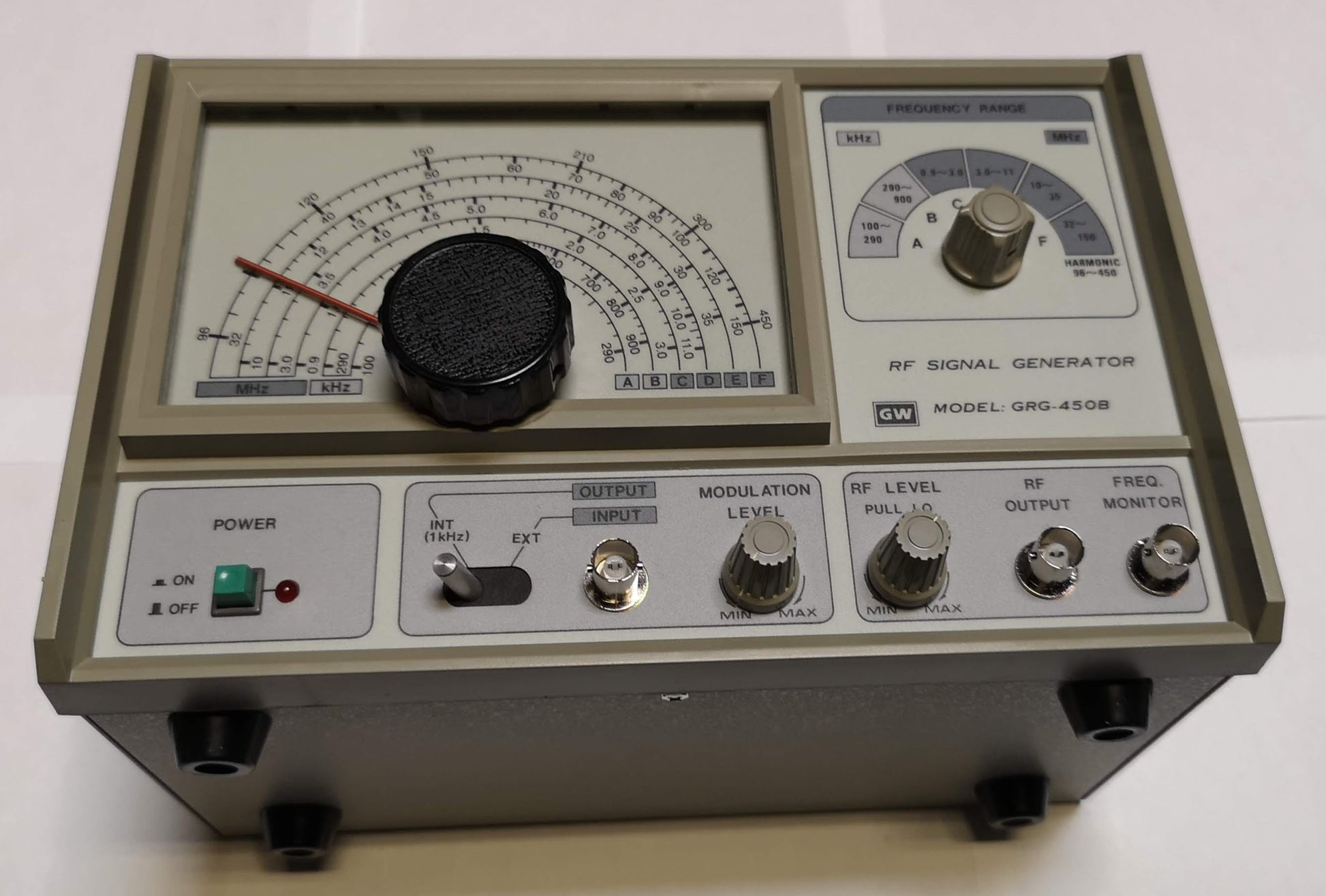

GW Instek - GRG 450B - RF Generator
GW Instek - GRG 450B - RF Generator
Couldn't load pickup availability
Instek 150MHz RF Generator
Features:
Frequency Range from 100kHz ~ 150MHz (up ~ 450MHz on Harmonics)
Int./Ext. AM Modulation, 0 ~ 100%
Frequency Monitor Output for EXT Frequency counter
Specifications:
Frequency: 100kHz ~ 150MHz (up to 450MHz on harmonics)
Range: A 100 ~ 290kHz, B 290 ~ 900kHz, C 0.9 ~ 3.0MHz, D 3.0 ~ 11MHz, E 10 ~ 35MHz, F 32 ~ 150MHz, (96 ~ 450MHz, calibrated harmonics)
Accuracy:±5%
Level: 100mVrms approx up to 35MHz
Level control: High/Low switch able and fine control
AM Internal Frequency:1kHz
AM Internal Percentage:30% max and adjuster
AM External Frequency:50Hz to 20kHz
AM External Sensitivity: less than 1Vrms
Audio Output Frequency:1kHz
Level:1Vrms MIN, fixed
Frequency:Oscillation frequency
Level: 50mVrms MIN
Power Source: AC 100/115/230V ±10%, 50/60Hz
Dimension: 9.88 x 6.32 x 5.6"
