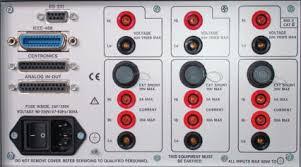

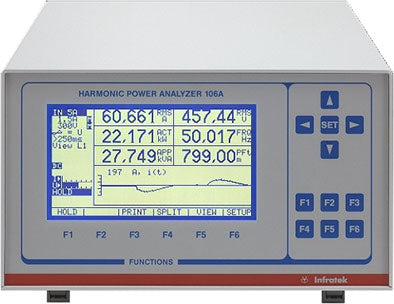

Infratek 106A-1 Single Phase Power Analyzer

Swiss Precision for DC & AC Power Measurements

The Infratek 106A-1 is a high-accuracy, single-phase power analyzer designed for demanding DC and AC measurement tasks. Built in Switzerland by a second-generation family company, this compact instrument combines exceptional precision with rugged design and personal, hands-on support.

Key Features:

• ±0.05% typical accuracy at 45–65 Hz

• Measures up to 1000 V and 40 A

• Accepts direct input or external transducer signals (±10 V / ±2.5 V)

• True RMS measurement of DC and AC voltage and current

• Harmonic analysis up to the 20th harmonic

• Interface options: RS232, USB, LAN, GPIB, or Fiber Optic

• Compact 3U rack-mountable housing (133 mm height)

Optional Configurations Available:

• Current Input: Direct (0–20 A) or via External Transducer

• Communication Interface: RS232 / USB / LAN / GPIB / Fiber Optic

• Optional Accessory Kit: Includes transducer support + cables

Ideal For:

• Power supply development

• Motor and inverter diagnostics

• R&D labs and teaching institutions

• Industrial and utility system validation
