Infratek 108A-4 High Precision Power Analyzer - Four Phase

The Infratek 108A-4 is a four-phase power analyzer for advanced AC/DC systems where three isn’t enough. Built in Switzerland with ±0.02% accuracy and a modular design, it’s ideal for transformer testing, multi-motor setups, and synchronized system validation.

Key Features:

• Accuracy options: ±0.1% Basic or ±0.02% Enhanced

• Measures 4-phase AC/DC systems up to 1000 V and 40 A

• Harmonics, power sums, motor/transformer values, and ratios

• High-resolution 18-bit data with DC to 2 MHz bandwidth

• Real-time display of over 280 parameters per phase

• Four advanced measurement modes including transient capture

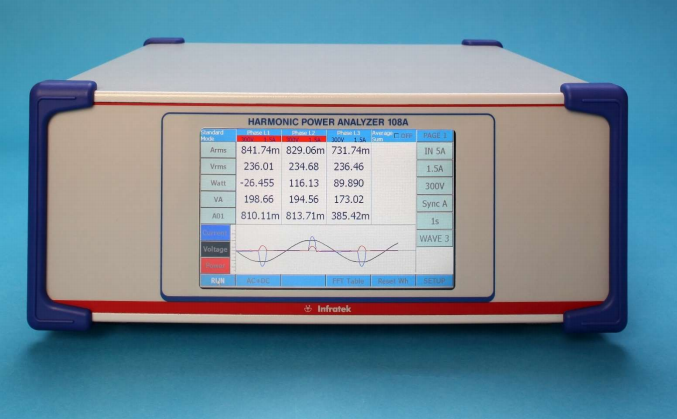

• Intuitive touchscreen interface and customizable display

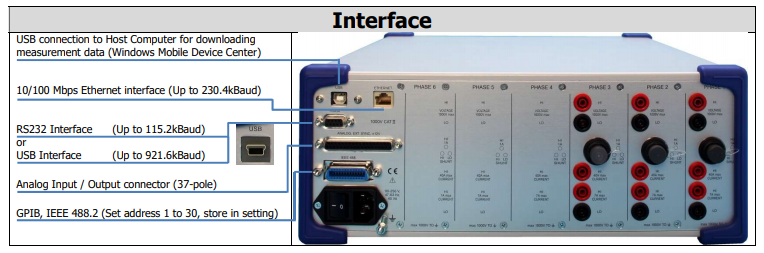

• Interfaces: USB, LAN, RS-232, GPIB

Available Configurations:

• Accuracy:
  – ±0.1% Basic
  – ±0.02% Enhanced

• Communication Interface:
  – USB
  – LAN
  – RS-232
  – GPIB

• Optional Add-ons:
  – Analog/frequency input modules
  – Ultra-precise current transducers
  – Windows software for synchronized phase data capture

Ideal Applications:

• Transformer and UPS testing

• Multi-motor drive systems

• Phase-imbalance studies

• Renewable energy systems

• High-frequency or pulsed-load measurements
