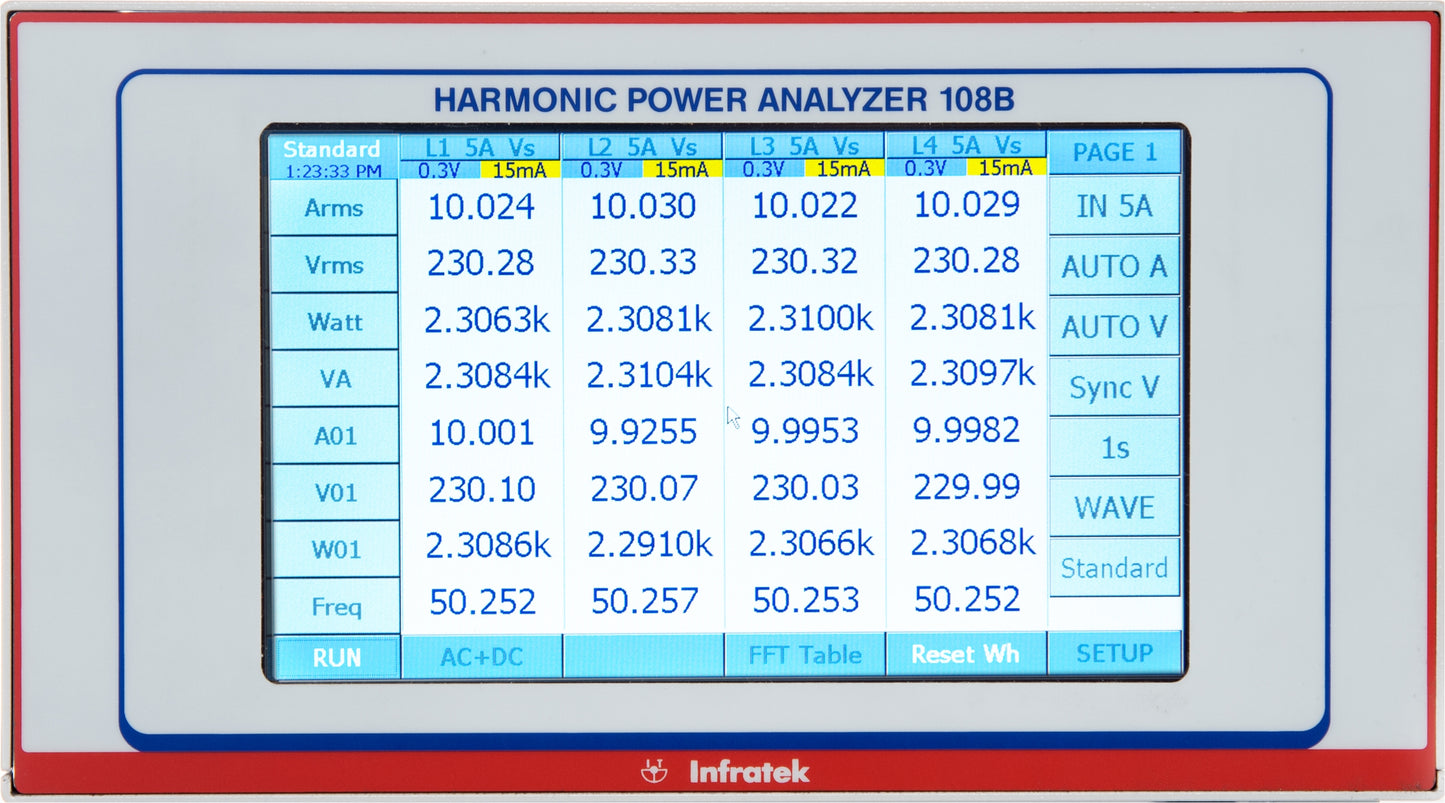

Infratek 108B-3 Harmonic Power Analyzer – Three Phase.

$ 16,750.00 CAD Sale

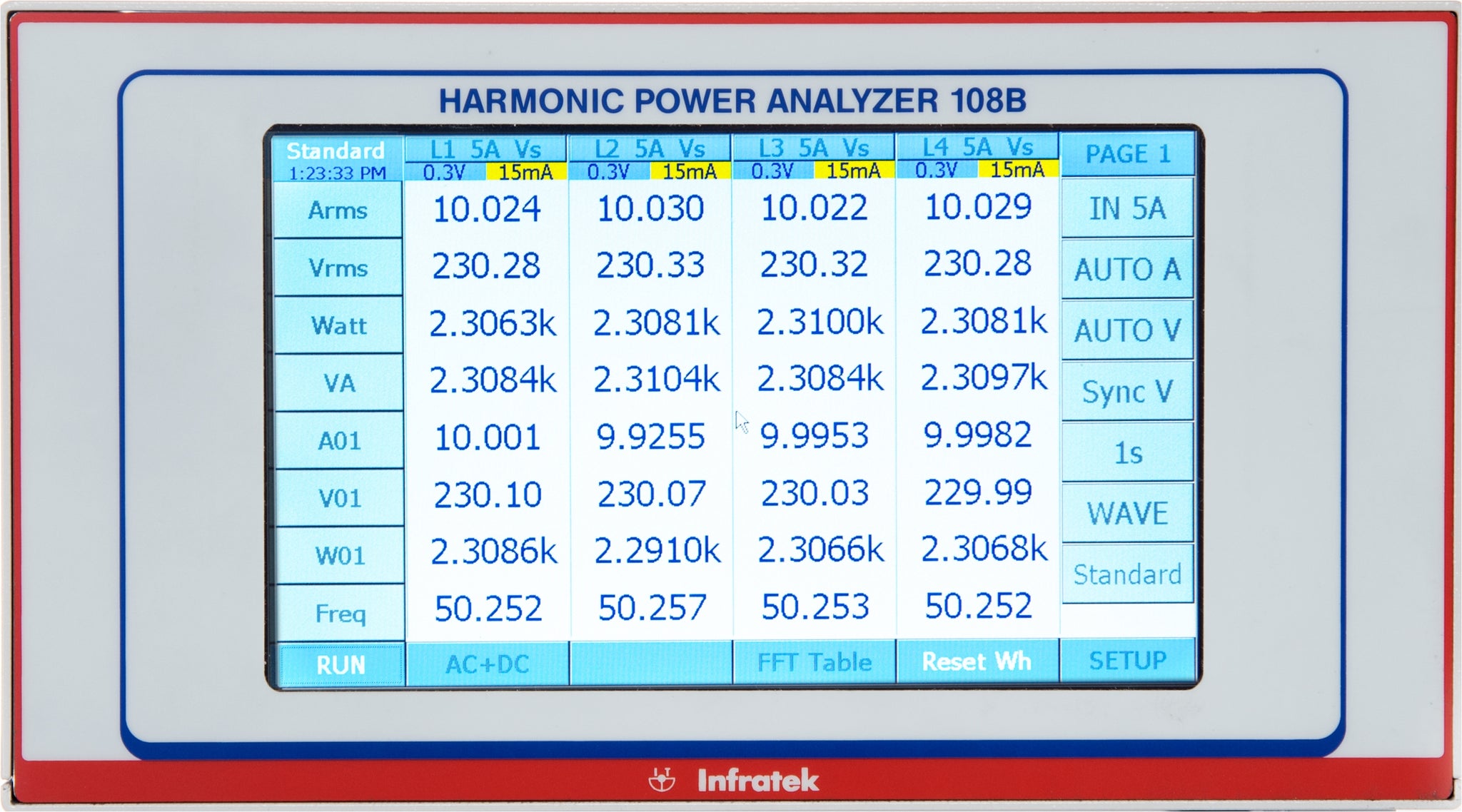

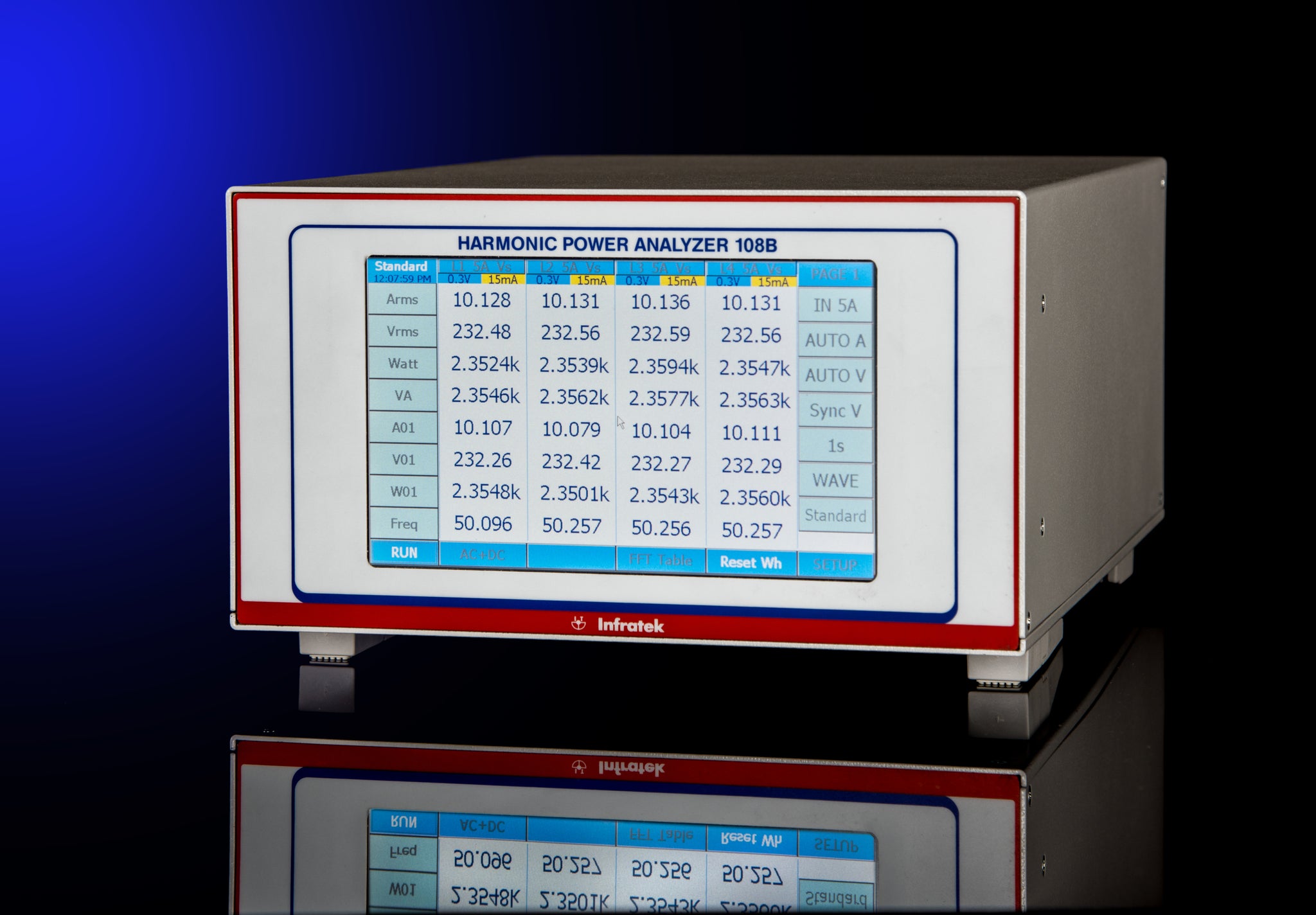

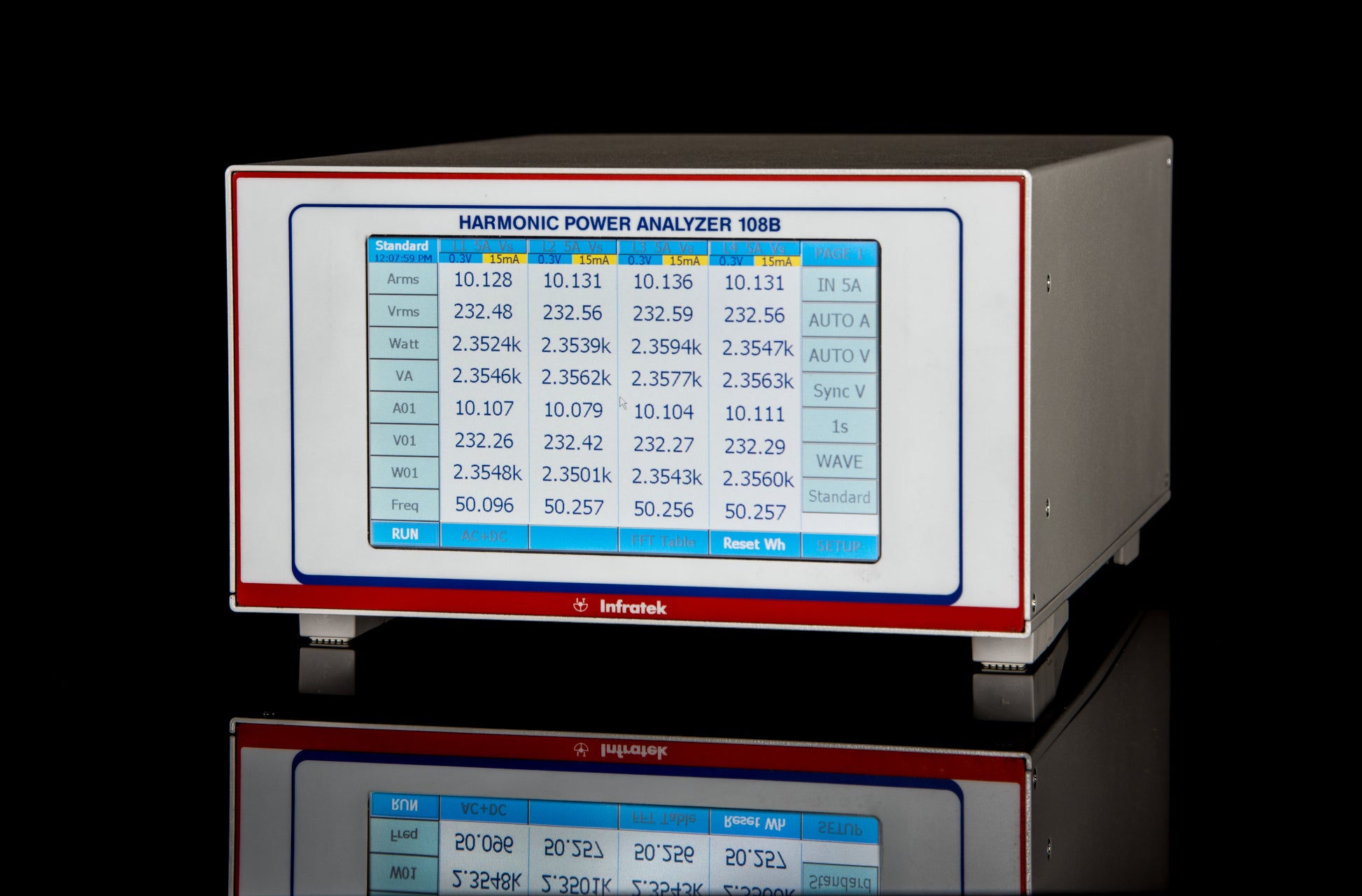

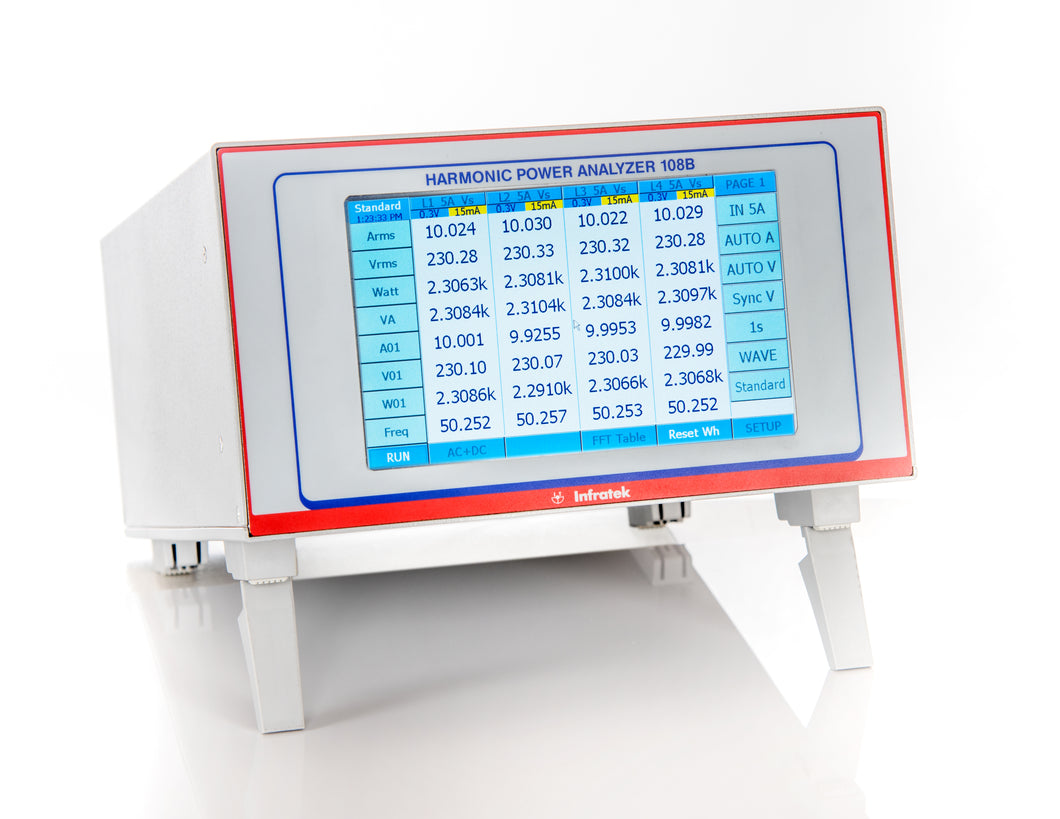

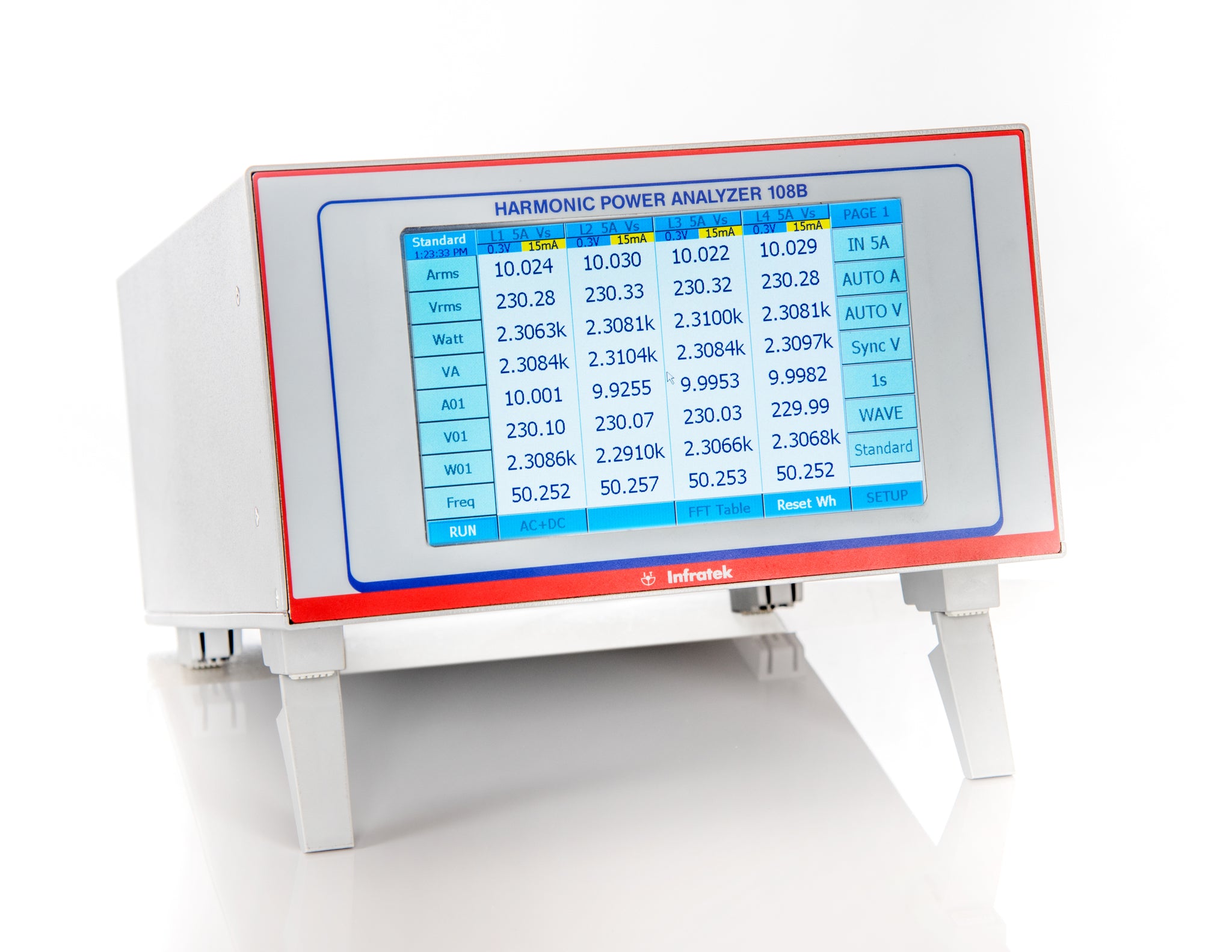

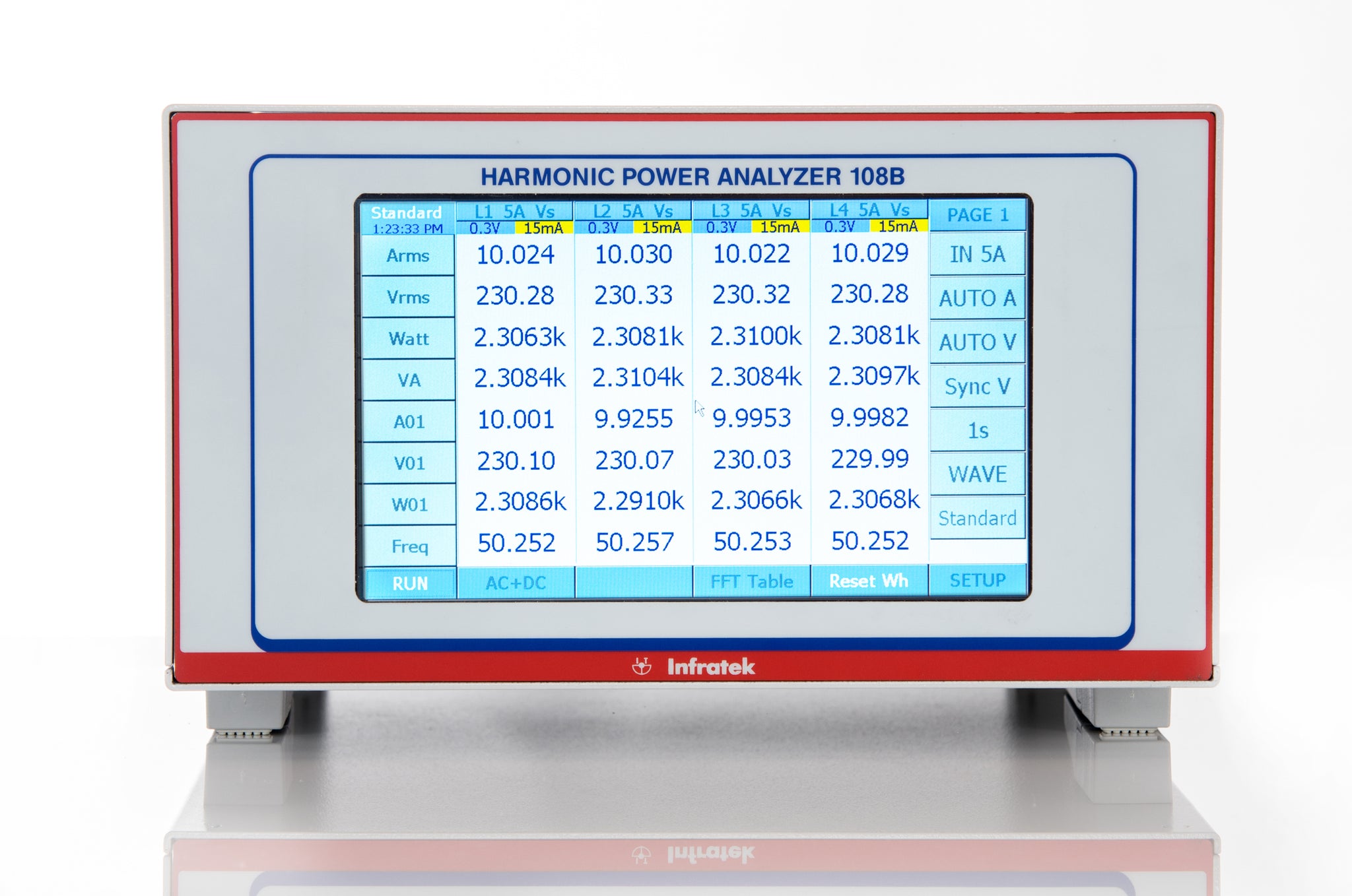

The Infratek 108B-3 is a high-end, Swiss-engineered three-phase power analyzer built for professionals in R&D, manufacturing, and power system testing. It is equipped with a responsive touchscreen, advanced measurement architecture, and four powerful measurement modes.

With the ability to measure over 280 electrical parameters per phase—plus harmonics, motor performance, and transformer behavior—it’s ideal for testing motors, drives, and inverters in three-phase systems. Modular, intuitive, and engineered for precision, the 108B-3 sets the standard for advanced power analysis.

Key Features:

  • Three-phase power analyzer

  • Accuracy options: ±0.1% or ±0.02%

  • Voltage input range: 0.3 V to 1000 V

  • Current input range: 50 μA to 40 A (supports external sensors to 700 A)

  • Bandwidth: DC to 2 MHz

  • 18-bit resolution

  • 280+ measured values per phase

  • 4 current inputs and full per-phase scaling

  • Touchscreen operation with 4 customizable display pages

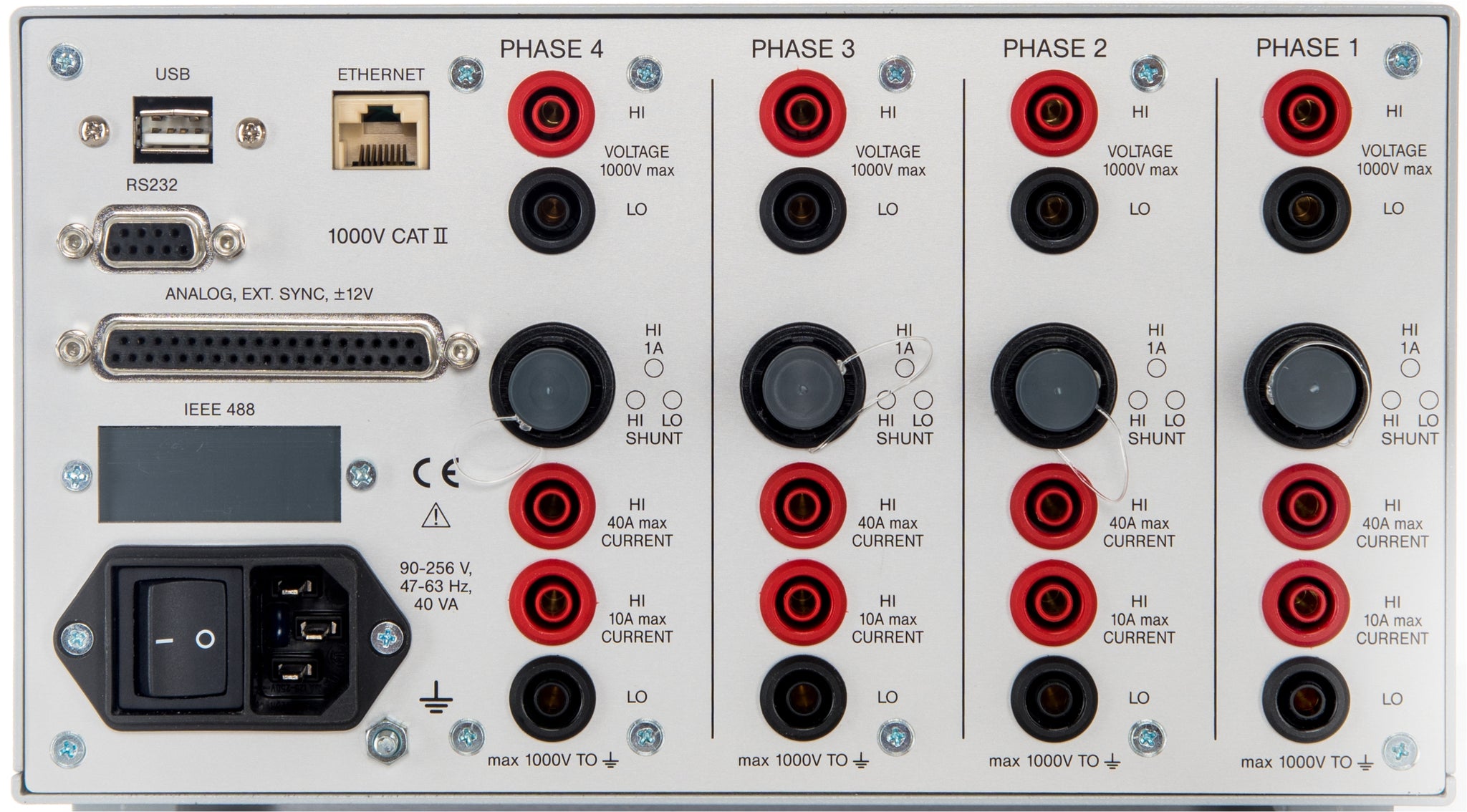

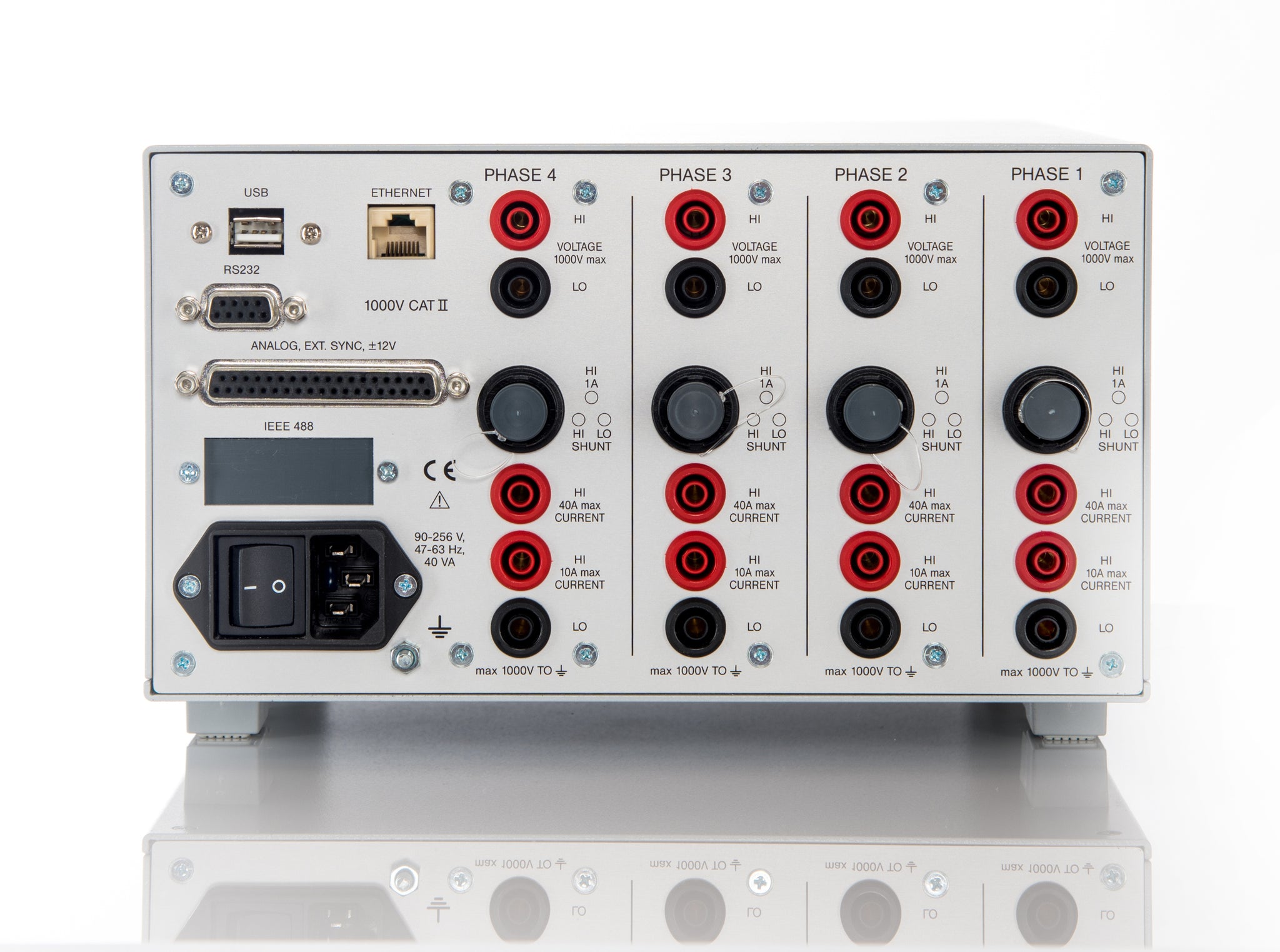

  • USB, Ethernet, RS-232, and optional IEEE-488 (GPIB)

  • Over 4 GB of internal data memory

Four Measurement Modes:

  • Standard Mode – Real-time tracking of harmonics, waveforms, energy, and power

  • Logging Mode – High-speed or long-duration measurement sets

  • Transient Mode – Visualize and zoom into startup and disturbance events

  • Power-Speed Mode – Correlate voltage, current, power, and shaft RPM in dynamic systems

Applications:

  • Inverter drive testing and efficiency measurement

  • Motor R&D and powertrain testing

  • Transformer evaluation and harmonics analysis

  • Industrial power electronics and automation

  • Renewable energy system verification

  • Electric vehicle performance studies

Software & Accessories:
Works with optional Windows software for automated test capture, waveform display, harmonic breakdown, and production line testing. Compatible with Infratek broadband current sensors up to 700 A.
