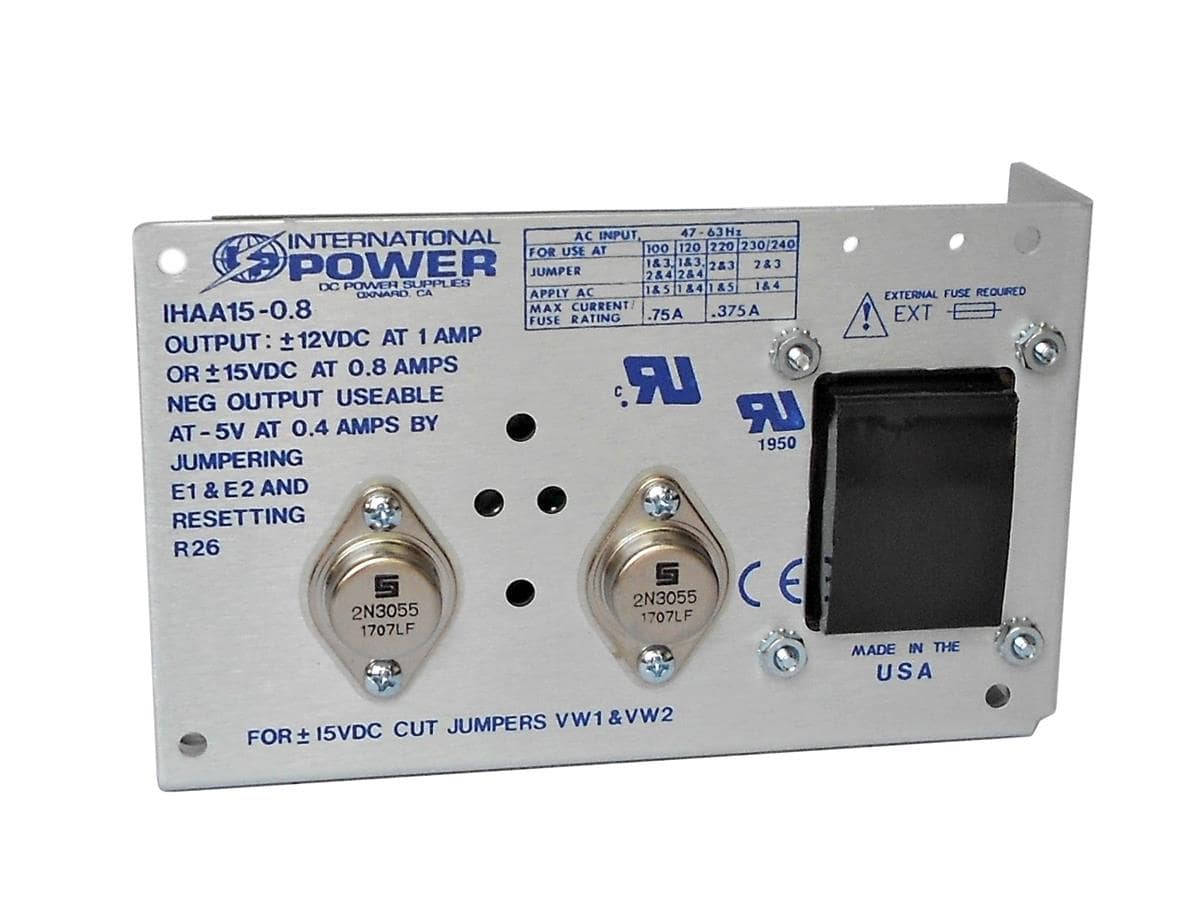

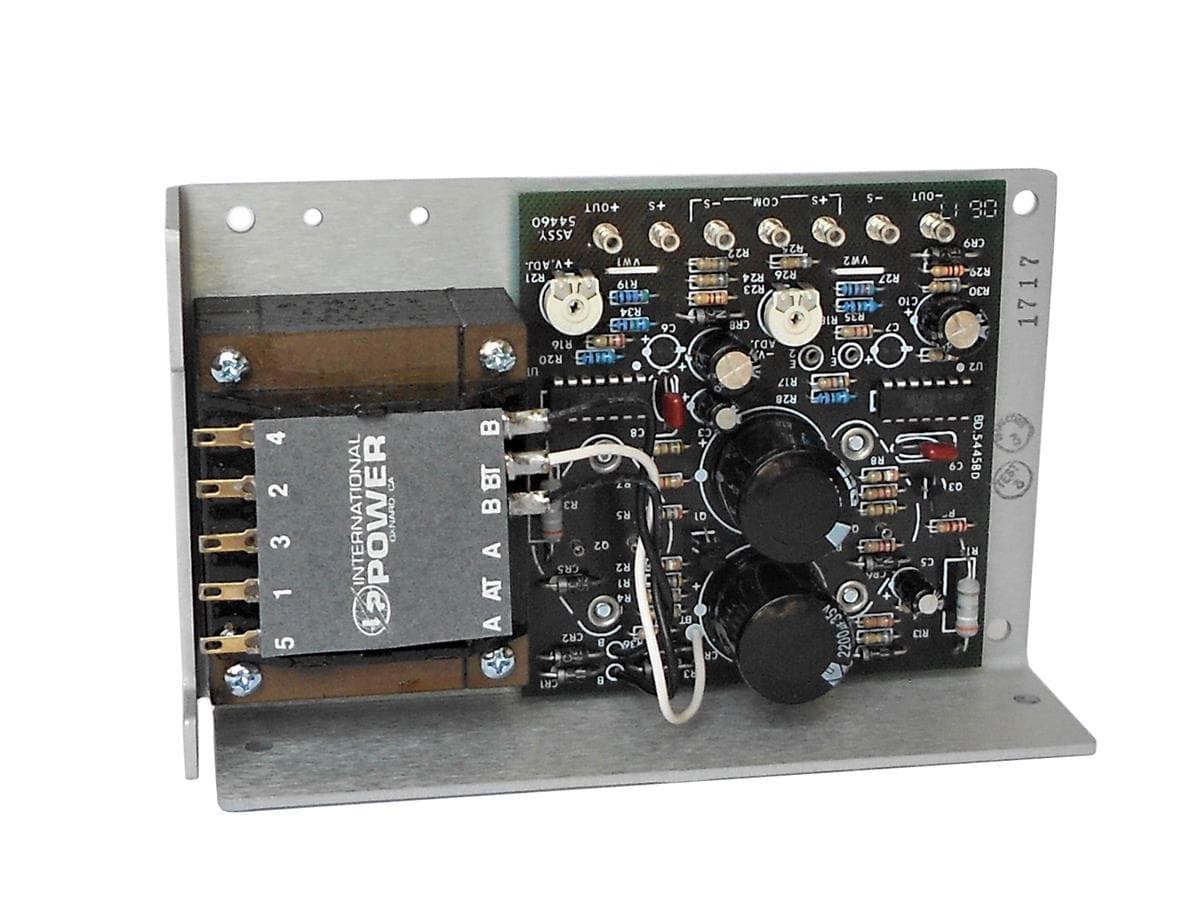

International Power - IHAA15-0.8 - Open Frame Power Supply

International Power

Linear Power Supplies, OPEN FRAME Series

Item# IHAA15-0.8 - Power Supply, Dual, +/-12/15VDC Out @ 1.0/0.8A, Linear, Regulated, Open, Dual Output, Common Ground

Specifications

Item Number: IHAA15-0.8

Brand:International Power

Item Category:Power Supplies

Subcategory:Linear

Series:OPEN FRAME

Power:12 Watts

Nominal Input VAC:120/240 Volts AC

Input VAC:100 to 240 Volts AC

Input Frequency:47 to 63 Hertz

Phase (Input):1

Nominal Output VDC:12/15

Output VDC:12;15/15

Output Current:1;0.8/1;0.8

Number of Outputs:2

Mounting:Panel

Enclosure:No

Encapsulated:No

Input Volts-Autoranging:No

Output Voltage Adj.:Yes`

Overvoltage Protection:No

Overload Protection:Yes

Short Circuit Protection:Yes

Power Factor Correction:No

Parallel Operation:No

Remote Sensing:Yes

Remote On/Off Control:No

Efficiency %:55 Percent

Operating Temperature:122 Degrees F

Approvals:UL,CUL,CE,TUV

H x W x D:4 in x 6.5 in x 2.1 in

Net Weight:2 lb

Gross Weight:2 lb 8 oz
