International Power - IHB200-0.12 - Open Frame Power Supply
International Power - IHB200-0.12 - Open Frame Power Supply

International Power - IHB200-0.12 - Open Frame Power Supply

Regular price $ 148.00 CAD Sale

International Power

Linear Power Supplies, OPEN FRAME Series

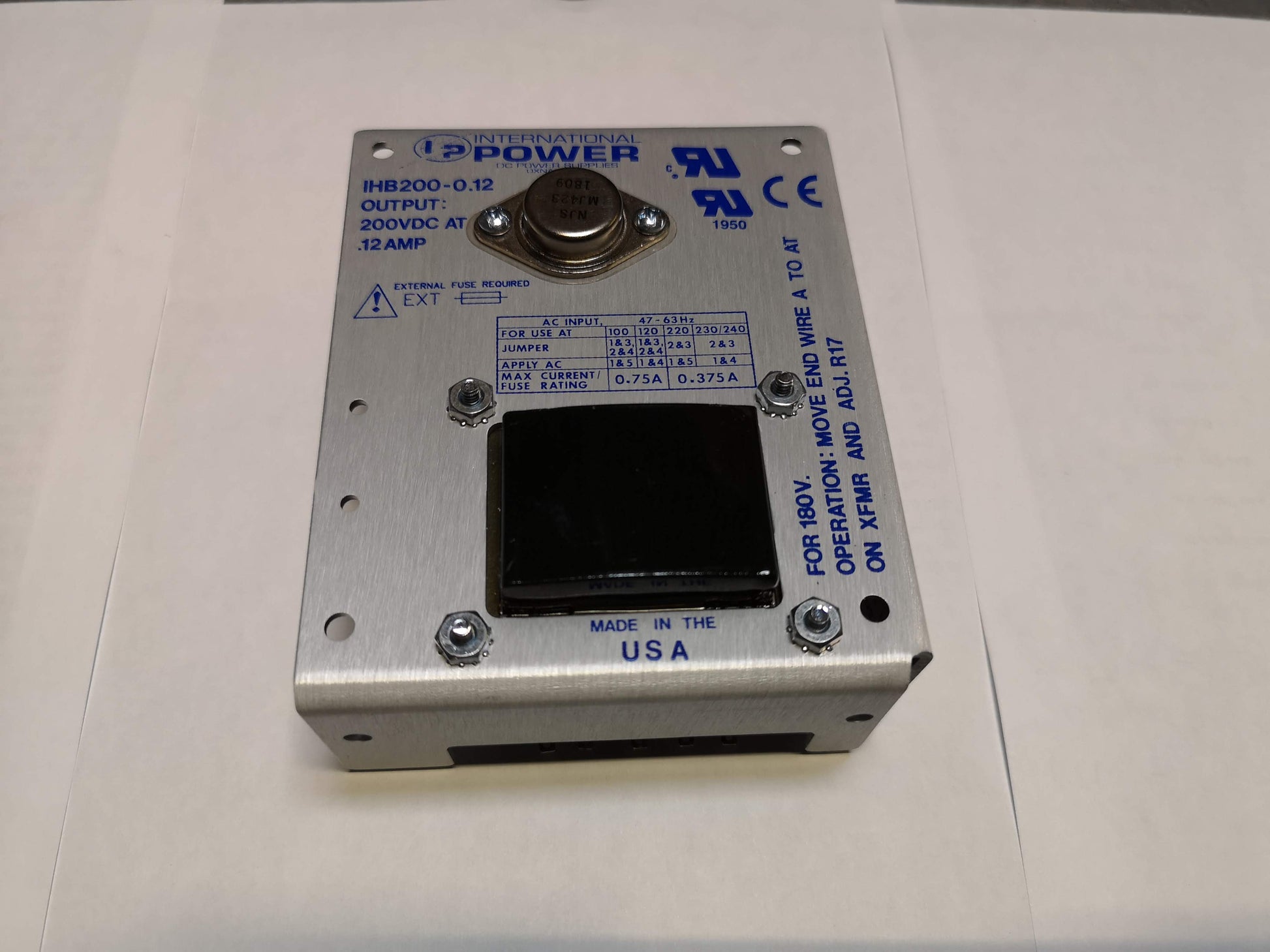

Item# IHB200-0.12 - POWER SUPPLY, 175-210V @ 0.12A LINEAR, REGULATED, OPEN

OPEN FRAME Series Information

1 to 4 Outputs

5~265 VDC Outputs Available

Up to 50 Amp Output Available

100~240 VAC Inputs Available

CE, UL and C-UL Approvals

The International Power Open Frame series are a high reliability line of regulated open frame linear DC power supplies designed to operate over the wide range of AC power sources found worldwide. This feature simplifies inventory and service consideration by allowing the use of one standard power supply regardless of destination. These models are designed to meet many domestic and international regulatory agency requirements.

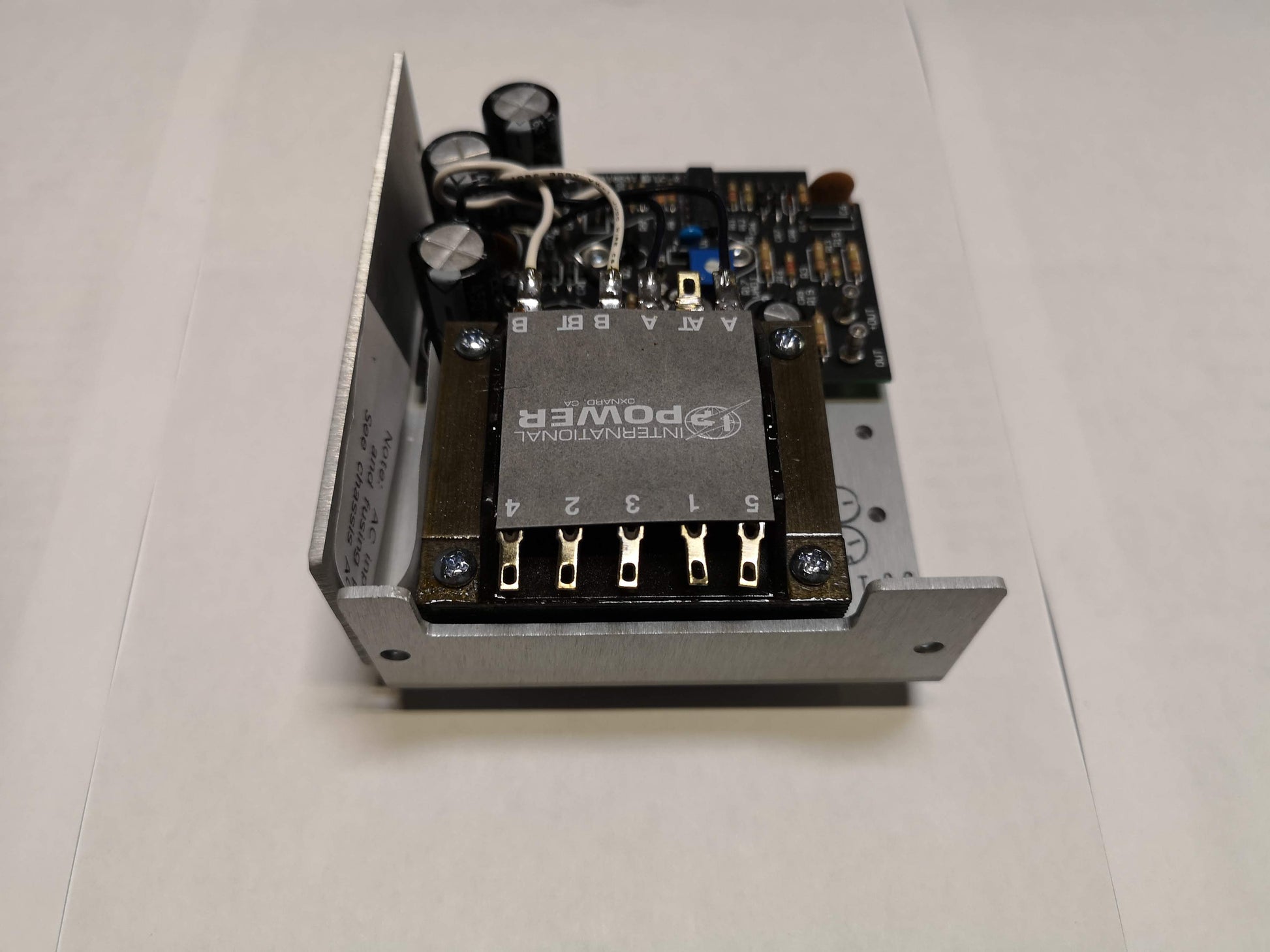

Open Frame Design

Remote Sense On Most Outputs

Full Rated to 122 Degrees F

Very Low Output Ripple

Low Noise Levels

Specifications

Item Number: IHB200-0.12

Brand:International Power

Item Category:Power Supplies

Subcategory:Linear

Series:OPEN FRAME

Nominal Input VAC:120/240 Volts AC

Input VAC:100 to 240 Volts AC

Input Frequency:47 to 63 Hertz

Phase (Input):1

Output VDC:175~210

Output Current:0.12

Number of Outputs:1

Mounting:Panel

Enclosure:No

Encapsulated:No

Input Volts-Autoranging:No

Output Voltage Adj.:Yes

Overvoltage Protection:No

Overload Protection:Yes

Short Circuit Protection:Yes

Power Factor Correction:No

Parallel Operation:No

Remote Sensing:No

Remote On/Off Control:No

Efficiency %:60 Percent

Operating Temperature:122 Degrees F

Approvals:UL,CUL,CE,TUV

H x W x D:4 in x 4.87 in x 2.1 in

Net Weight:2 lb
