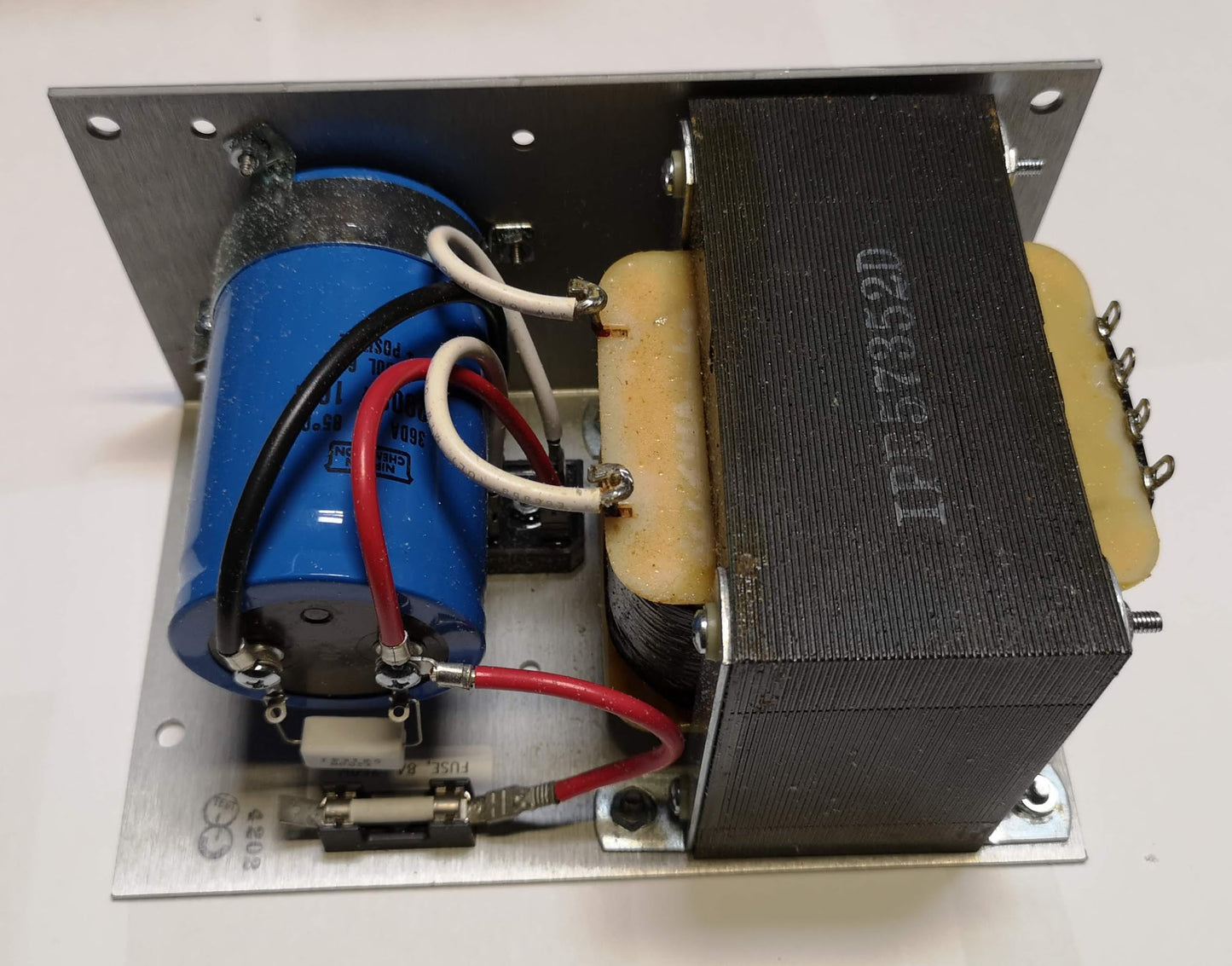

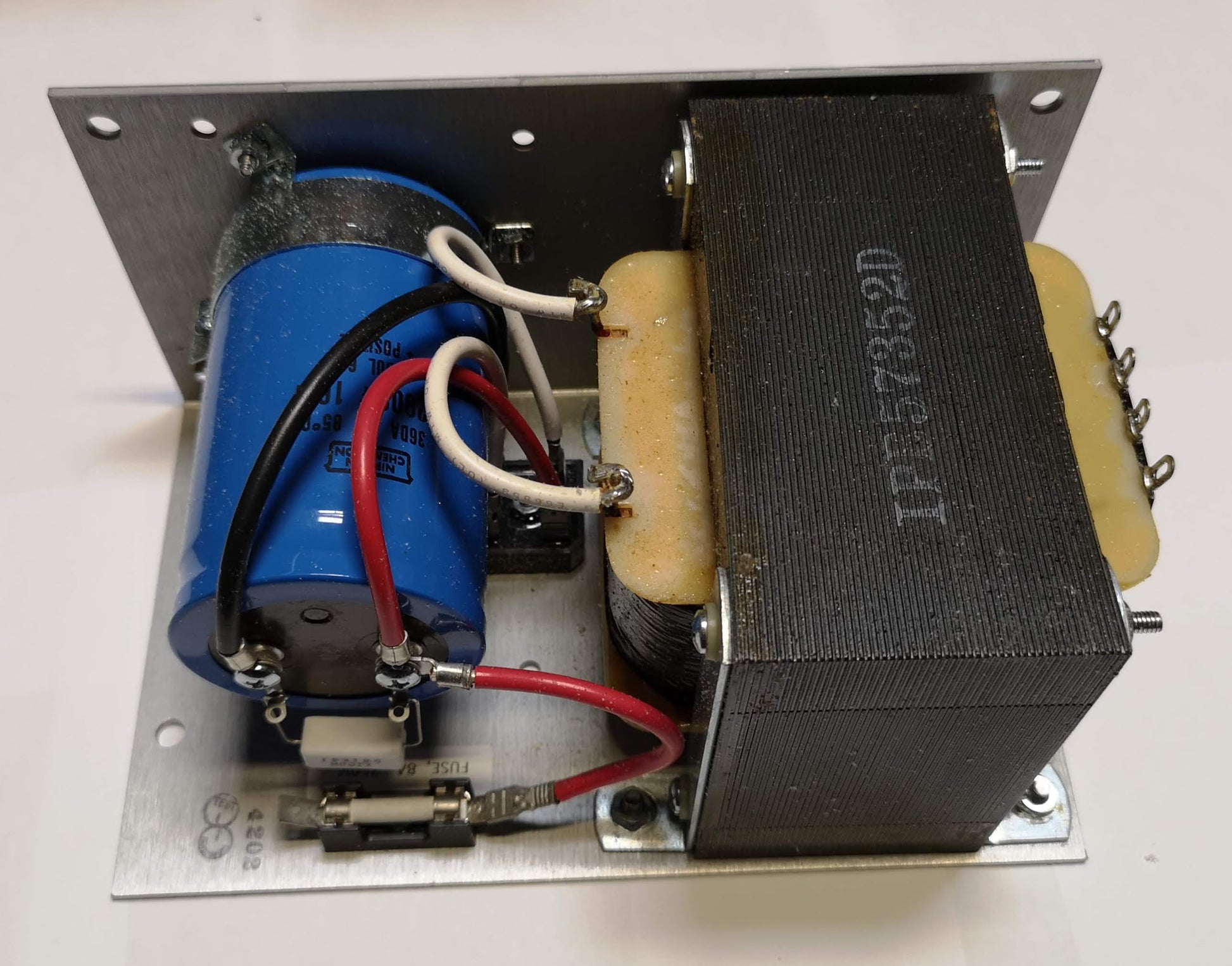

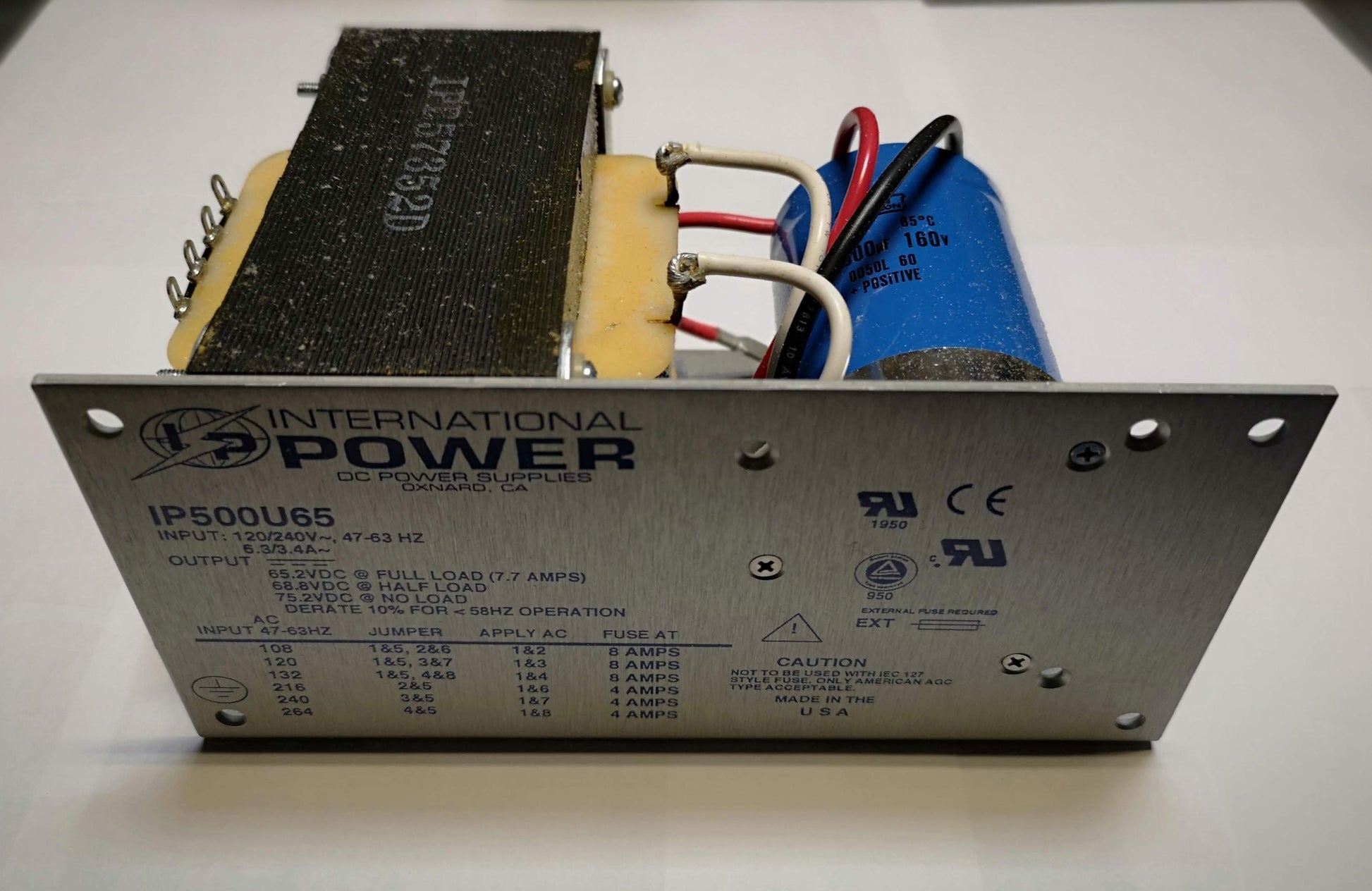

International Power - IP500U65 - Open Frame Power Supply
International Power - IP500U65 - Open Frame Power Supply

International Power - IP500U65 - Open Frame Power Supply

Regular price $ 423.79 CAD $ 339.02 CAD Sale

International Power

Unregulated Power Supplies, IP500U Series

Item# IP500U65 - Power Supply, 65VDC, 7.7A, 500W, Linear, Open, Unregulated Output

IP500U Series Information

Single Output

12~75 VDC Outputs Available

Up to 30 Amp Output

108~264 VAC Inputs Available

CE, UL and C-UL Approvals

The IP500U series unregulated power supply line is designed for high current applications at low cost when full regulation is not required. This rugged, highly reliable power supply line is ideal for applications such as powering solenoids, relays, DC motors, lamps and DC‑DC converters.


Full Rated to 151 Degrees F

Open Frame Construction

Other Voltage Values Available on Special Order

Secondary Fuse Protection

Specifications

Item Number: IP500U65

Brand:International Power

Item Category:Power Supplies

Subcategory:Unregulated

Series:IP500U

Power:500 Watts

Nominal Input VAC:120/240 Volts AC

Input VAC:108/120/132/216/240/264 Volts AC

Input Frequency:47 to 63 Hertz

Phase (Input):1

Nominal Output VDC:65

Output VDC:65.2

Output Current:7.7

Number of Outputs:1

Mounting:Panel

Enclosure:No

Encapsulated:No

Input Volts-Autoranging:No

Output Voltage Adj.:No

Overvoltage Protection:No

Overload Protection:Yes

Short Circuit Protection:No

Power Factor Correction:No

Parallel Operation:No

Remote Sensing:No

Remote On/Off Control:No

Efficiency %:80 Percent

Operating Temperature:131 Degrees F

Approvals:UL,CUL,CE,TUV

Comments:Overload protection is provided by a secondary fuse.

H x W x D:5.62 in x 9 in x 4.62 in

Net Weight:18 lb

Gross Weight:11.608 OZ
