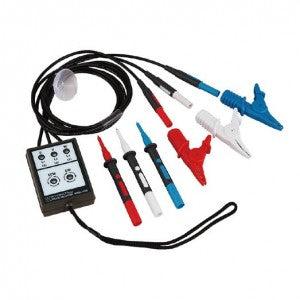

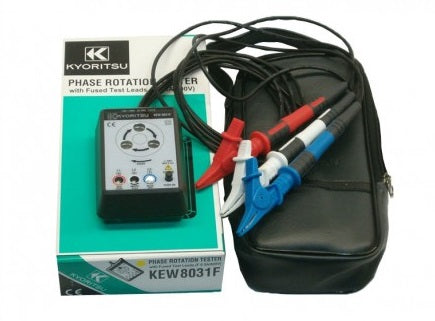

KEW8031F(CSA approved) Phase Indicator with Fused Test Leads – Duncan Instruments Canada Ltd
KEW8031F(CSA approved) Phase Indicator with Fused Test Leads
KEW8031F(CSA approved) Phase Indicator with Fused Test Leads
KEW8031F(CSA approved) Phase Indicator with Fused Test Leads

KEW8031F(CSA approved) Phase Indicator with Fused Test Leads

$ 400.00 CAD $ 319.00 CAD Sale

  • CSA Approved
  • Two functions in one unit - Phase Sequence & Open Phase Indicator
  • Highly Reliable - 3-phase power source from 110V to 600V
  • Functional Design - Small, Lightweight and portable.
  • Safe Design - No exposed metal parts
  • Safety standard IEC 61010-1 CAT.III 600V

 Technical Specifications

Standard IEC61010-1 CAT. III 600V Pollution degree 2
Voltage: 110~600V AC
Duty Cycle: Continuous to 500V , Max. 5 Minutes from 500V to 600V
Frequency: 50/60Hz
Withstand Voltage: 5500V AC for 1 min.
Dimensions: 4.24"H x 3"W x 1.6"D (106 x 75 x 40mm)
Weight: 350g approx.
Fuse 0.5A/600V (F)
Accessories Instruction Manual, Carrying Case
