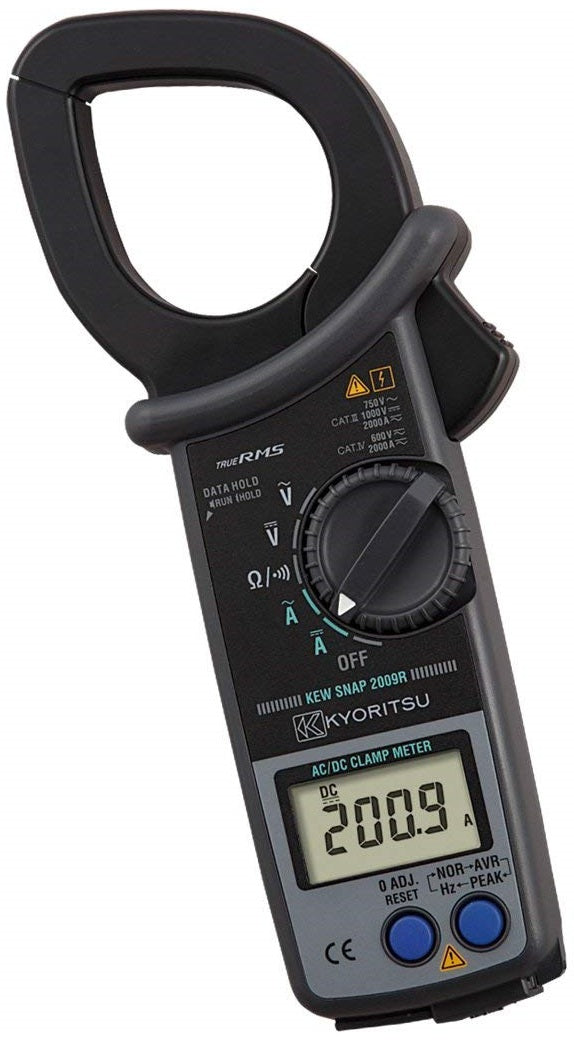

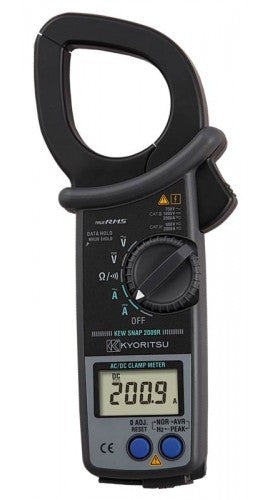

Kyoritsu 2009R AC/DC Clamp Meter, 2000A/1000V CAT IV
Kyoritsu 2009R AC/DC Clamp Meter, 2000A/1000V CAT IV
Regular price
$ 567.00 CAD
Regular price
$ 634.00 CAD
Sale price
$ 567.00 CAD
Quantity
Couldn't load pickup availability
- CAT IV Clamp Meter can measure the Voltage and Current in both very low and high power circuits.
- Accurate True RMS reading of AC current or voltage with distorted waveform.
- Can measure AC and DC currents up to 2000A.
Specifications:
| AC A | 400.0/2000A ±1.3%rdg±3dgt (0 - 400.0A, 150 - 1700A) (45 - 66Hz) ±2.0%rdg±5dgt (0 - 400.0A, 150 - 1700A) (20Hz - 1kHz) ±2.3%rdg±3dgt (1701 - 2000A) (45 - 66Hz) |
|---|---|
| DC A | 400.0/2000A±1.3%rdg±2dgt |
| AC V | 40.00/400.0/750V ±1.0%rdg±3dgt (45 - 66Hz) ±1.5%rdg±5dgt (20Hz - 1kHz) |
| DC V | 40.00/400.0/1000V±1.0%rdg±2dgt |
| Ω | 400.0/4000Ω ±1.5%rdg±2dgt (Electronic protection (no fuse) up to 600V) |
| Continuity buzzer | Buzzer sounds below 20Ω |
| Hz | 10.0 - 4000Hz±1.5%rdg±5dgt (Input sensitivityCurrent: more than 40AVoltage: more than 10V) |
| Conductor size | Ø55mm max. |
| Output | Recorder : DC400mV against AC/DC400.0A DC200mV against AC/DC2000A |
| Applicable standards | IEC 61010-1 CAT IV 600V, CAT III 1000V Pollution degree 2 IEC 61010-031, IEC 61010-2-032, IEC 61326-1, IEC 61326-2-1 |
| Power source | R6 (1.5V) × 2 |
| Dimensions | 250(L) × 105(W) × 49(D)mm |
| Weight | Approx. 540g (including batteries) |
| Included Accessories | 7107A (Test leads), 9094 (Carrying case) R6 (AA) (1.5V) × 2, Instruction Manual |
| Optional Accessories | 7256 (Output cord) |

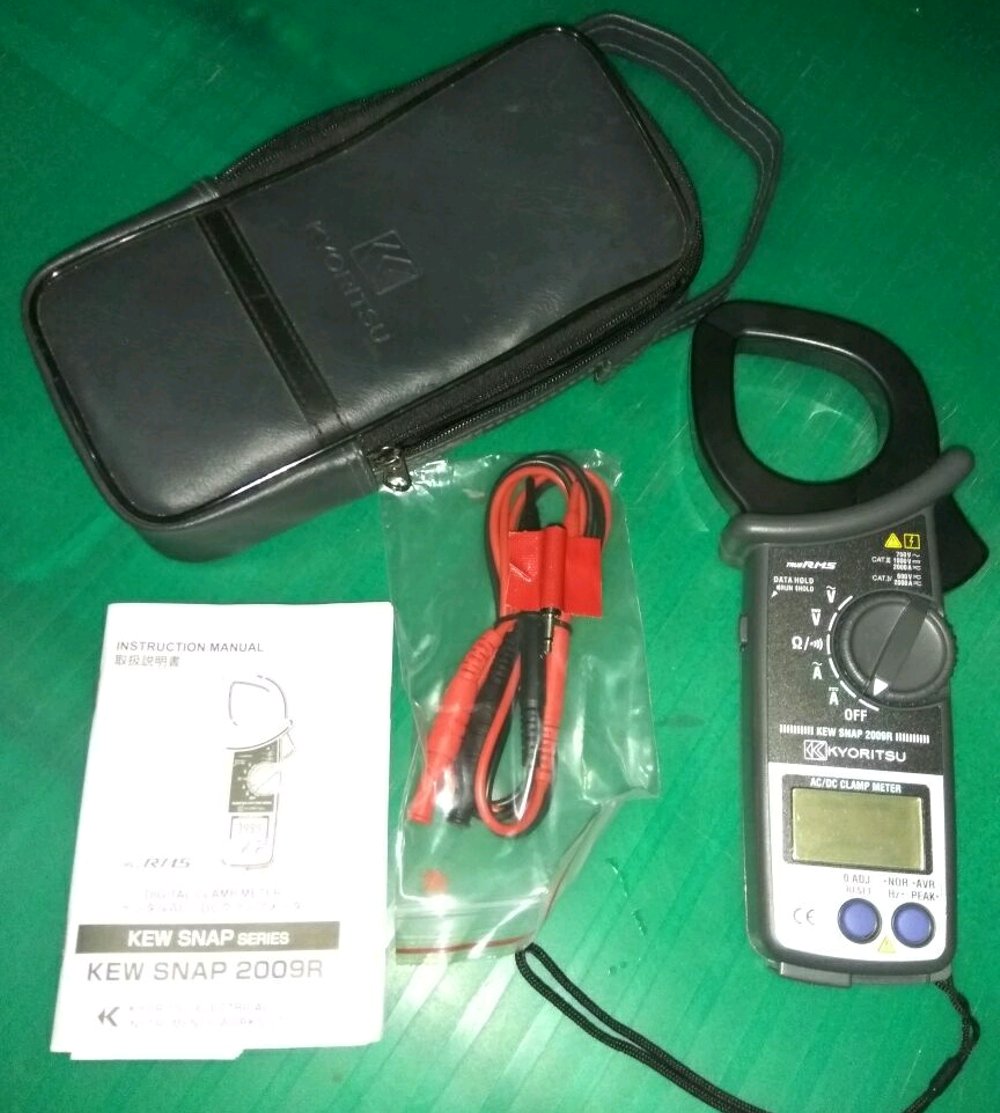

Included with the Kyoritsu 2009R
- Digital Clamp Meter
- 7107A Test Leads
- 8201 Output Plug
- 9094 Carrying case
- 2 x R6 (AA 1.5V) batteries
- Instruction Manual
