Kyoritsu

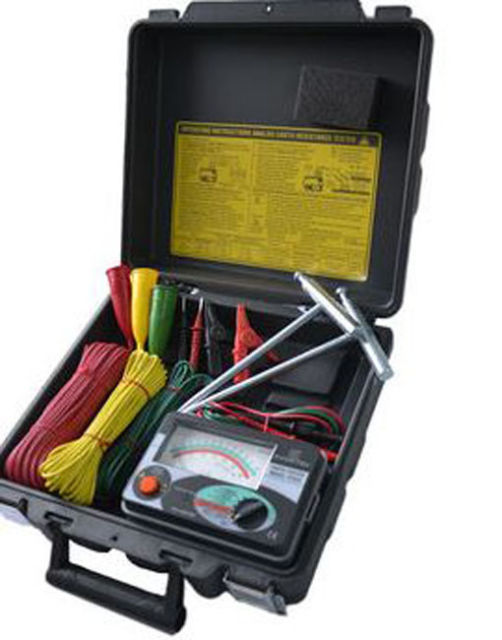

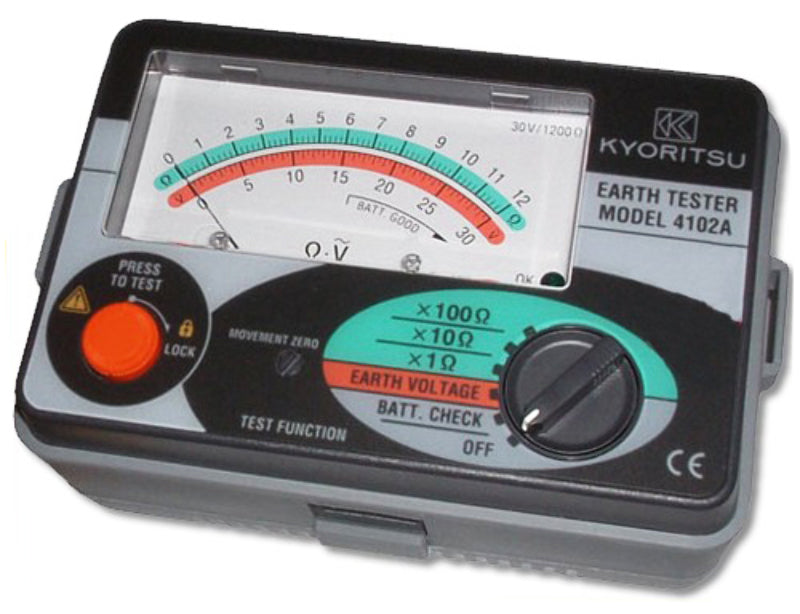

KYORITSU 4102A-H Analogue Ground Resistance Tester, 1200Ω, with case
KYORITSU 4102A-H Analogue Ground Resistance Tester, 1200Ω, with case
Regular price
$ 626.84 CAD
Regular price
$ 712.60 CAD
Sale price
$ 626.84 CAD
Quantity
Couldn't load pickup availability
- The latest circuit design permits the instrument to operate with the minimum of influence from earth voltage and earth resistance of auxiliary earth spikes.
- Dust and drip proof. (designed to IEC 529 IP54)
- Earth resistance value can be read directly from the scale.
- Designed to meet IEC 61010-1 safety standard.
- Capable of measuring earth voltage.
- Small and lightweight. Shock resistant new case material.
- 2mA measuring current permits earth resistance tests without tripping earth leakage current breakers in the circuit under test.
- Lead wire connection to C and P terminals and proper auxiliary earth resistance can be checked by "OK" lamp.
- Lead wire connection to C and E terminals is good when "OK" lamp is illuminated.
Specifications:
| Measurement Ranges | Earth Resistance: 0 to 12Ω / 0 to 120Ω / 0 to 1200Ω Earth Voltage (50,60Hz): 0 to 30V AC |
| Accuracy | Earth Resistance: ±3% of full scale Earth Voltage: ±3% of full scale |
| Overload Protection | Earth Resistance: 276V AC for 10 seconds across 2 of the 3 terminal Earth Voltage: 276V AC for 1 minute |
| Safety Standard | IEC 61010-1 CAT III 300V Pollution Degree 2, IEC 61557 |
| Applicable Standards | IEC 60529 IP54 |
| Withstand Voltage | 3700V AC for 1 minute |
| Power Source | R6 (AA) (1.5V) x 6 |
| Dimensions | 105(L) x 158(W) x 70(D)mm |
| Weight | 600g approx. |
Download
Compare to
- Kyoritsu 4102A 2/3 Pole Earth Resistance Tester
- Kyoritsu 4102A-H Analogue Ground Resistance Tester, 1200Ω
