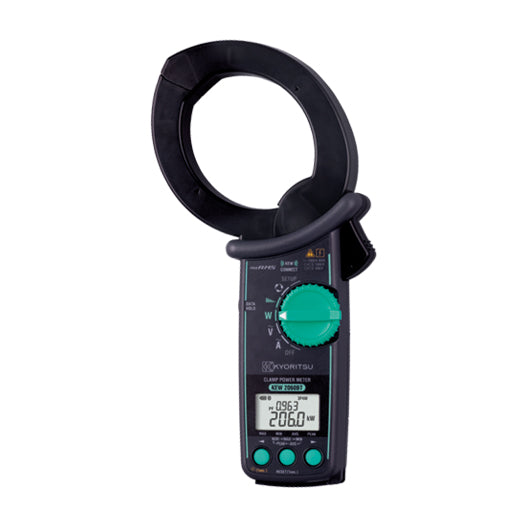

Kyoritsu KEW 2060BT Clamp Power Meter

High-Precision Power Analysis in the Palm of Your Hand — with Bluetooth® Connectivity

The KEW 2060BT is a compact clamp power meter designed to simplify three-phase load testing, power consumption measurement, and harmonic analysis—all with the convenience of wireless data transfer. Whether you're troubleshooting on-site or performing routine inspections, this meter provides fast, accurate, and actionable results.

What It Does

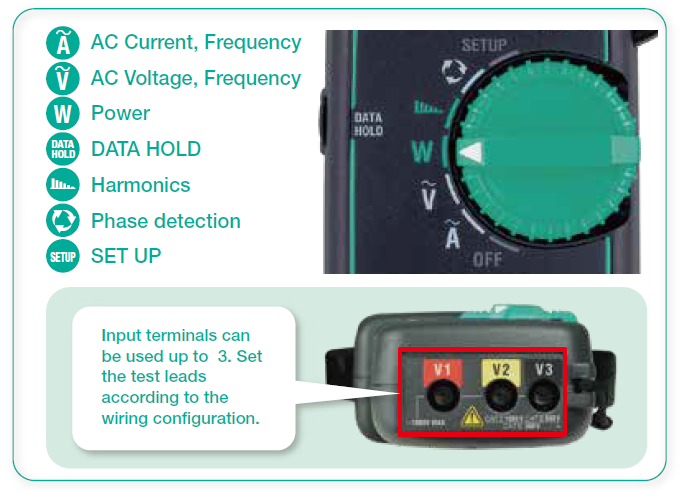

The KEW 2060BT measures AC/DC voltage and current, frequency, power (active, reactive, apparent), energy, power factor, and total harmonic distortion (THD). Its wide jaws accept conductors up to 55mm, making it ideal for commercial and industrial installations.

Who It’s For

Perfect for electricians, facilities maintenance teams, and engineers who need a portable and powerful power meter for load monitoring, energy audits, or service troubleshooting.

Why It’s Better

• True RMS Measurement – Ensures accuracy on complex waveforms.

• Large Backlit Display – Easy to read even in dim environments.

• Bluetooth® Data Transfer – Use the KEW Smart app to log data and create reports on the go.

• CAT IV 600V / CAT III 1000V Safety Rated – Engineered for demanding electrical environments.

Key Specifications:

• Current Range: 0.0 – 1000A AC/DC

• Voltage Range: 0.0 – 1000V AC/DC

• Power Measurements: Active (kW), Reactive (kVAR), Apparent (kVA)

• Frequency Range: 40Hz – 1kHz

• THD and Harmonics: Up to 25th order

• Display: Large triple display with backlight

• Jaw Opening: Max 55mm

• Memory: Up to 1000 data sets

• Communication: Bluetooth® with KEW Smart App

• Power Supply: AA batteries ×4

• Safety Rating: IEC61010-1 CAT IV 600V / CAT III 1000V
